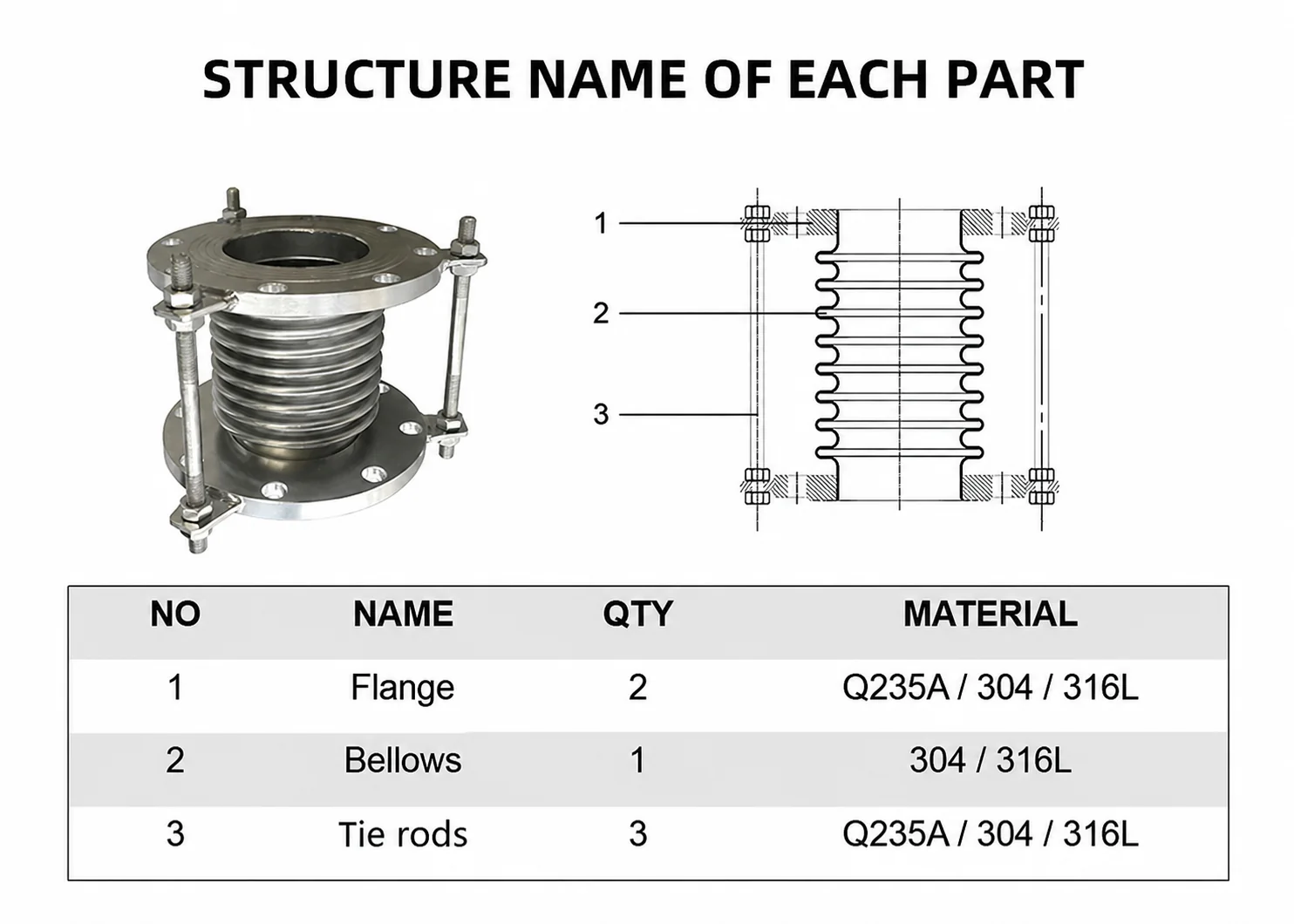

Tie Rod Stainless Steel Bellows Expansion Joint Flange Flexible Pipe Connector
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberBEJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-

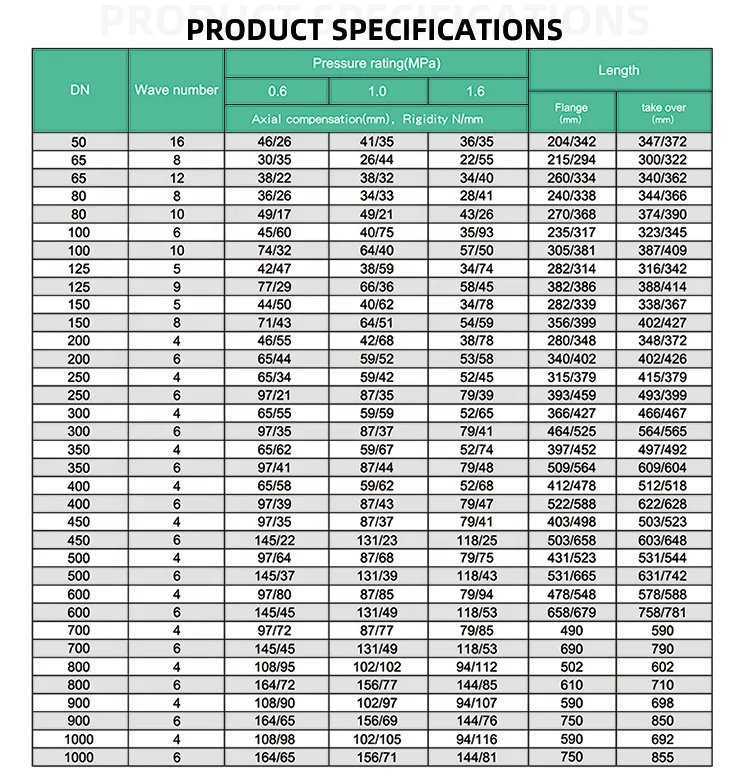

Product nameTie Rod Stainless Steel Flange Bellows Expansion JointWorking PressurePN10 - PN40
-
Maximum Temperature-10℃ - +300℃Applicable mediaWater, hot water, steam, oil, air, etc
-
Flange StandardsANSI, DIN, JIS, etcNominal diameterDN50 - DN3000
-
Flange materialStainless steel 304, 316,etc.Bellows materiaStainless steel 304,316,etc.
-
Axial compention dosage± 3.5 mmManufacturerYes, factory add: Gongyi City,China
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
