Blind Flanges for Planned Shutdown Replacement
Your shutdown window is easier to protect when the replacement has been checked before it reaches the site. We start with the existing joint and the approved closure requirement, then review the blind flange configuration. A photograph can help identification, while dimensions and design records close the important gaps.
Send your project details
Recover a dependable interface record
Older parts do not always retain a readable identification. Use the available markings, drawings and site measurements together. We help organise the missing supply details so your team can confirm the replacement requirement, without treating an old photograph as proof of size, class or material.
- Existing recordsDrawings and markings
- Site dimensionsMeasured mating interface
- Missing fieldsClearly identified before quotation

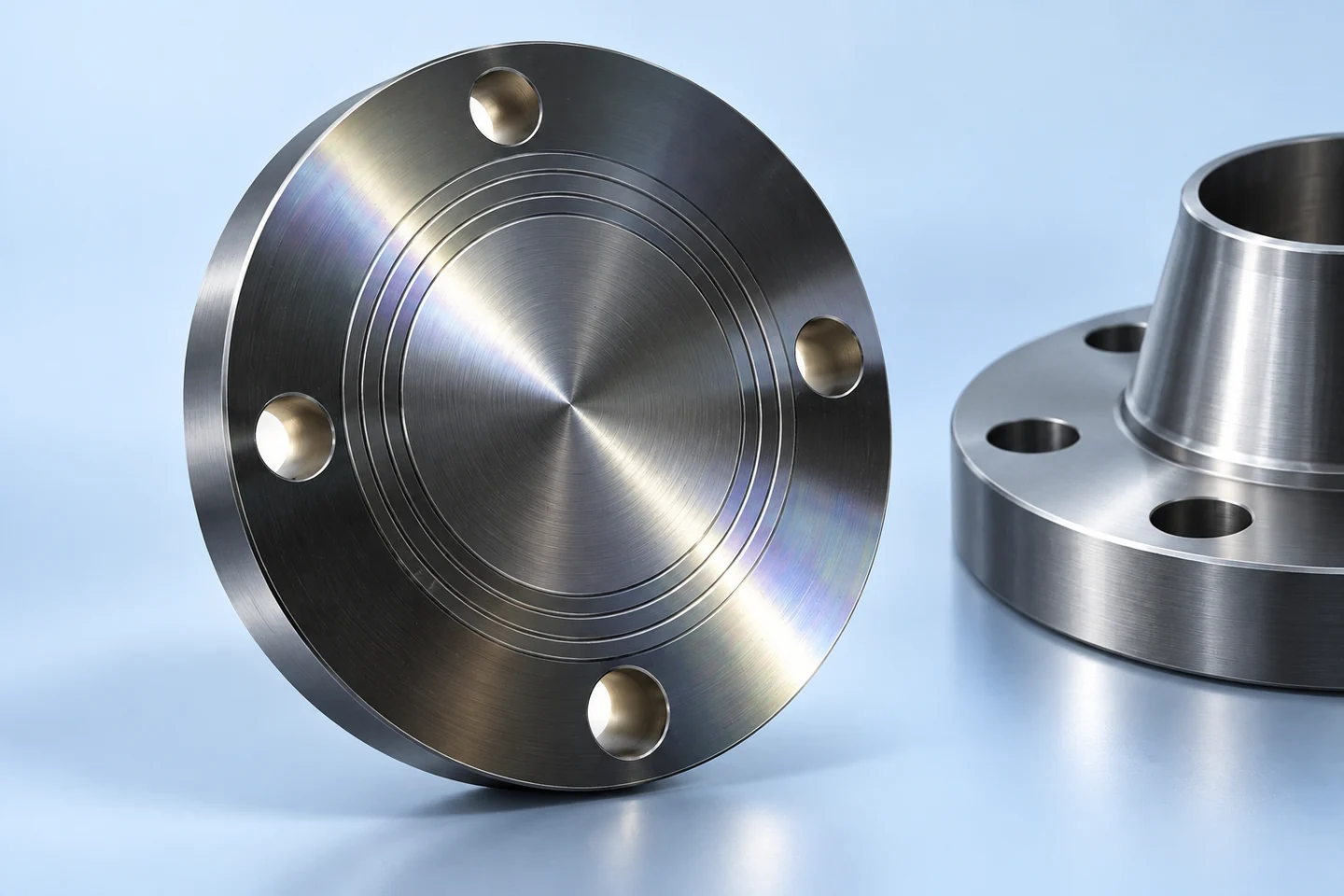

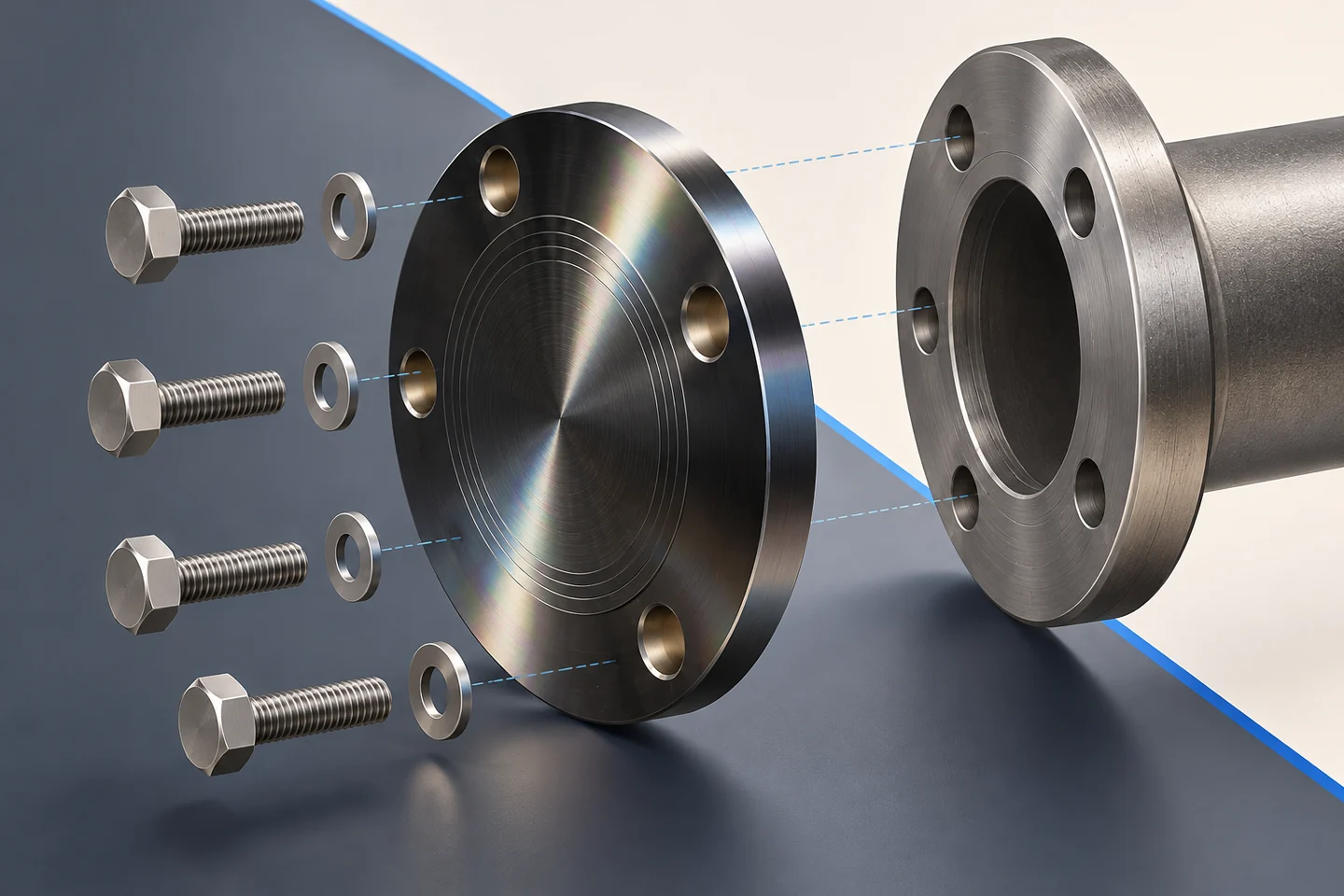

The sealing face and drilling must agree
The replacement needs to match the actual mating flange. Facing, hole pattern and installation geometry stay together in the review. We retain your approved dimensions and identify any mismatch before the order progresses, giving your receiving team the same comparison basis used for the quotation.

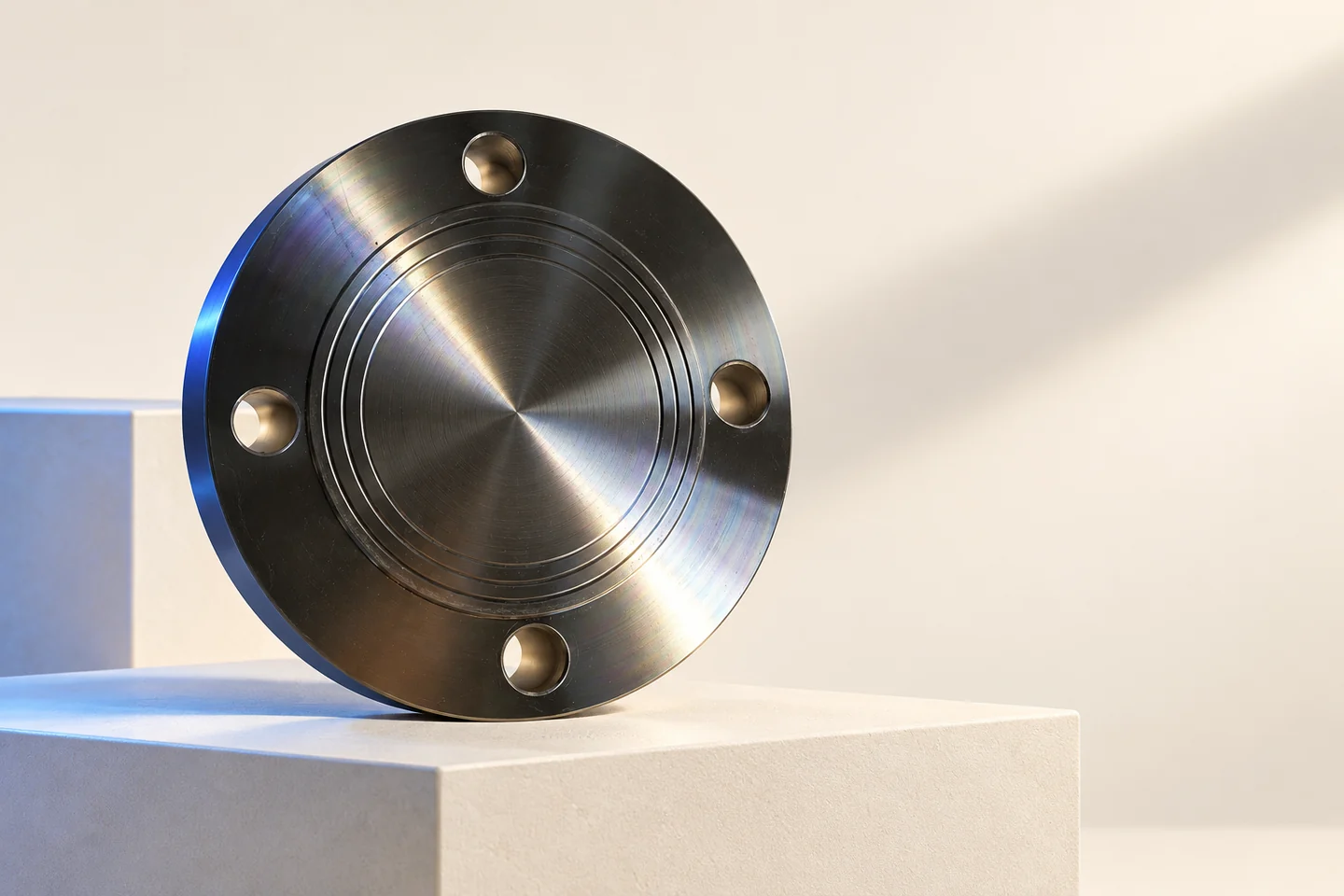

Material and thickness have separate approval
Copying the old outline does not establish the required material or closure thickness. We work from your approved design requirements and keep any uncertain catalogue wording out of the final purchase definition. A proposed alternative is returned for technical approval before it is treated as acceptable.
Catalogue reference. The approved specification defines the supplied configuration.The closure duty is clearly defined
A permanent closure, a maintenance arrangement and a site isolation procedure have different responsibilities around them. We define the supplied component against your approved specification. Your engineering and operating teams retain the isolation and system decisions, while our quotation states the component and document scope.
- Your teamDefine the closure and isolation duty
- Our reviewConfirm the supplied component
- Shared recordRetain scope and exceptions
Measured dimensions before the outage
The useful dimensional report lets your site team compare the replacement with the approved interface. We agree the relevant diameter, drilling, facing and thickness checks. Results belong to the actual supplied item, so a familiar product name does not have to carry the acceptance decision.

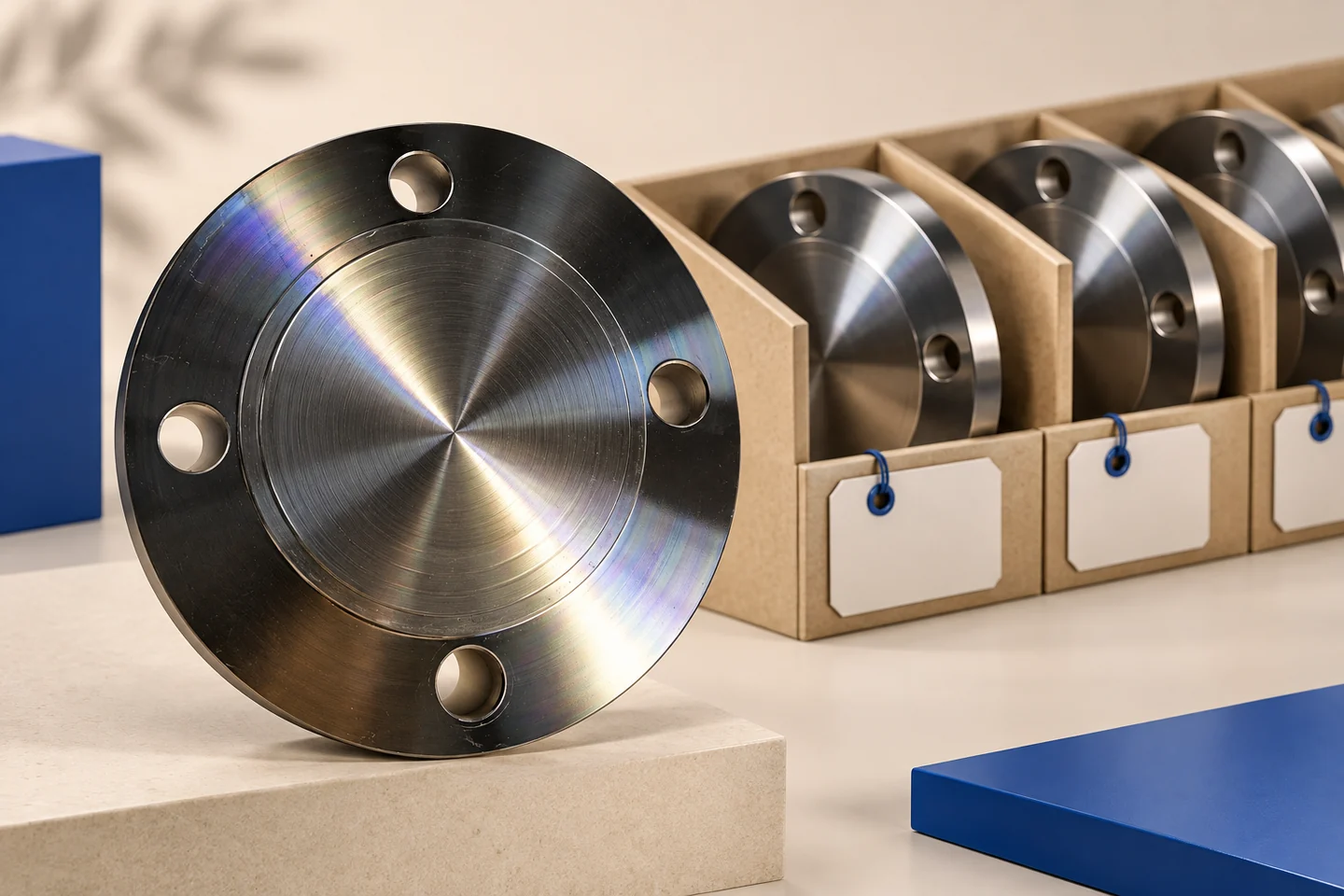

A check before dispatch and receipt
The sealing face and identification deserve attention both before shipment and at arrival. We agree the inspection and protection requirements with your order. Your team then has a clear list for receiving checks, including the evidence to retain if damage or an interface discrepancy appears.
- Before dispatchAgreed dimensions and identity
- ProtectionSealing-face requirements
- On arrivalCondition and record check
- ExceptionPhotos and item reference
The shutdown plan stays connected to approval
You provide the approved interface and the outage need date. We review the supply configuration, document requirements and delivery basis. Together, we identify the points that must close before release, keeping a requested schedule separate from an unconfirmed lead-time promise.
- YouConfirm interface and site schedule
- WeReview supply and document scope
- TogetherClose release conditions
A replacement reference for the next outage
Once the accepted configuration is documented, a future enquiry can start from the same drawing and item reference. We use that baseline for repeat review and highlight proposed changes. Your team keeps the final connection and service approval with the site record.
A clear start for your quotation
Send the mating-flange drawing or measurements, available markings and photographs, material and rating requirements, closure duty, quantity and outage schedule. We can then review the replacement configuration and identify the records needed before release.
Send your project details- SendDrawing, item list and requirements
- ReviewConfiguration, open points and records
- AgreeTechnical scope and commercial basis
