Stainless Steel Flange 8 Inch Corrugated Flexible Metal Hose Bellows Compensator Metal Expansion Joints
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.

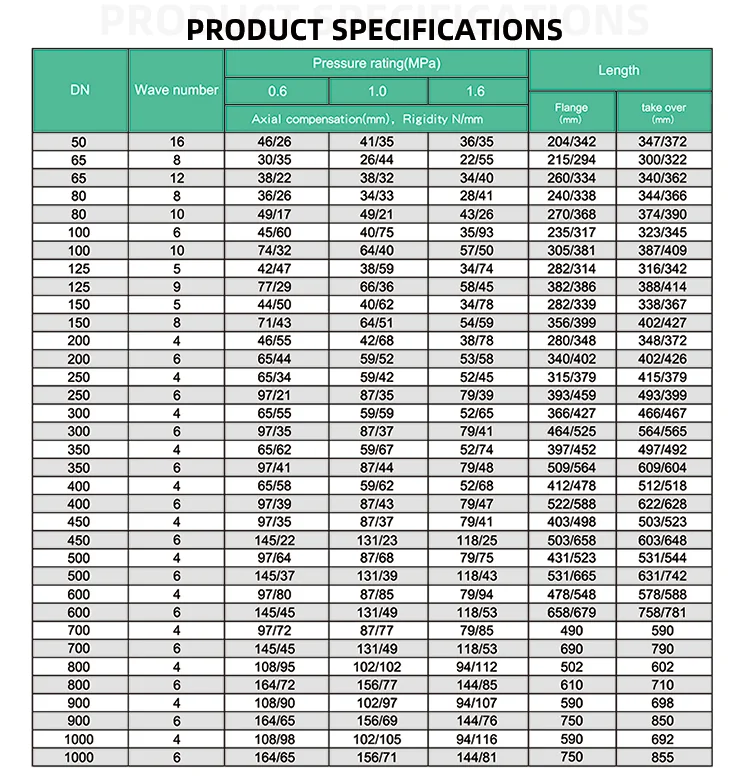

Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberBEJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-
Applicationplumbing & water supply, natural gas & petroleum industry, oil & gas industry, water supply and drainage systems, petrochemical industryProduct nameStainless Steel 304/316 Metal Bellows Expansion Joint
-
Working PressurePN10 - PN40Maximum Temperature-10℃ - +300℃
-
Applicable mediaWater, hot water, steam, oil, air, etcFlange StandardsANSI, DIN, JIS, etc
-
Nominal diameterDN50 - DN3000Flange materialStainless steel 304, 316,etc.
-
Bellows materiaStainless steel 304,316,etc.Axial compention dosage± 3.5 mm
-
ManufacturerYes, factory add: Gongyi City,China
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
All technical resourcesChoose the product-family route that matches your question.
Drawings and tolerancesOrganize dimensions, units, datums and critical features.
Inspection recordsPlan what must be checked and how results can be recorded.
Supplier evaluationReview capability, communication, traceability and repeatability.
RFQ to deliveryFollow the requirement through quotation, sample and order planning.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
