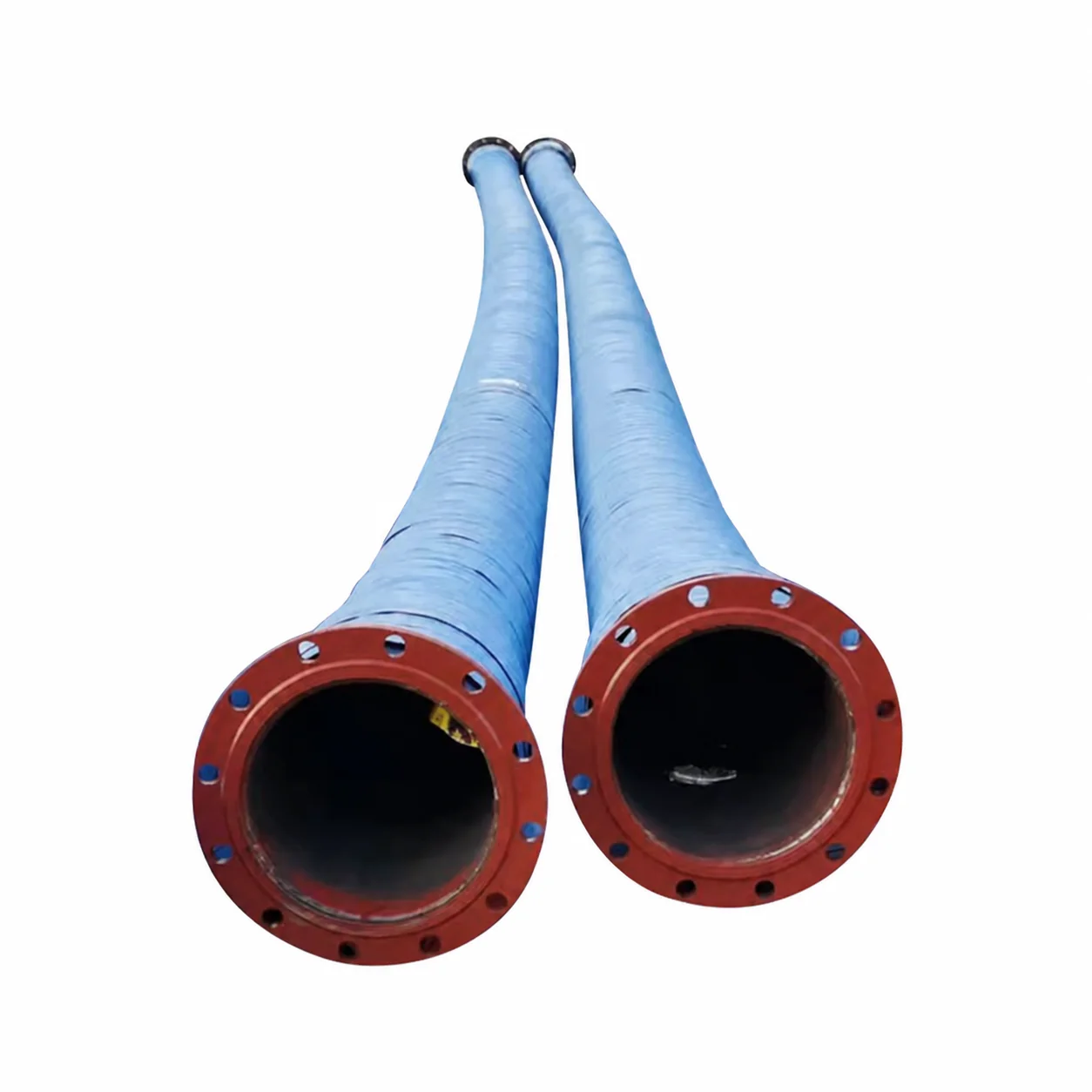

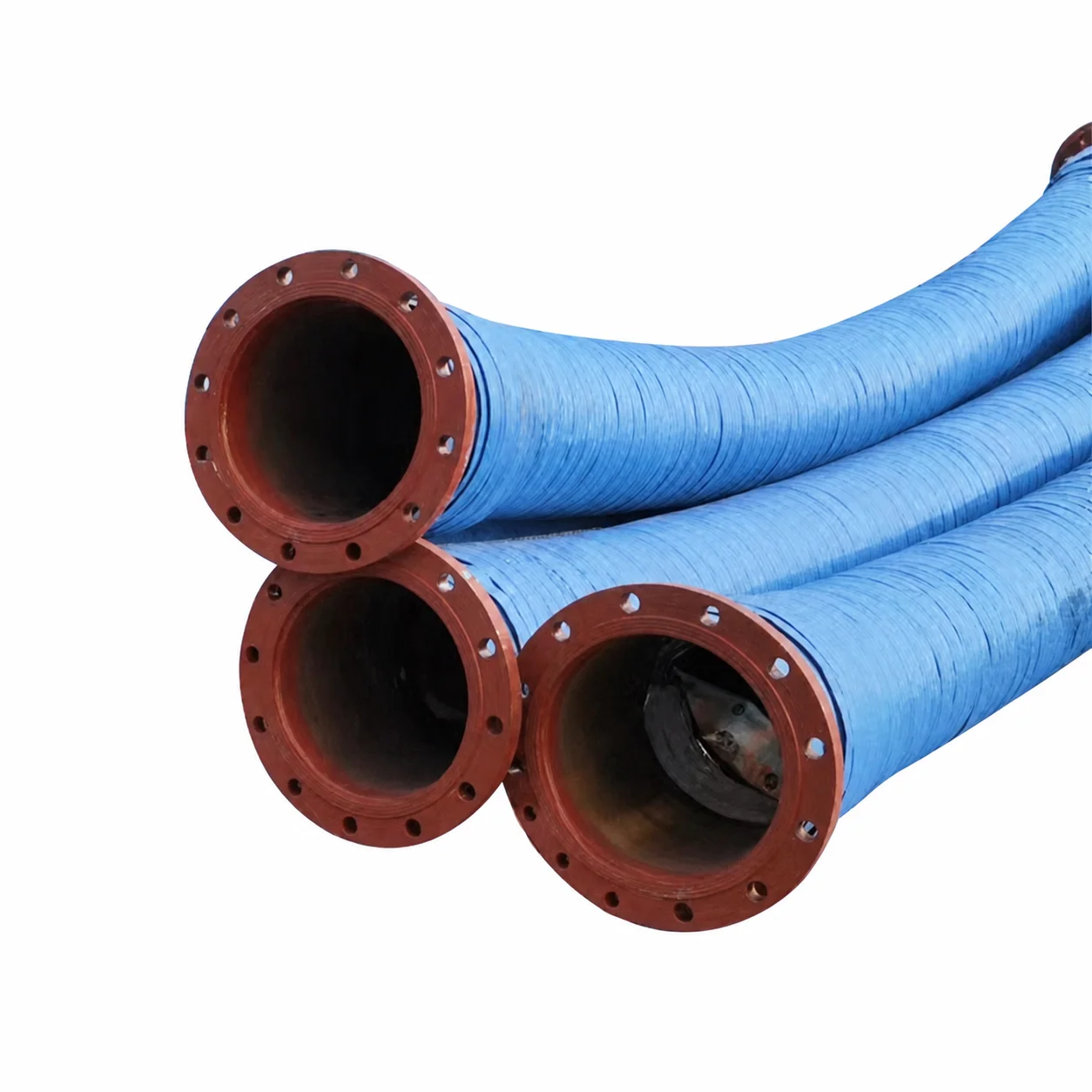

Mud Suction Flange Suction Rubber 20" Od Discharge Hose
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
Wall ThicknessAccording to pipeline requirementsProcessing ServiceMoulding, Cutting
-
Working Temperature-40°C ~120°CModel NumberFRH
-
Product namemud suction flange suction rubber 20" od discharge hoseSize1/2inch - 20inch
-
Working pressure< 25 barsWorking temperature-40 ~ +120 ℃
-
Length of each unit<50mMaterial of rubberNR,NBR,EPDM,CR and etc
-
Material of flangeQ235B carbon steel paintReinforcement layerSteel Wire Sprial
-
ApplicationWater irrigation, mud dredging, water sunction etcPackingPlastic Belt Packing
