Axial Pipe Duct Compensator SS304 Flange Compensator Bellow Metal Expansion Joint
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberBEJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentCleaning Supplies
-
PressureLow PressureMounting hole diameterAccording to requirements
-

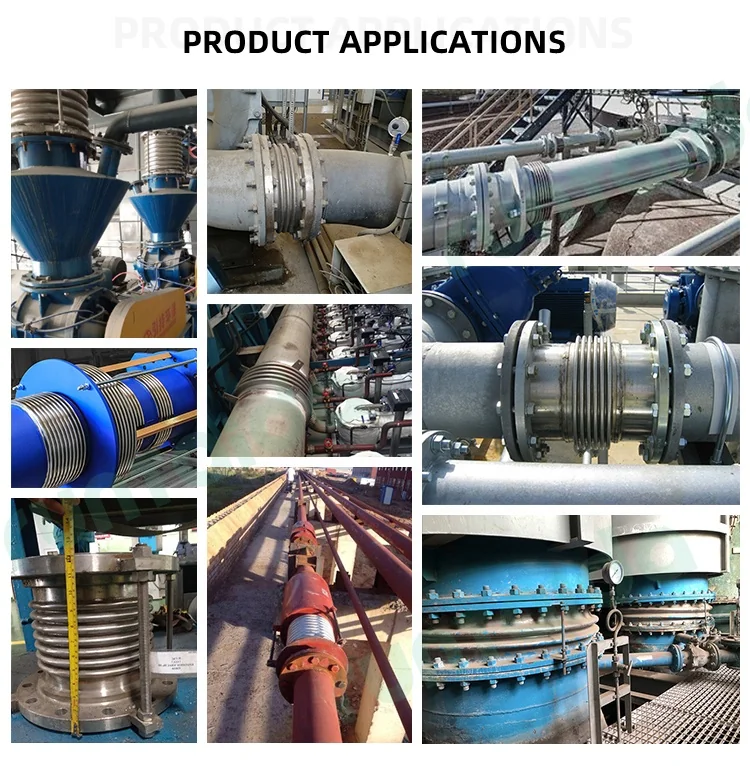

Pipe ClassAccording to requirementsApplicationwater supply and drainage systems
-
Product nameCompensator SS304 Flange Compensator Bellow Metal Expansion JointWorking PressurePN10 - PN40
-
Maximum Temperature-10℃ - +300℃Applicable mediaWater, hot water, steam, oil, air, etc
-
Flange StandardsANSI, DIN, JIS, etcNominal diameterDN32 - DN3000
-
Flange materialStainless steel 304, 316,etc.Bellows materiaStainless steel 304,316,etc.
-
Axial compention dosage± 3.5 mmManufacturerYes, factory add: Gongyi City,China
