Stainless Steel 304 / 316 / 316L 90° BSPT DIN Elbow Enquiry
産業調達向け
明確なRFQを準備
RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。
- 図面、サンプル、または参照規格
- 材質グレードと希望製法
- 寸法、公差、表面処理
- 用途、予定数量、納入先
製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicOtherConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.25 in
-
Pipe Class125SizeCustomized Size
-
Product nameElbow
This ninety-degree stainless elbow enquiry references the grades 304, 316 and 316L alongside Casting, BSPT and DIN. The specification table lists Welding and an unspecified Other manufacturing entry. Begin with those differences: the selected elbow needs a documented connection and production route before these title references can become an accepted specification.
Resolve BSPT and Welding at both ends
Ask for a drawing tied to the selected variant that identifies each end. Do not assume that the thread and welding labels describe a combined design. A threaded configuration requires its complete thread designation, size, engagement and mating pipe threads. A welded configuration requires the actual preparation, wall alignment and joining inspection requirements. Confirm which description applies before planning the pipe connection.
Use the bend drawing rather than gallery markings

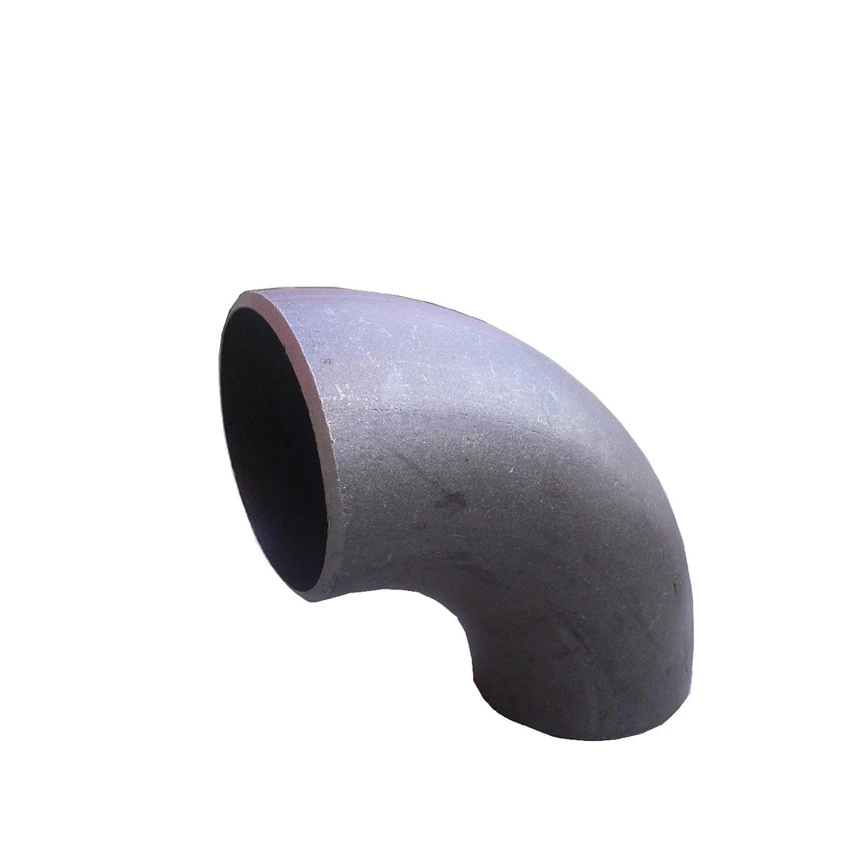

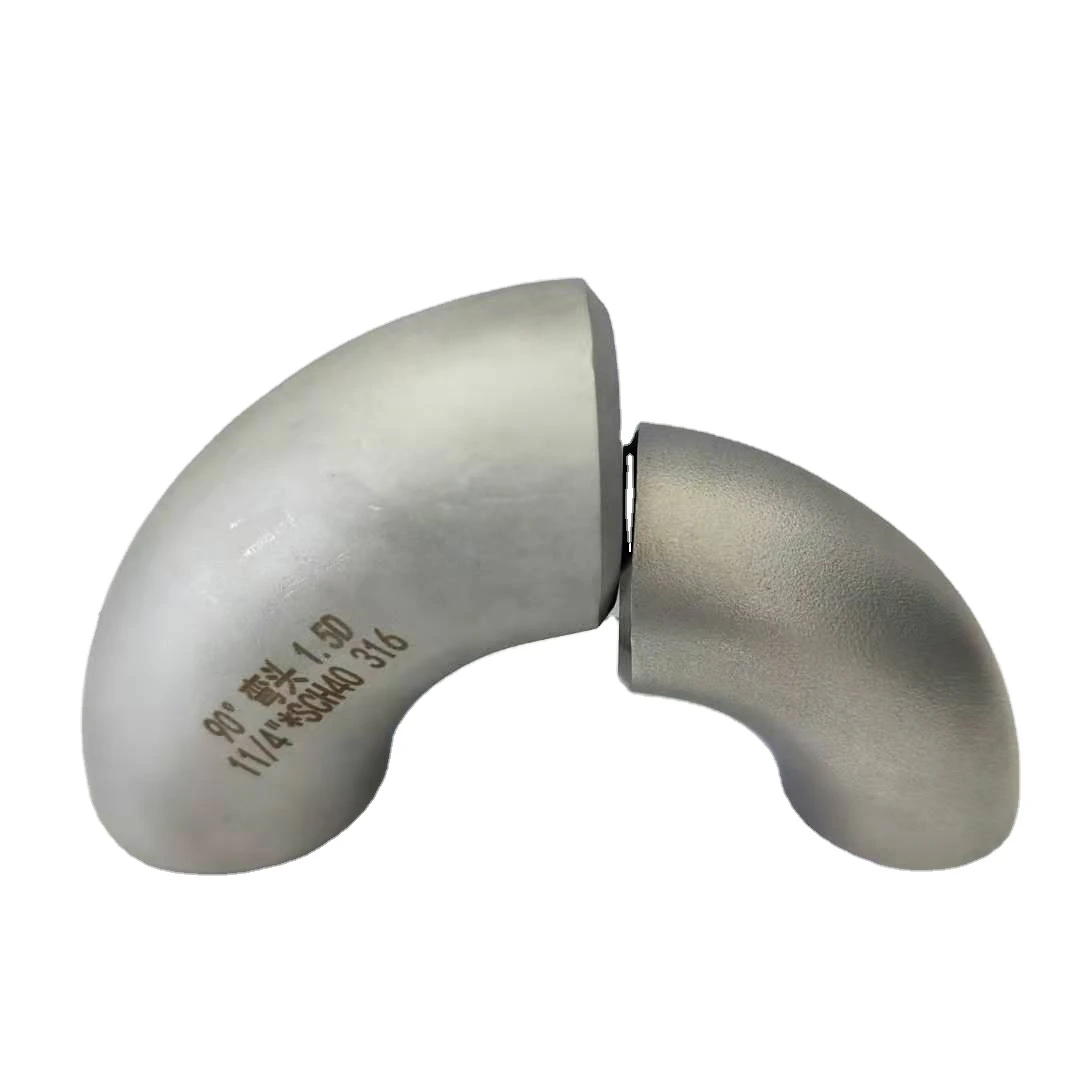

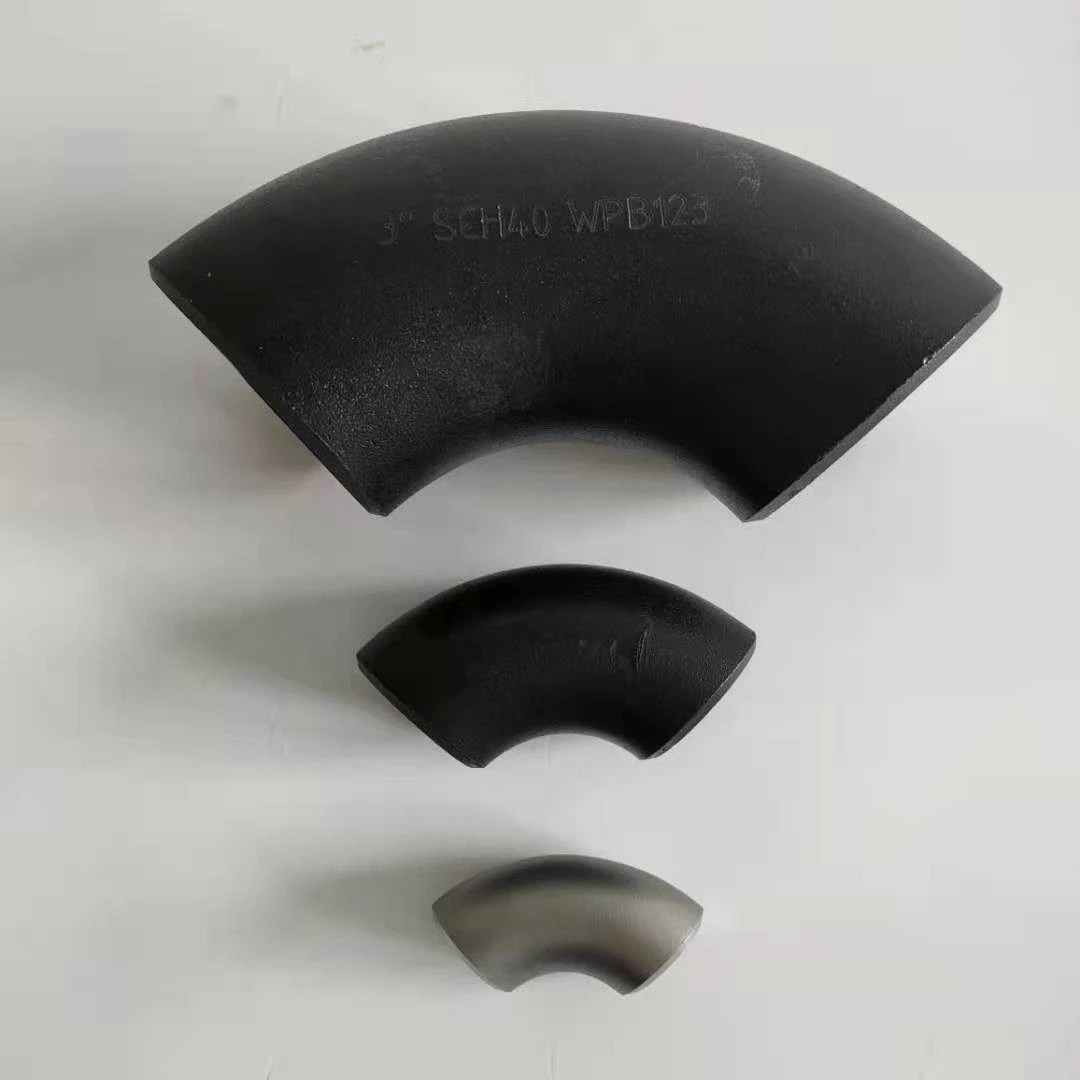

The photographs show several silver and dark elbows with markings; they do not establish each option's actual grade, wall, angle or manufacture. Confirm the requested ninety-degree direction through its tolerance, centreline radius, centre-to-end dimensions and installation clearance. Explain the millimetre size convention and record both end dimensions. Equal, Hexagon and the mounting-hole field cannot replace a complete bend drawing. DIN also needs a numbered designation and edition.
Document one grade and the complete joint conditions
Choose one stainless material requirement with traceable documents; the three title grades are not automatically interchangeable or jointly qualified. Alloy and Carbon Steel menu choices need separate assessment. Obtain production evidence for Casting, since Other provides no specific route. Clarify Painting and the actual joint-zone surface condition. Establish the basis of Pipe Class 125, then evaluate fluid, temperature, pressure, corrosion and mechanical loads for both adjoining pipes and their completed joints.
すべての製品照会に必要な技術情報
製品の最終確認前に要件を整理します。
製品ページは出発点です。在庫適合や特注生産の確定前に、図面、サンプル、接続、材質、数量、受入要件を確認します。
案件の条件に沿ってこの製品を検討します。
現在の図面、サンプル、参照品、数量、用途情報をお送りください。不明点は未確定のまま検討できます。
