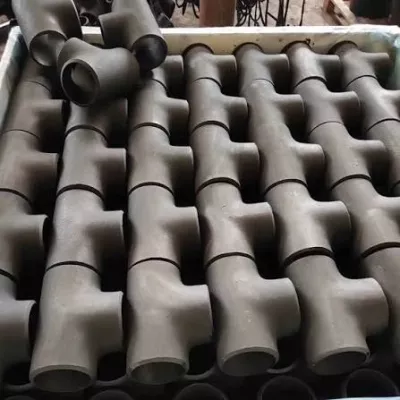

24-Inch SCH40 Carbon Steel Equal Butt Weld Tee
産業調達向け
明確なRFQを準備
RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。
- 図面、サンプル、または参照規格
- 材質グレードと希望製法
- 寸法、公差、表面処理
- 用途、予定数量、納入先
製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
This 24-inch SCH40 carbon steel equal butt-weld tee enquiry has inconsistent catalogue family information. The title and table describe a tee/Equal context, but both actual variants are labelled Reducer. Confirm the ordered component and accepted drawing before using the selected option for procurement.
Allocate the 24-inch tee and SCH40 requirement
Ask which configuration the supplier actually offers and obtain its run/branch geometry. Existing Reducer labels remain unchanged. The shared half-inch-to110-inch range does not separately select a 24-inch tee or establish availability of every run/branch combination; identify all nominal ends explicitly.
Confirm outside diameters, bores, equal or reducing dimensions, actual wall thickness, center-to-end measurements and tolerances. Allocate SCH40 to the selected size through accepted records. It is a wall reference rather than a numerical pressure guarantee. Agree butt-weld preparation and matching pipe-wall requirements.
Complete custom fields and material traceability
Length, height, mounting-hole diameter and thread fields state Customized Size. Request actual dimensions and connection details; those entries do not establish a hole feature or thread standard. Clarify Hexagon against the drawing. No exact dimensional standard is recorded, so agree the governing specification explicitly.
Obtain full carbon steel designation, condition, traceability and certificates, with WPB allocation where the a234wpb option is selected. Request records supporting SMLS/seamless and forged wording. Define inspection of the plain surface rather than assuming a protective coating or a certified process from appearance.
Approve oil or irrigation service individually
High Pressure and Other class leave numerical duty unconfirmed. State the actual medium, pressure, temperature, cycling, loads and compatibility. Obtain system acceptance after family/geometry reconciliation, then agree joining, alignment, inspection, marking, material/process/dimensional records, individual supply and quotation scope.
すべての製品照会に必要な技術情報
製品の最終確認前に要件を整理します。
製品ページは出発点です。在庫適合や特注生産の確定前に、図面、サンプル、接続、材質、数量、受入要件を確認します。
案件の条件に沿ってこの製品を検討します。
現在の図面、サンプル、参照品、数量、用途情報をお送りください。不明点は未確定のまま検討できます。
