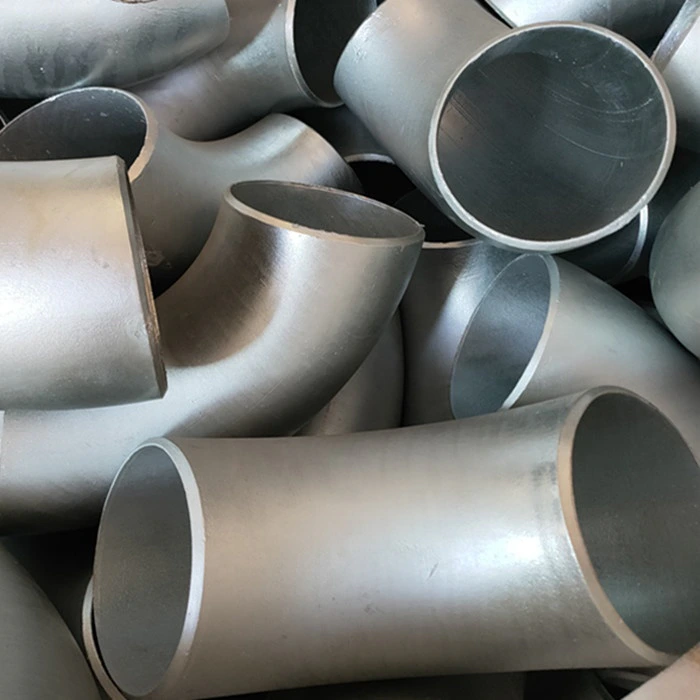

Seamless Long Radius Pipe Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This seamless long-radius elbow listing concerns industrial pipeline enquiries, but its material information needs reconciliation. The title names Alloy Steel while the sole actual variant specifies Carbon Steel. Confirm the supplied material before accepting either identity as a certified project requirement.

Reconcile the material and complete the ASME reference

Request corrected selected configuration records, full material specification, grade, condition, traceability and certificates. Do not apply the alloy title to the carbon-labelled option without evidence. The general ASME reference lacks a document number, so agree the actual governing document, edition and applicable configuration.

Obtain manufacturing records supporting seamless and forged descriptions. Define smooth-surface inspection and any actual protective treatment. Corrosion-resistant wording does not establish a coating or compatibility with the proposed pipeline medium; material reconciliation must precede a service recommendation.

Define the long-radius elbow for the pipe route

Specify actual angle, centerline radius, center-to-end dimensions, outside diameter, bore, wall thickness and tolerances. No angle or numerical schedule is supplied here. Choose the individual nominal size from the half-inch-to12-inch range and verify availability rather than assuming every size/wall combination is offered.

Resolve Welding versus NPT entries through the actual end drawing and mating pipe details. Clarify Hexagon and the range values repeated under length, height and mounting-hole diameter. Those entries do not determine measured geometry or prove a hole feature, and they cannot establish a hybrid connection.

Accept duty after the configuration is confirmed

Low Pressure and Not Rated leave numerical limits unconfirmed. State medium, pressure, temperature, cycling, loads and corrosion allowance. Obtain complete system acceptance for the verified material and pipe interfaces, then agree joining, alignment, inspection, marking, required records and quotation scope.
