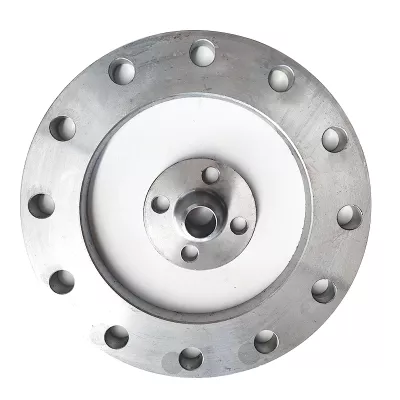

A105 ASME B16.5 FF/RF Carbon Steel Socket/Plate Flange Enquiry

• warranty

  1 year
  customized support

  OEM, ODM, OBM
• model number

  flange 0364
  Technic

  Casting
• Connectivity

  Female/Male
  shape

  Reducing
• head code

  Round
  Overall Length

  4 in
• Height

  20cm
  Surface Treatment

  Painting
• Pressure

  High Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.2 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  1000
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Industry
• Thread Types

  NPT
  Product name

  A105 ASME B16.5 FF RF Socket Forged Carbon Steel Pipe Plate Flange
• Material

  A105
  Size

  1/2' ~ 4'
• Color

  Black
  Standard

  ASTM
• Usage

  Oil Gas Water Industrial
  Packing

  Carton
• Feature

  Corrosion Resistant
  Certification

  ISO 9001

This pipe flange page supports an A105 carbon steel enquiry with an ASME B16.5 requirement and a selected FF or RF facing. Define the flange form and pipe-side connection separately from the sealing face. A complete selection also needs the mating dimensions, exact material scope and pressure-temperature qualification for the requested configuration.

Choose the face for the intended flange joint

State whether FF or RF is required and identify the mating flange and gasket arrangement. Confirm the dimensions and surface requirements for the intended joint. A facing designation describes one part of the flange specification and does not establish the bore, bolt pattern or pipe connection. Use the selected-flange drawing to check that the complete joint matches the project requirement.

Define the socket or plate configuration precisely

Identify the required flange form and pipe interface rather than assuming every configuration uses the same connection. If a socket arrangement is required, describe it explicitly and confirm its dimensions against the pipe. Any threaded or other interface needs its own specification. Provide nominal pipe size, bore, flange thickness and bolt-hole pattern, with the governing dimensional standard and edition.

Confirm A105 construction and service qualification

Request the exact material specification and manufacturing confirmation for the Carbon Steel flange being considered. A Stainless Steel selection needs a separate grade specification. Include design pressure, temperature and the service medium when asking for the applicable pressure-temperature class and suitability evidence. Do not infer a high-pressure rating, corrosion performance or certification from the face style or photograph. Before choosing the flange, review the selected and mating drawings together with material, construction and service documentation for the same configuration.
