Stainless Steel Threaded Equal Tee Enquiry
産業調達向け
明確なRFQを準備
RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。
- 図面、サンプル、または参照規格
- 材質グレードと希望製法
- 寸法、公差、表面処理
- 用途、予定数量、納入先
製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow

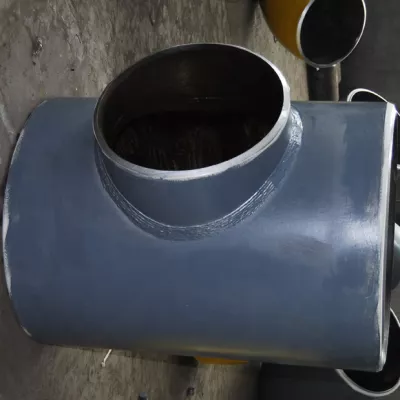

This stainless-steel equal-tee enquiry requests a threaded connection, but the specification table records Welding. The two reviewed photographs show tee forms without establishing threads. Resolve the actual end construction before specifying assembly, and select TEE explicitly because the offered types also include Elbow.
Resolve the connection before specifying threads
Obtain a drawing showing the actual construction of all three ports. If threaded ends are confirmed, define the thread system and edition, nominal designation, pitch, taper or parallel form, male/female assignment, engagement and sealing method. Match each mating connection and check tool access. Millimetre labels alone do not identify a thread standard. If welded ends are offered instead, agree a revised connection requirement with its end preparation and inspection procedure. Neither source label by itself settles that decision.
Describe the selected tee and exact material
Identify run and branch nominal sizes, outside diameters, actual walls and centre-to-end dimensions. Confirm the Equal relationship across all three pipes. An Elbow selection requires a separate angle and end drawing, and the imported Elbow product name cannot define tee geometry. Specify an exact stainless material and grade with traceable records; Carbon Steel and Alloy alternatives need separate assignments. Photographed grade or schedule markings do not qualify every variant, and the Hexagon or mounting-hole fields do not replace a three-port drawing.
Agree production and complete-joint acceptance
Verify Forged through manufacturing and inspection evidence. Define Painting through coating requirements and connection or sealing-surface condition. Provide fluid, pressure, temperature, corrosion and branch loads for assessment under the applicable fitting and joining requirements. Pipe Class 150 alone does not establish permissible duty. Confirm offered dimensions and availability beyond Customized Size, then accept the selected fitting against reconciled type, end construction, material/production and complete-joint records.
すべての製品照会に必要な技術情報
製品の最終確認前に要件を整理します。
製品ページは出発点です。在庫適合や特注生産の確定前に、図面、サンプル、接続、材質、数量、受入要件を確認します。
案件の条件に沿ってこの製品を検討します。
現在の図面、サンプル、参照品、数量、用途情報をお送りください。不明点は未確定のまま検討できます。
