Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation

Industrial Flanged Flexible Connector Stainless Steel 304 316L Bellows Metal Expansion Joint for Thermal Compensation
リンクをコピーしました

産業調達向け

明確なRFQを準備

RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。

  • 図面、サンプル、または参照規格
  • 材質グレードと希望製法
  • 寸法、公差、表面処理
  • 用途、予定数量、納入先
案件情��を送る メール WhatsApp Telegram

製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
商品説明
  • warranty
    1 year
    customized support
    OEM, ODM
  • model number
    BEJ
    Technic
    Forged
  • Connectivity
    Flange
    shape
    Equal
  • head code
    Round
    Overall Length
    According to requirements
  • Height
    According to requirements
    Surface Treatment
    According to requirements
  • Mounting hole diameter
    According to requirements
    Pipe Class
    According to requirements

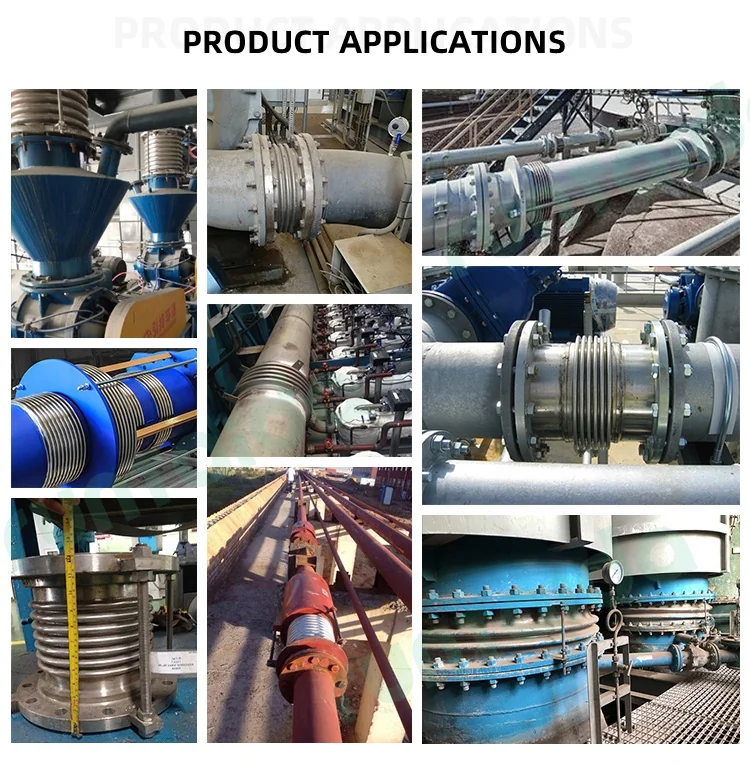

  • Application
    plumbing & water supply, natural gas & petroleum industry, oil & gas industry, water supply and drainage systems
    Product name
    Stainless Steel Metal Expansion Joint
  • Working Pressure
    PN10 - PN40
    Maximum Temperature
    -10℃ - +300℃
  • Applicable media
    Water, hot water, steam, oil, air, etc
    Flange Standards
    ANSI, DIN, JIS, etc

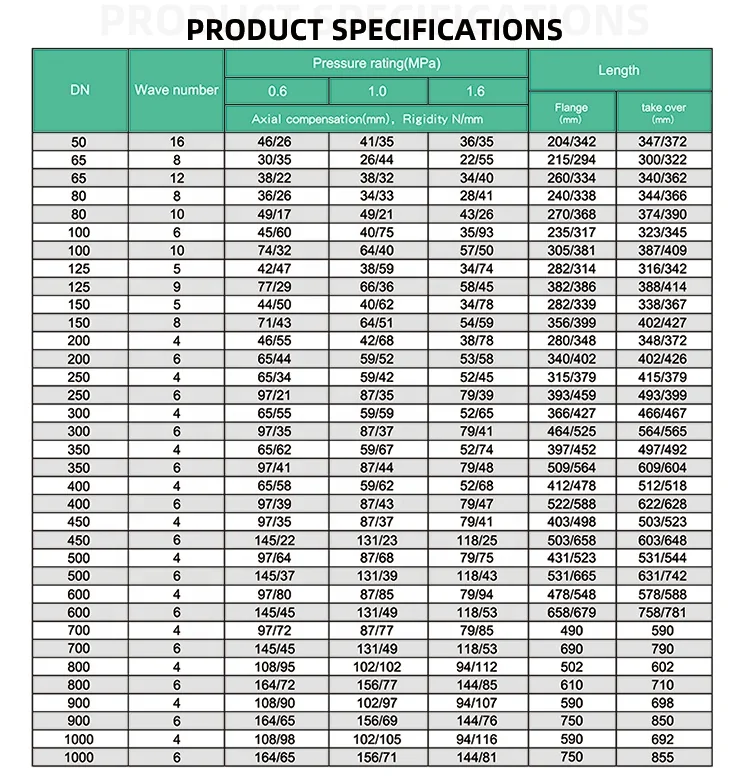

  • Nominal diameter
    DN50 - DN3000
    Flange material
    Stainless steel 304, 316,etc.
  • Bellows materia
    Stainless steel 304,316,etc.
    Axial compention dosage
    ± 3.5 mm
  • Manufacturer
    Yes, factory add: Gongyi City,China
