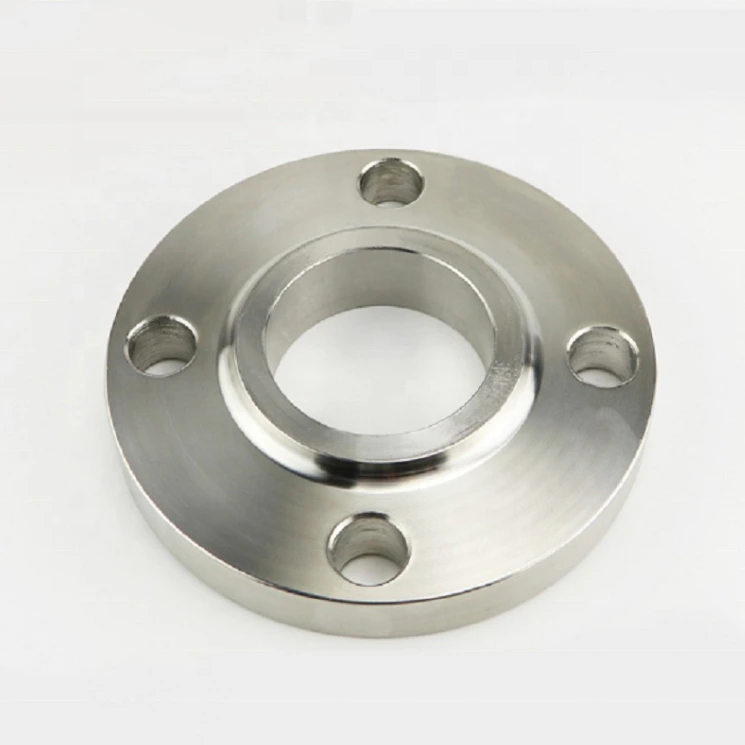

Polished Stainless Steel Lap Joint Flange
産業調達向け
明確なRFQを準備
RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。
- 図面、サンプル、または参照規格
- 材質グレードと希望製法
- 寸法、公差、表面処理
- 用途、予定数量、納入先
製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
-
Surface TreatmentPolishedApplicationIndustrial Equipment
-
Bolt Hole Diameter1/2"Bolt Hole Quantity4
This polished stainless steel lap-joint flange listing provides an industrial-piping enquiry context. Stainless Steel/Lap Joint is an actual catalogue combination. Confirm that selected configuration and the complete supplied assembly before applying the title’s material, forged or high-pressure wording to a purchase specification.
Define the lap-joint assembly and stainless grade
Thirty-six choices span four materials and nine flange types. Other options require their own construction and material records. Identify the actual assembly, companion end/connection components and mating arrangement, including which parts are included in the quotation rather than assuming a complete assembly from the type name.
Specify full stainless designation, grade, condition, traceability and accepted certificates. Obtain manufacturing evidence for forged construction. Generic stainless and polished wording do not establish corrosion or chemical performance; agree the surfaces and finish inspection criteria for the actual component.
Allocate documents and drilling to the selected size
The shared half-inch-to120-inch label does not prove every size is available. Confirm individual nominal size and supply. API/ANSI title references need actual document numbers, editions and applicable size/material/class provisions; no numerical pressure class is recorded.
Require a drawing with outside diameter, thickness, bore/interface, companion-end geometry where relevant, facing dimensions/finish and tolerances. Allocate the table’s four half-inch holes to the selected drawing. Confirm actual hole count, diameter and bolt circle instead of extending those entries across every option.
Establish duty for the completed piping joint
High Pressure is qualitative. State medium, pressure, temperature, cycling, loads and compatibility, then obtain complete joint approval. Agree mating flange, companion parts, gasket, fasteners, alignment, attachment and installation inspection. Confirm material/manufacturing/dimensional/class records, marking, included parts, individual-size availability and quotation scope.
