DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint

DIN PN10 Flange Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
リンクをコピーしました

産業調達向け

明確なRFQを準備

RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。

  • 図面、サンプル、または参照規格
  • 材質グレードと希望製法
  • 寸法、公差、表面処理
  • 用途、予定数量、納入先
案件情��を送る メール WhatsApp Telegram

製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
商品説明
  • warranty
    1 year
    customized support
    OEM, ODM
  • model number
    N-RJ
    Technic
    Forged
  • Connectivity
    Flange
    shape
    Equal
  • head code
    Round
    Overall Length
    According to pipeline requirements
  • Height
    According to pipeline requirements
    Surface Treatment
    Cleaning Supplies
  • Pressure
    Low Pressure
    System of Measurement
    inch
  • Mounting hole diameter
    According to pipeline requirements
    Pipe Features
    Flexible, Corrosion-resistant, Chemical Resistant
  • Pipe Class
    Not Rated
    Product name
    Double Sphere Dual EPDM Corrugated Compensator Rubber Expansion Joint
  • Working Pressure
    6-40bars(PN6-PN40)
    Working Temperature
    -15℃-80℃(-30℃-150℃)
  • Test pressure
    1.5 times of working pressure
    Explosion pressure
    2 times of working pressure
  • Applicable media
    Air,water,sewage,acid,oil,etc.
    Nominal diameter
    DN40-DN1200
  • Flange material
    Carbon steel galvanized,Stainless steel etc.
    Rubber material
    NR,EPDM,NBR etc.
  • Flange Standard
    DIN,ANSI,JIS etc.

調達検討向け関連商品

28 Inch Flexible Single Sphere Steel Flang Epdm Expansion Nagpapalawak Ng Magkasanib Na Goma Expans Joint Rubber

28 Inch Flexible Single Sphere Steel Flang Epdm Expansion Nagpapalawak Ng Magkasanib Na Goma Expans Joint Rubber

DN350 PN16 Flange Connector Epdm Rubber Expansion Joint

DN350 PN16 Flange Connector Epdm Rubber Expansion Joint

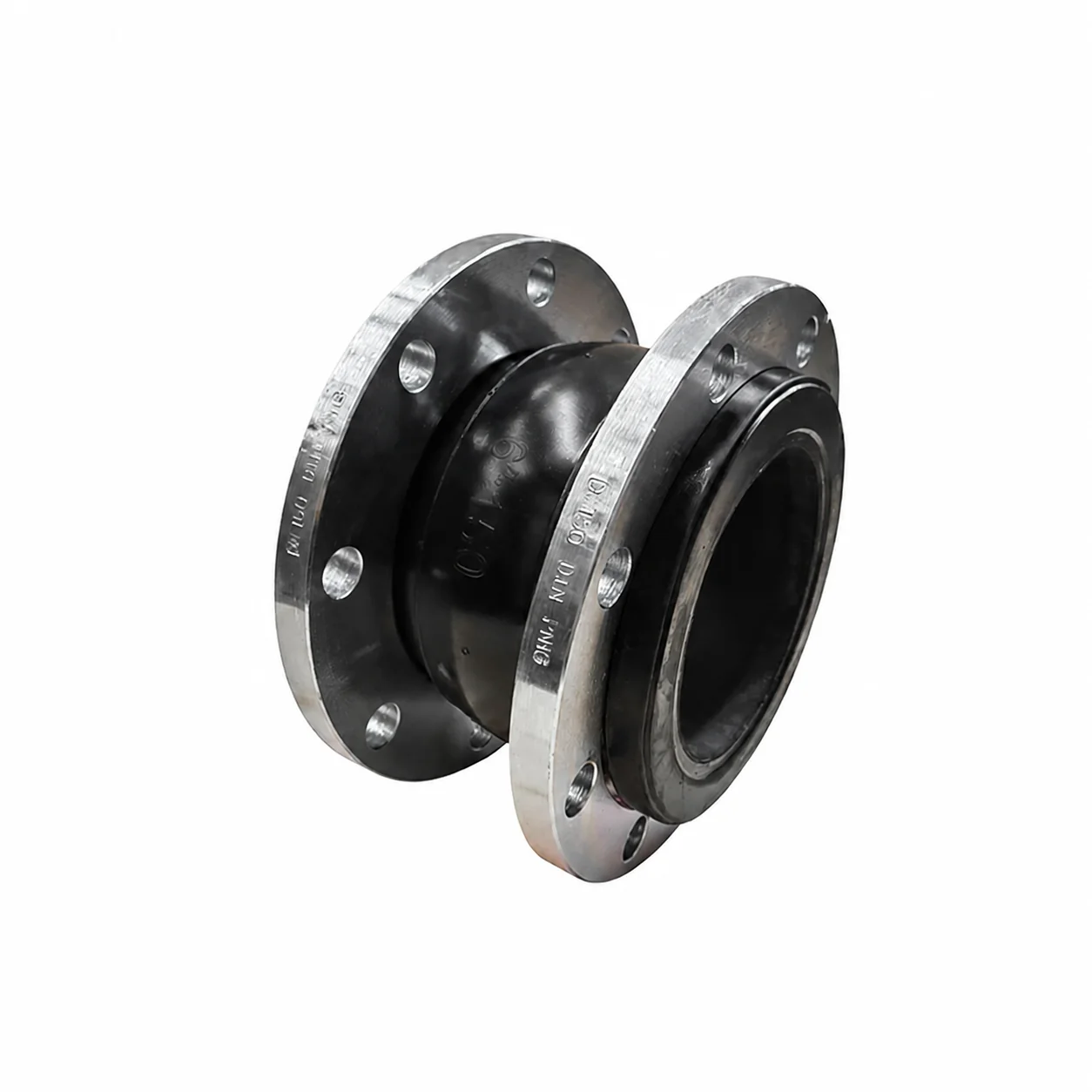

Oil Resistant NBR Pipe Flanged Flexible Rubber Joint for Industrial Chemical Lines

Oil Resistant NBR Pipe Flanged Flexible Rubber Joint for Industrial Chemical Lines

ANSI Cl150 Flange End Compensator Single Sphere Flexible Epdm Eccentric Reducing Rubber Expansion Joint

ANSI Cl150 Flange End Compensator Single Sphere Flexible Epdm Eccentric Reducing Rubber Expansion Joint

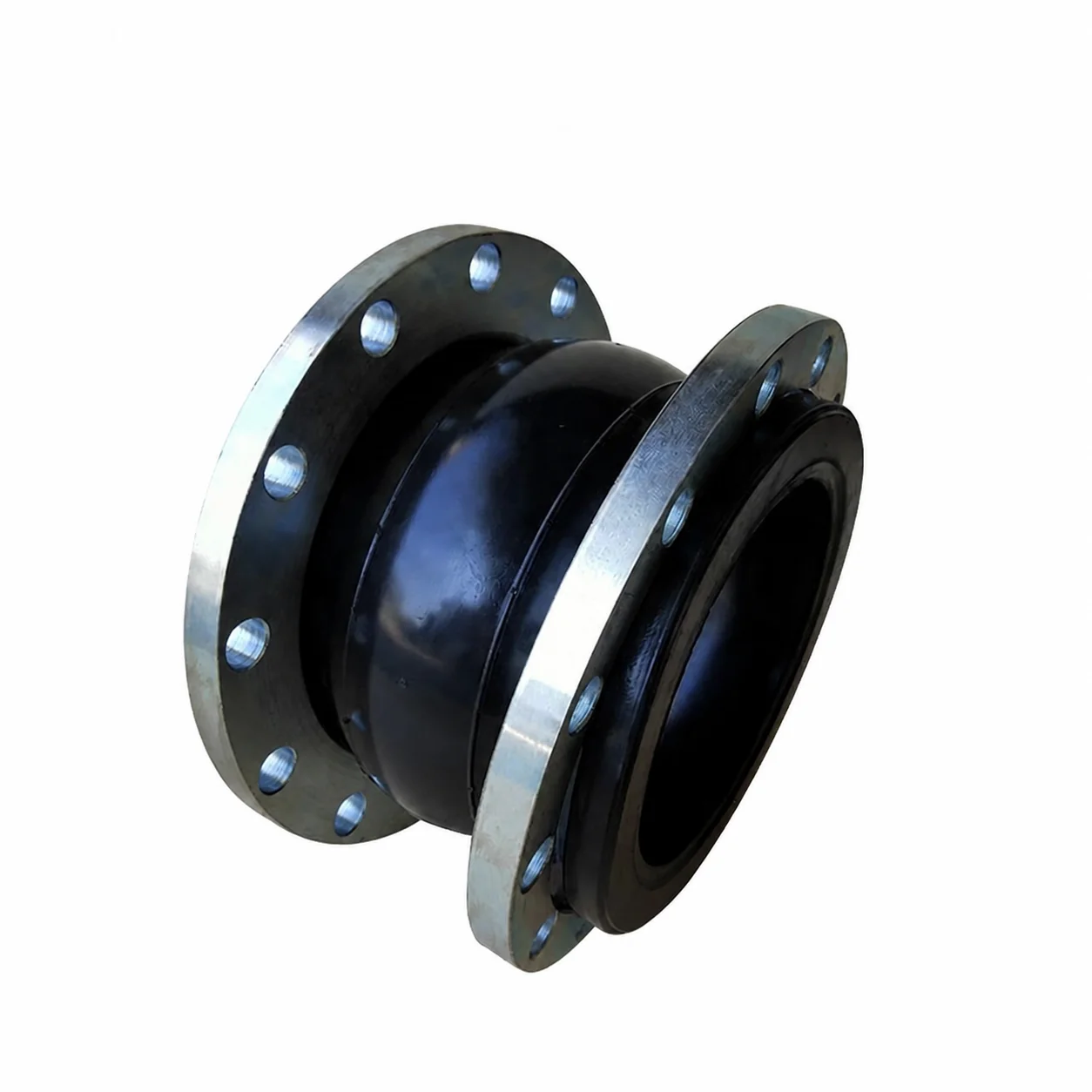

PN16 Compensator Carbon Steel Bellow Epdm Flange Single Sphere Flexible Rubber Joint

PN16 Compensator Carbon Steel Bellow Epdm Flange Single Sphere Flexible Rubber Joint

DIN EPDM Flexible Bellow Coupling Compensator Flanged Connector Single Sphere Rubber Expansion Joint

DIN EPDM Flexible Bellow Coupling Compensator Flanged Connector Single Sphere Rubber Expansion Joint

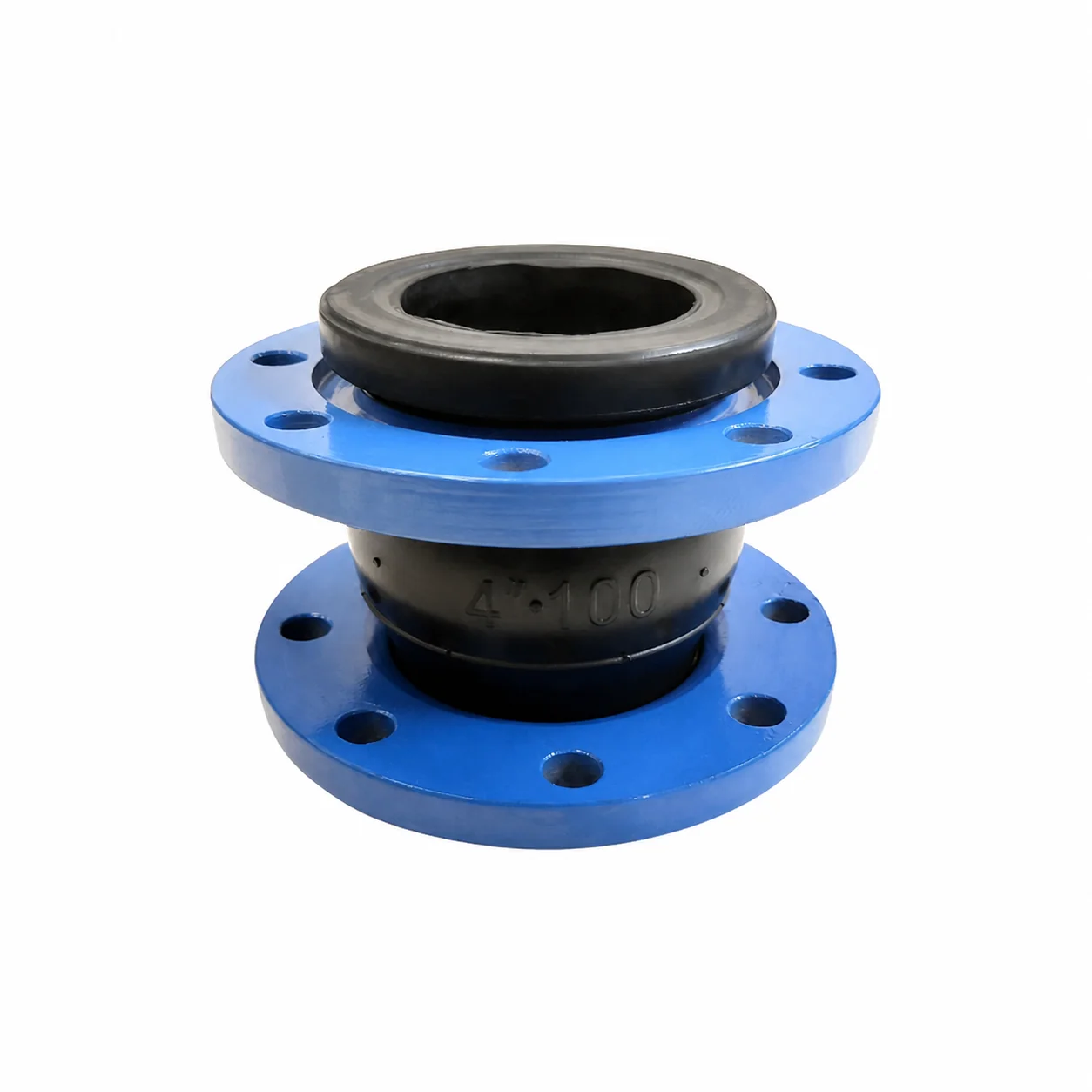

Pipe Epdm Single Bellow Flexible Expansion Joint Rubber Joint
