Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling

Custom Sized Large Caliber Gibault Joint Wide Range Pipe Universal Coupling
リンクをコピーしました

産業調達向け

明確なRFQを準備

RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。

  • 図面、サンプル、または参照規格
  • 材質グレードと希望製法
  • 寸法、公差、表面処理
  • 用途、予定数量、納入先
案件情��を送る メール WhatsApp Telegram

製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
商品説明
  • warranty
    1 year
    customized support
    OEM, ODM
  • model number
    SSJB(AY)
    Technic
    Casting Forging
  • Connectivity
    Gland
    shape
    Equal
  • head code
    Round
    Overall Length
    According to requirements
  • Height
    According to requirements
    Surface Treatment
    According to requirements
  • Mounting hole diameter
    According to requirements
    Pipe Class
    According to requirements
  • Application
    Agricultural Irrigation, Construction Engineering, Shipbuilding, petrochemical industry
    Product name
    Gibault Joint Wide Range Pipe Universal Coupling
  • Size
    DN50-DN600
    Certificate
    ISO 9001:2008
  • Material of body
    cast iron,carbon steel,stainless steel
    Working pressure
    PN10-PN25
  • Applicable media
    Water,Oil,Air
    Seal ring
    EPDM, NR, NBR, etc
  • Standard
    ANSI,DIN,BS,JIS,ISO
    Brand
    Runtaida

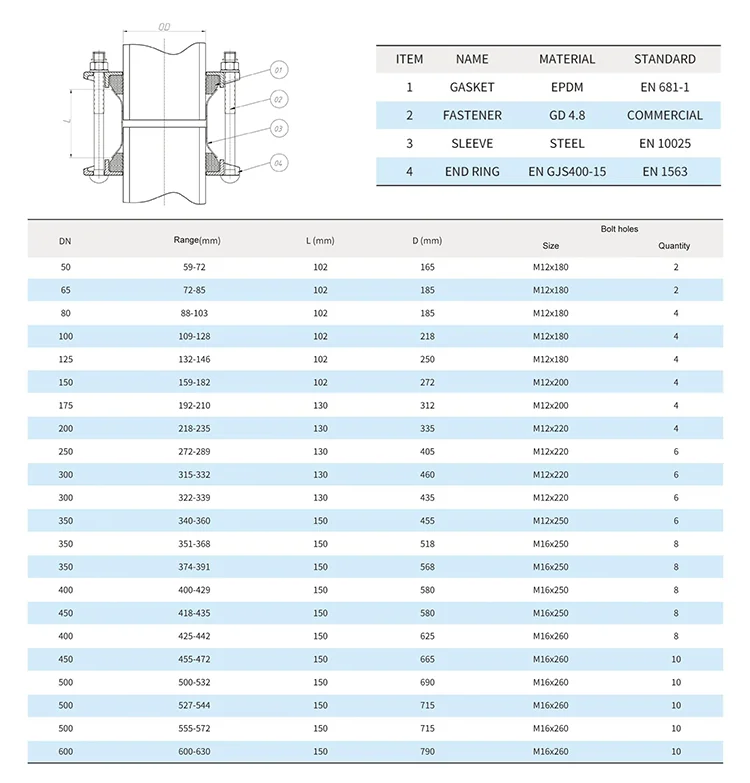

  • Drawing
    offer
