ASME B16.9 Carbon Steel Short-Radius 45° Butt-Weld Elbow
産業調達向け
明確なRFQを準備
RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。
- 図面、サンプル、または参照規格
- 材質グレードと希望製法
- 寸法、公差、表面処理
- 用途、予定数量、納入先
製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
-
warranty1 Yearcustomized supportOEM, ODM
-
model numberelbow 3623TechnicCasting
-
ConnectivityFemale/MaleshapeReducing
-
head codeRoundSurface TreatmentPainting
-
Mounting hole diameter0.17 inPipe Class150

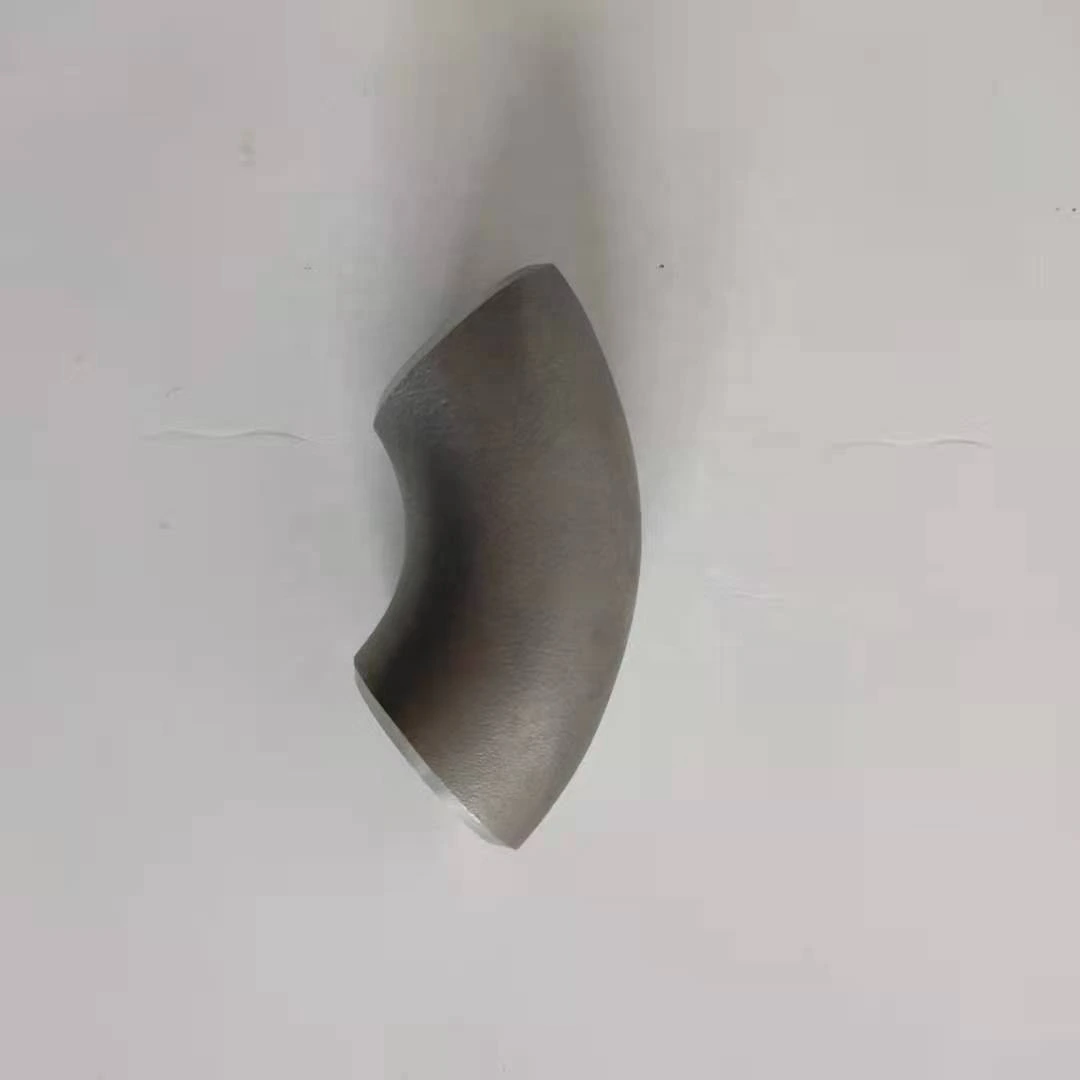

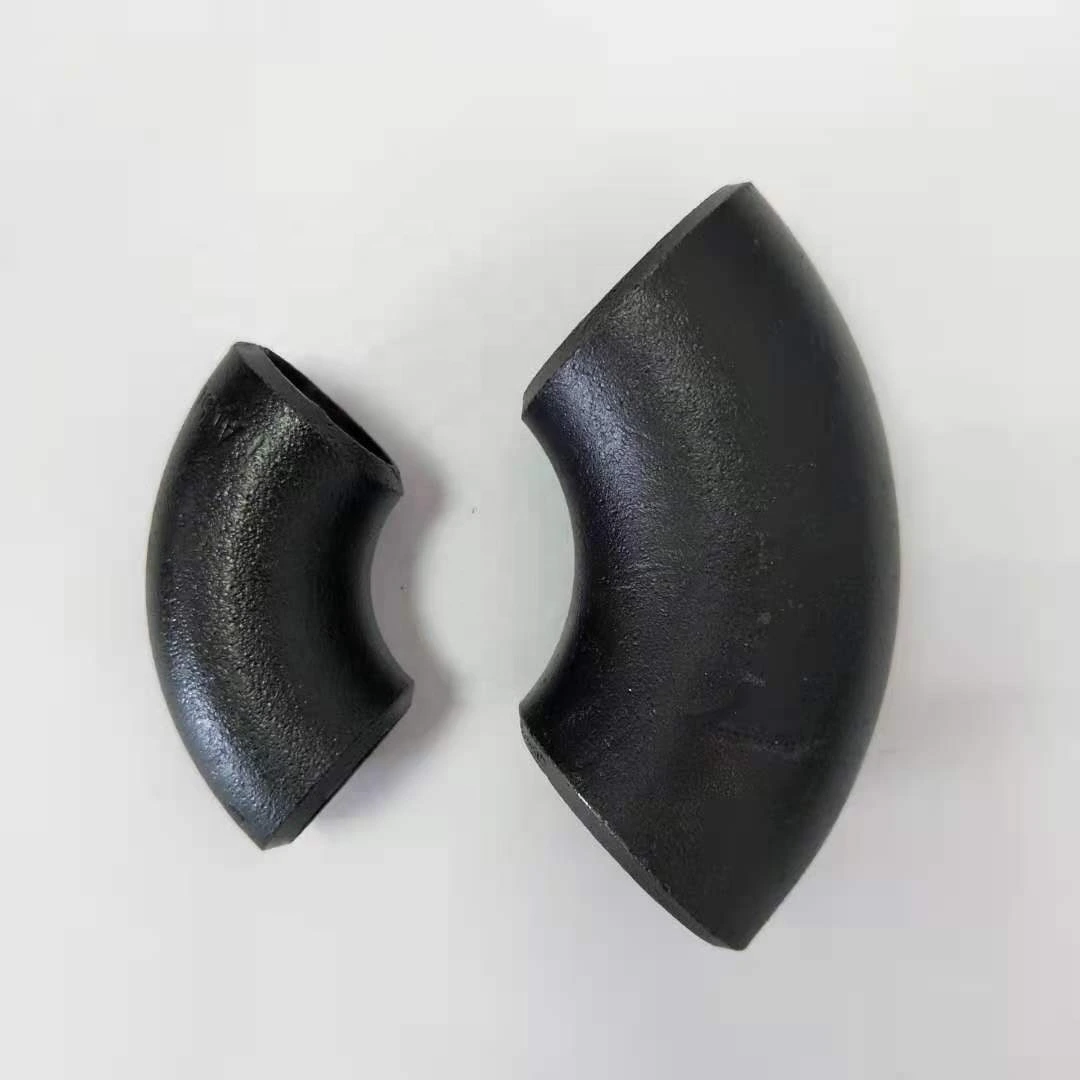

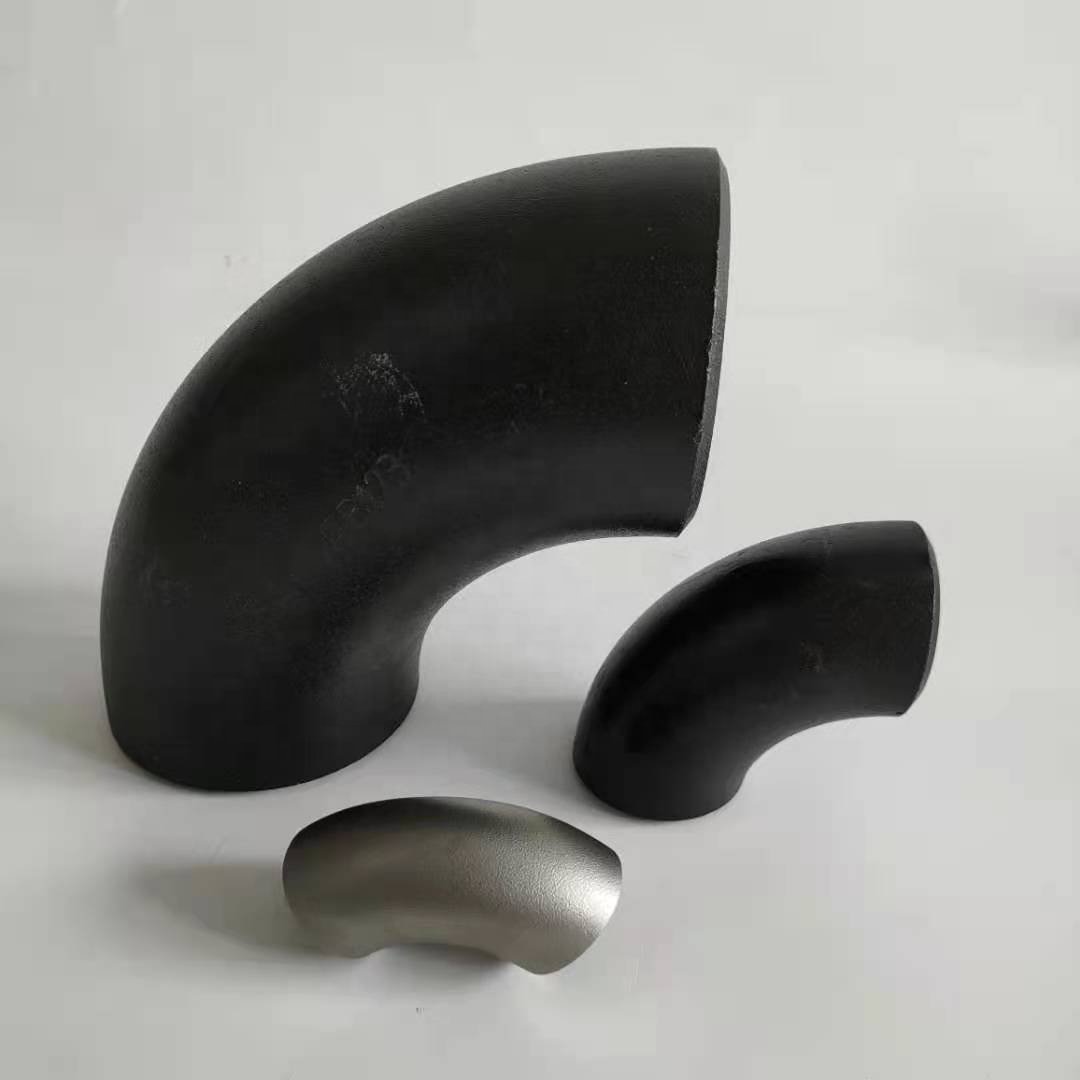

This pipe elbow enquiry centres on a carbon-steel short-radius bend with a 45-degree butt-weld requirement under ASME B16.9. A selected-item drawing is essential when comparing the available size and material choices. The photographs include different curved arrangements, so establish the actual angle and radius before using the images to plan a compact pipe direction change.
Specify the bend envelope
State the required deflection angle and centreline radius as separate dimensions. Request end-to-centre measurements, nominal sizes, outside diameters and wall thickness for the selected elbow. Explain what the millimetre size option measures and whether both ends have the same bore or a reducing arrangement. The required short radius should be checked against the governing dimensional specification and available installation space, including access for welding and inspection.
Match the butt-weld interface
Define bevel angle, land and end-wall requirements together with the mating pipe dimensions. The Female/Male field does not establish thread geometry or replace a weld-preparation drawing. Choose the carbon-steel variant and specify its exact grade and material standard; stainless-steel alternatives require a separate designation. Link material and production records to that selected item before accepting its construction, since the generic Casting field alone does not establish the manufacturing route.
Set dimensional and service acceptance
Provide the B16.9 edition, dimensional tolerances and agreed inspection requirements. State the fluid, operating pressure and temperature, corrosion conditions and fabrication constraints so engineering assessment covers the complete welded joint. A Pipe Class 150 field is not a pressure-temperature qualification for this elbow, and the Painting or mounting-hole labels do not demonstrate coating performance or measured bend dimensions. A useful enquiry combines the required angle and radius with one end-detail drawing, exact grade and traceable acceptance records.
