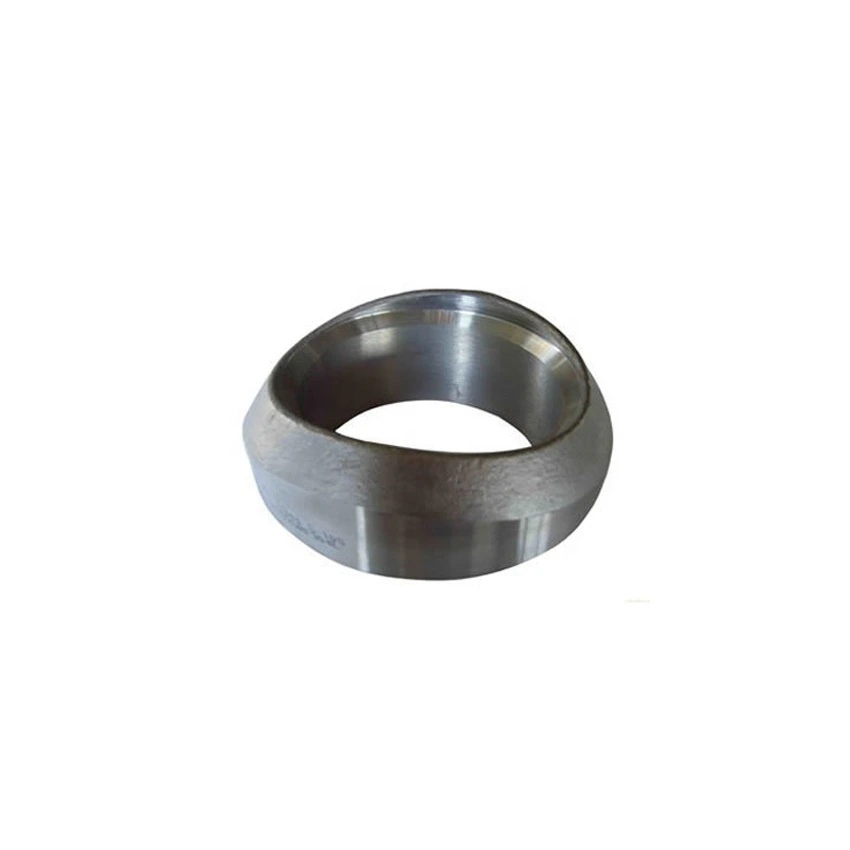

Carbon Steel Reducing Branch Connection Fitting

• warranty

  1 year
  customized support

  OEM, ODM
• Technic

  Casting
  Connectivity

  Other
• shape

  Reducing
  head code

  Other
• Overall Length

  4 in
  Surface Treatment

  Smooth
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.26 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  3000
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
• Thread Types

  NPT

This carbon steel listing presents a reducing branch connection with Weldolet and butt-weld wording. Its available selection is labelled Coupling / 10 mm / Carbon Steel, while the specification table includes NPT. Establish the actual supplied geometry and end arrangement before selecting the fitting for a branch connection.

Resolve the fitting form and connection drawing

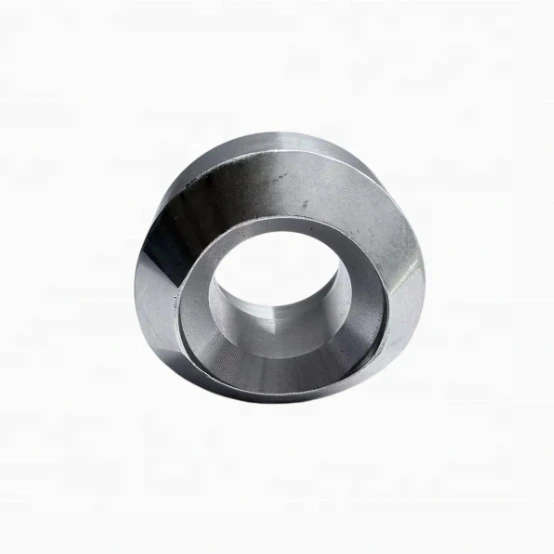

Ask for a drawing identifying every opening, contact surface and connection. A branch outlet needs the applicable run and branch interface details; a coupling needs its own end configuration. The product image shows a machined annular object, without establishing a saddle profile, actual thread or measured dimensions.

Confirm whether butt-weld preparation, NPT threading or another arrangement applies to each supplied end. The mixed source labels do not allocate those connections. Request the relevant B16.11 edition and evidence that its scope covers the proposed geometry and manufacturing condition.

Assess chemical exposure using actual conditions

Chemical corrosion resistance depends on the fluid and the selected material system. Provide chemical identity, concentration, contaminants, temperature and exposure duration so the supplier can assess compatibility. A general Chemical Resistant or Corrosion-resistant label does not identify a tested medium or establish a corrosion allowance.

Specify the actual carbon steel grade, condition and any required surface protection. Smooth describes the listed finish without defining a coating system. Casting requires supporting manufacturing and inspection records; the flexible, UV and underground labels also need evidence for the intended environment.

Confirm dimensions and the operating envelope

Clarify the roles of the 10 mm variant, 4 in overall length and 0.26 in mounting-hole entry, including units and tolerances. Class 3000 and Low Pressure do not give a numerical allowable pressure. Agree service pressure, temperature, cycling, loads, traceability and acceptance tests for the selected fitting before purchase.
