45-Degree Seamless Welding Elbow for Water Supply

• warranty

  3 Years
  customized support

  OEM, ODM, obm, odm
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Equal
  head code

  Hexagon
• Overall Length

  4 in
  Height

  10cm
• Surface Treatment

  Polishing
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  0.2 in
• Pipe Features

  No additional Features
  Pipe Class

  1000
• Application

  Building Water Supply And Drainage
  Thread Types

  NPT OR BSPT

This A234 WPB carbon-steel 45-degree welding elbow enquiry addresses a specified change of direction in building-water supply or drainage. Choose the supplied material and establish the complete fitting geometry before ordering. A product name alone does not certify the grade, production route or operating capability.

Specify the WPB material package

The actual choices pair a 10 mm label with Stainless Steel or Carbon Steel. Treat them as alternatives. Tie the WPB reference to the selected carbon-steel component and its accepted material specification; do not apply it automatically to a stainless-steel choice. Request the designation, edition, grade, heat traceability and inspection documents required by the project.

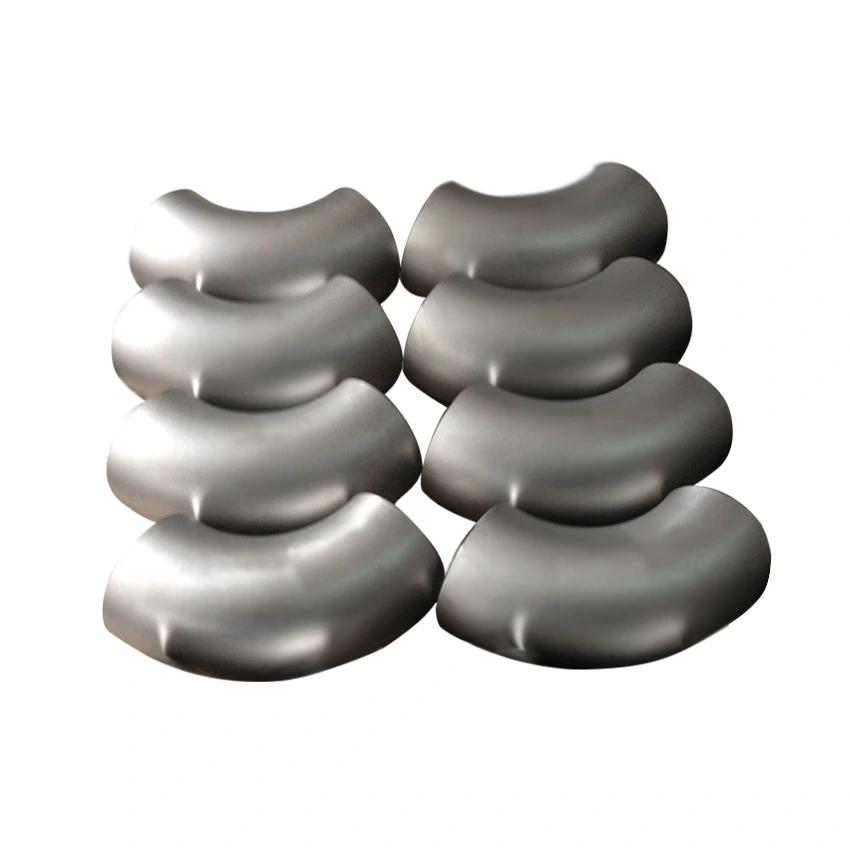

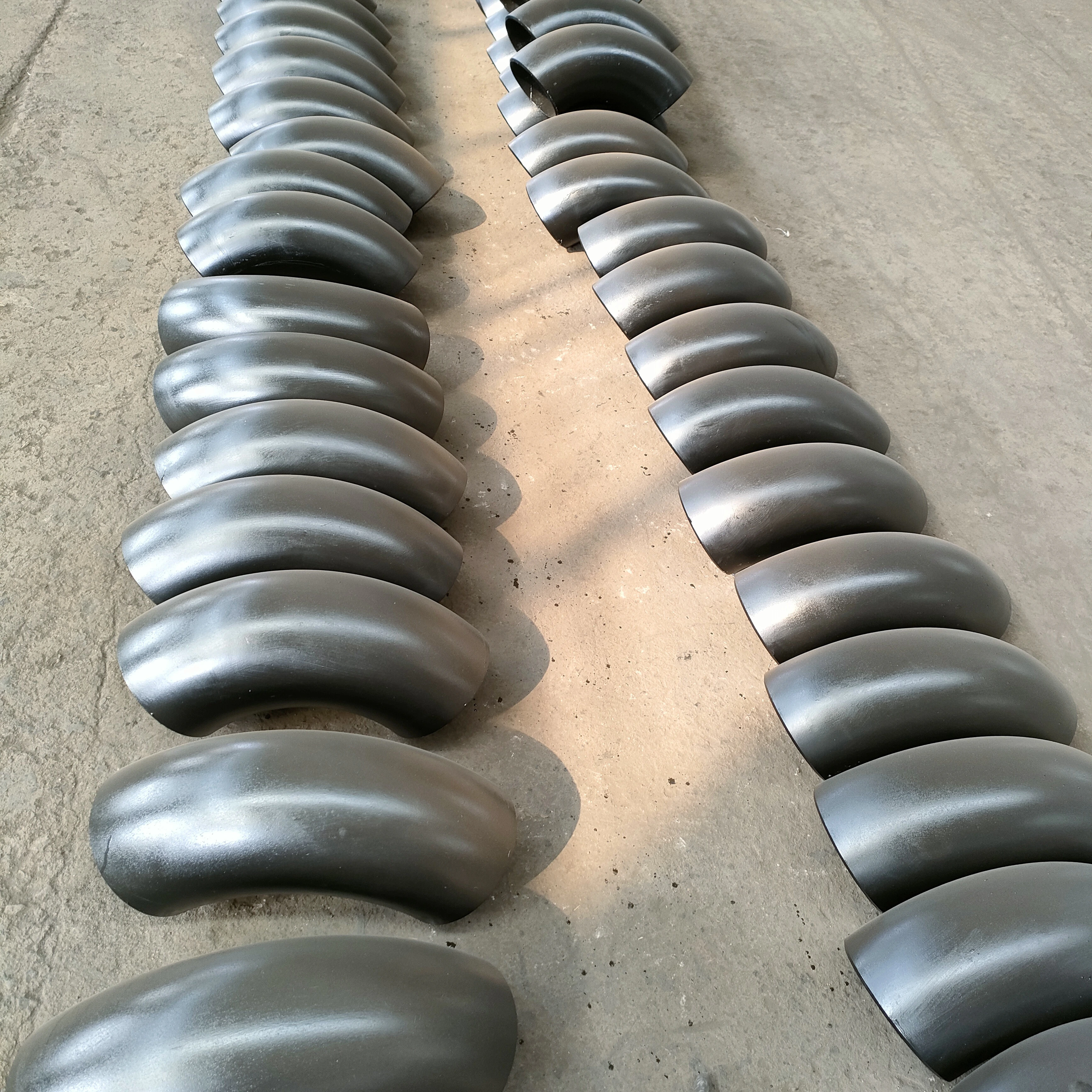

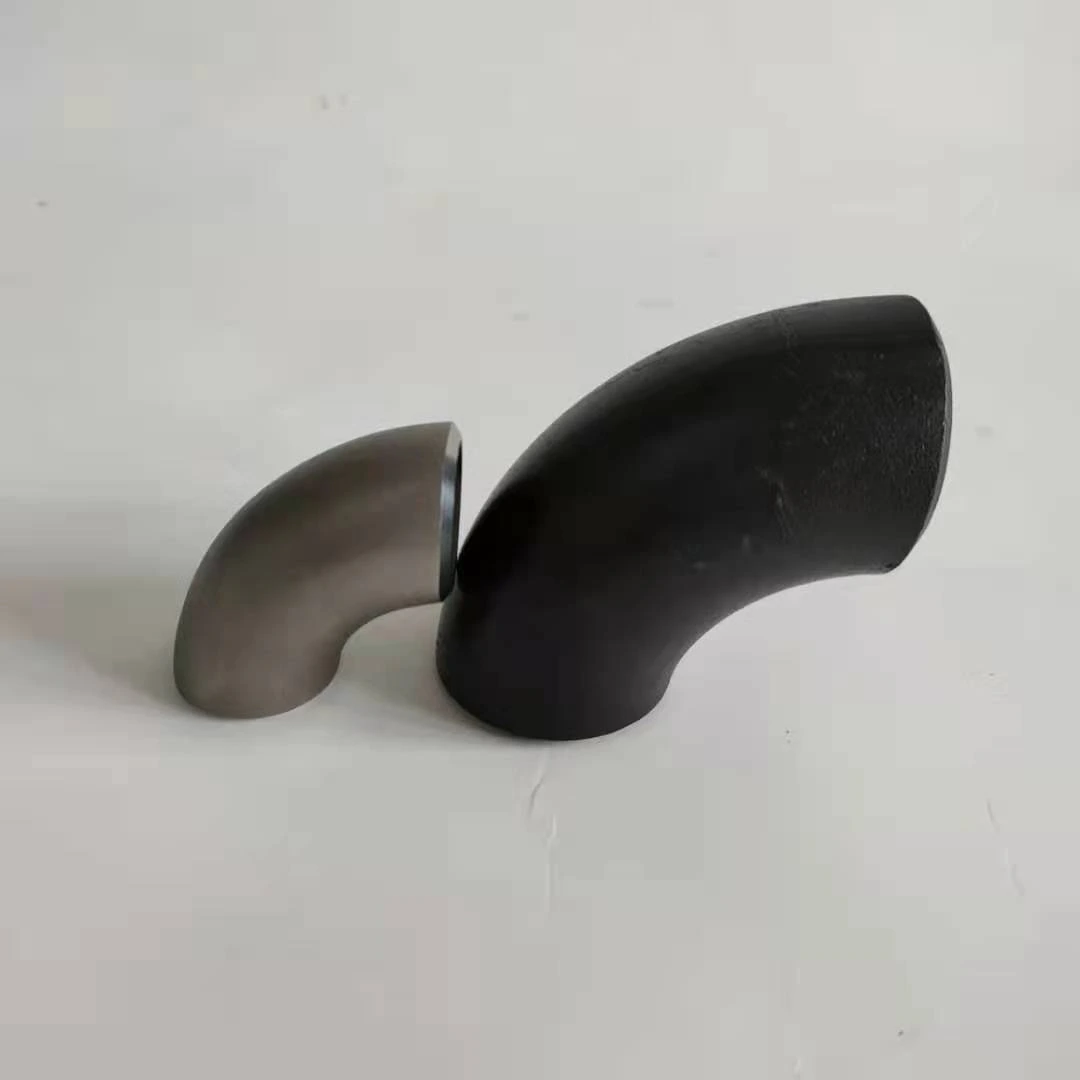

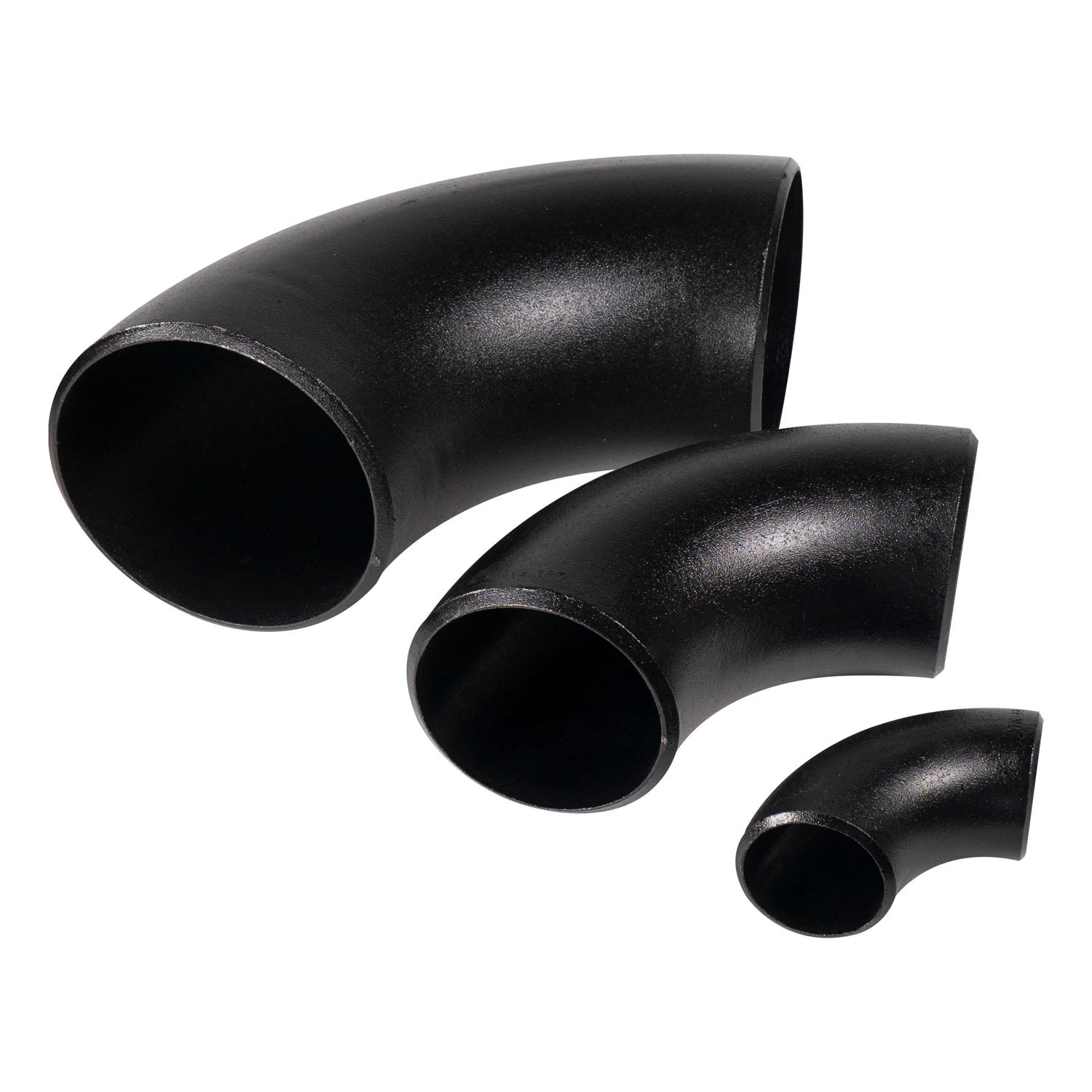

Seamless body naming, forged processing and welding attachment can concern different stages. Identify the accepted manufacturing route and the evidence needed for each relevant operation. Photographs of dark curved fittings cannot certify WPB composition or a seamless construction.

Dimension the 45-degree change of direction

Define what the 10 mm label measures and provide both end dimensions. Include the requested 45-degree angle, radius, center-to-end dimensions, bore, wall and tolerances on an approved drawing. Equal shape wording alone does not establish this geometry.

The 4 in overall length, 10cm height and 0.2-inch mounting-hole entries have separate dimensional roles. They cannot replace pipe-end sizes. Specify welding preparation and any NPT/BSPT feature by component and end, without assuming an interchangeable or mixed-end connection.

Agree water-system acceptance

Supply the actual medium, pressure, temperature, cycling and installation loads. Class 1000 naming needs its governing standard and material-temperature basis; low-pressure wording provides no numerical limit. Define the polished finish and inspection requirements without inferring corrosion resistance or water-service approval. Confirm requested OEM, ODM or OBM work and the stated three-year warranty terms in the quotation.
