Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe

Anti-corrosion High Temperature Flange Metal Expansion Joint Flexible Bellows Compensator for Water Supply Drainage Pipe
リンクをコピーしました

産業調達向け

明確なRFQを準備

RELIAが部品内容を理解し、次のステップを協議できるよう、以下をご提示ください。

  • 図面、サンプル、または参照規格
  • 材質グレードと希望製法
  • 寸法、公差、表面処理
  • 用途、予定数量、納入先
案件情��を送る メール WhatsApp Telegram

製造納期、梱包、出荷条件は、仕様と取引条件の合意後に案件ごとに確定します。
商品説明
  • warranty
    1 year
    customized support
    OEM, ODM
  • model number
    BEJ
    Technic
    Forged
  • Connectivity
    Flange
    shape
    Equal
  • head code
    Round
    Overall Length
    According to requirements
  • Height
    According to requirements
    Surface Treatment
    According to requirements
  • Pressure
    High Pressure
    System of Measurement
    inch
  • Mounting hole diameter
    According to requirements
    Pipe Features
    Flexible
  • Pipe Class
    According to requirements
    Application
    plumbing & water supply, natural gas & petroleum industry, oil & gas industry, water supply and drainage systems
  • Product name
    Stainless Steel Metal Expansion Joint
    Working Pressure
    PN10 - PN40
  • Maximum Temperature
    -10℃ - +300℃
    Applicable media
    Water, hot water, steam, oil, air, etc
  • Flange Standards
    ANSI, DIN, JIS, etc
    Nominal diameter
    DN50 - DN3000
  • Flange material
    Stainless steel 304, 316,etc.
    Bellows materia
    Stainless steel 304,316,etc.
  • Axial compention dosage
    ± 3.5 mm
    Manufacturer
    Yes, factory add: Gongyi City,China

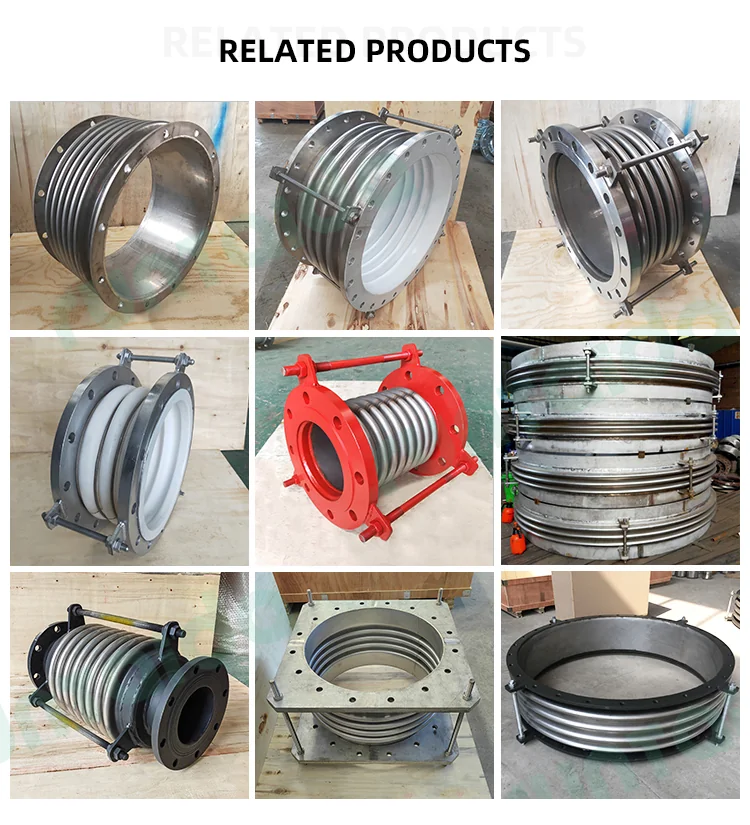

調達検討向け関連商品
