Painted Carbon Steel Equal Tee for Industrial Piping

• warranty

  1 Year
  customized support

  OEM
• model number

  Equal
  Technic

  FORGED
• Connectivity

  Welding
  shape

  Equal
• head code

  Hexagon
  Overall Length

  Customized Size
• Height

  Customized Size
  Surface Treatment

  Painting
• Pressure

  High Pressure
  System of Measurement

  Metric
• Mounting hole diameter

  Customized Size
  Pipe Features

  Other
• Pipe Class

  Other
  Application

  Other
• Thread Types

  Customized Size

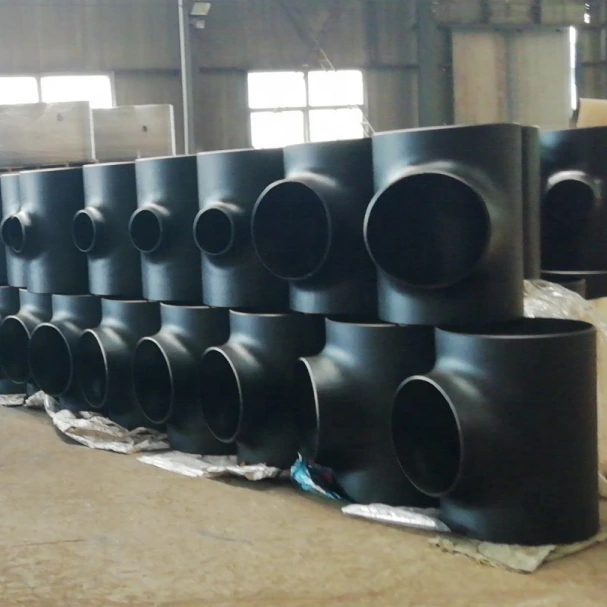

This industrial piping listing presents a painted carbon steel equal tee with butt-weld, B16.9 and A234 WPB references. The original image shows three-opening branch fittings, consistent with the tee family. However, both actual material selections carry the type label Reducer, so confirm the supplied item before ordering.

Match the equal tee drawing to the selected option

Ask the supplier to reconcile the Reducer selection with the title and Equal table entries. Obtain a drawing showing run and branch sizes, opening diameters, wall thickness and center-to-end dimensions. The photograph supports a branched fitting form without proving that every opening has an equal nominal size.

The size option spans half-inch to 110-inch wording rather than separate dimensioned selections. Establish the particular size offered, its dimensional tolerances and end preparation. Generic customized mounting and thread fields, together with the Hexagon head entry, should be checked against the drawing rather than used to define a welded tee.

Specify the material and painted surface evidence

Two material labels are available: Carbon Steel and a234wpb. Request the selected material grade, condition, traceability and inspection documents; do not assume the generic option carries verified WPB conformity. Forged and seamless wording likewise requires evidence for the actual manufactured item.

Painting does not identify the coating specification or protection level. Agree surface preparation, coating materials, thickness, curing and inspection requirements for the intended environment. The dark appearance in the image cannot establish a particular paint system or corrosion performance.

Review the industrial service and acceptance basis

Provide the fluid, operating pressure, temperature, cycles and mechanical loads for the selected tee assessment. High Pressure gives no numerical allowable rating. Confirm the applicable B16.9 edition and dimensions, welding and inspection requirements, and project acceptance records for the actual size and material offered.
