ASTM A234 WPB Carbon Steel Elbow | Seamless/Welded Enquiry

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This ASTM A234 WPB carbon steel elbow enquiry includes seamless/welded wording. Select the required body manufacturing route independently from the joining ends, then document the supplied component before accepting it for construction piping.

Document how the selected elbow body is produced

Seamless and welded wording does not create actual route variants. Agree the ordered manufacturing route and obtain production and inspection records. A forged requirement also needs evidence for the supplied body; curved appearance does not certify how it was made.

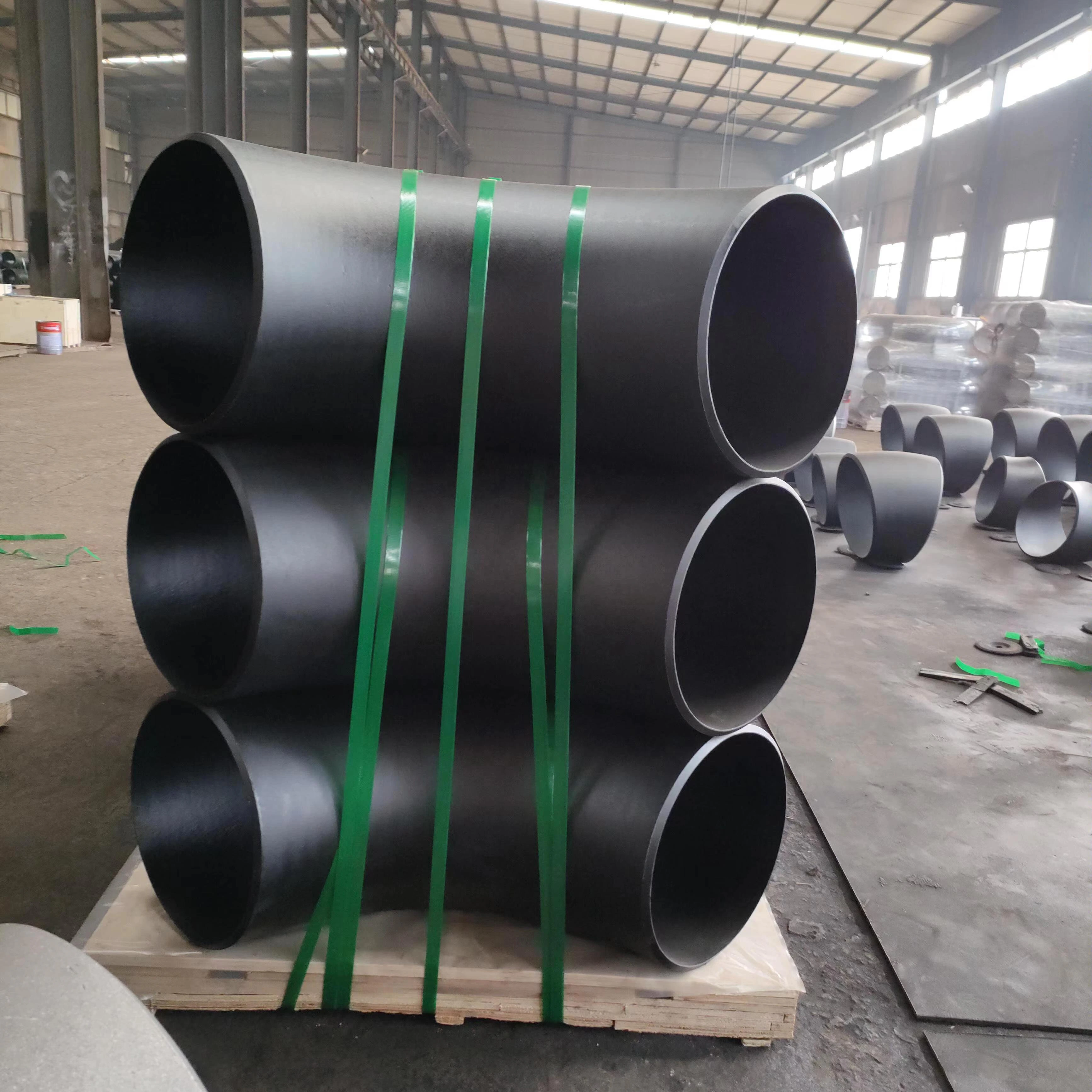

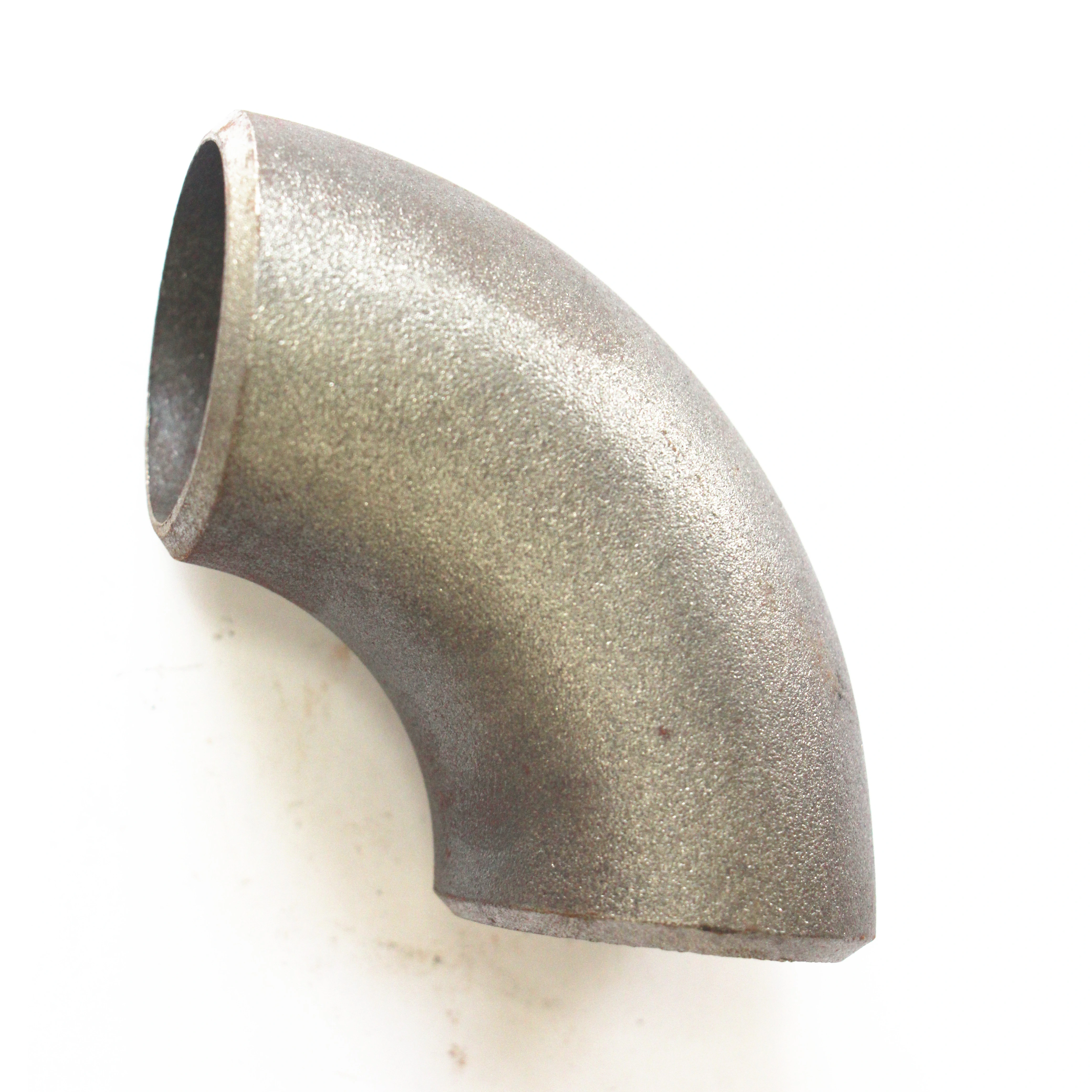

Request the exact ASTM A234 WPB product and grade evidence with heat traceability and material inspection documentation. Carbon Steel and the ASTM name alone do not certify compliance. Bright or dark reference photographs cannot determine the selected grade or manufacturing route.

Specify joining ends and measured bend dimensions

Obtain accepted end construction on the component drawing. A welded joint needs selected preparation, compatible pipe wall, procedure and inspection. Any threaded request needs its own thread size, form, engagement and mating-part acceptance. Do not assume one elbow meets both arrangements.

The sole actual Elbow / 1/2-inch to 12-inch / Carbon Steel selection is one range. Choose exact size and nominal or outside-diameter basis. Establish bend angle, radius, center-to-end dimensions, end diameters, bores, wall thickness and tolerances; no specific angle or radius is established by the text. Repeated ranges under length, height and mounting-hole diameter do not provide actual measurements. Bend and Hexagon wording cannot replace this drawing.

Qualify the finish and installed construction duty

Smooth and corrosion-resistant wording needs an accepted finish/coating specification and exposure assessment. Surface appearance does not identify coating chemistry or resistance to every fluid. Construction naming alone supplies no service approval.

Low Pressure and Not Rated define no numerical working envelope. Submit actual medium composition, temperature, pressure and cycling with the selected body route, accepted ends, complete measured drawing, material and production evidence and finish criteria. The assessment must cover the ordered elbow, mating pipe and complete installed joint.
