Name: 10-Inch Pipe Tee Standard and Wall Enquiry | Relia Industries
SKU: 191284229208836247191284014
Price: 5.00 USD
Availability: InStock

warranty

1 year

customized support

OEM
model number

Tee 1/2"--24"

Technic

Forged Casting
Connectivity

Welding

shape

Equal
head code

Round

Overall Length

4 in
Height

4

Surface Treatment

Painting
Pressure

Low Pressure

System of Measurement

inch
Mounting hole diameter

0.25 in

Pipe Features

Flexible
Pipe Class

125

Application

Agricultural Irrigation, Automotive Repair, Heating Systems
Thread Types

NPT

Name

Pipe Fitting Equal Tee
Material

Carbon Steel Stainless Steel Alloy Steel

Standard

ANSI JIS DIN ASME
Size

1/2' ~ 48'

Color

Customized Color
Packing

Wooden Case

Payment

TT LC
Thickness

STD XS SCH40 SCH80

Brand

SHENGTIAN
Delivery Time

7--20 days

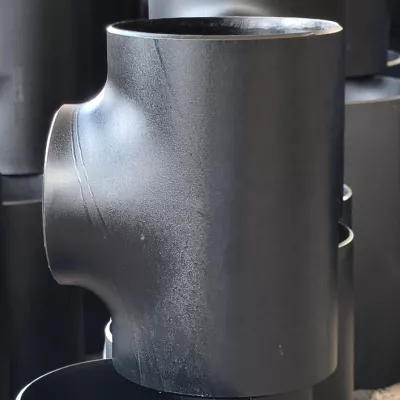

This page supports a ten-inch pipe tee enquiry with a specified standard and wall requirement. Choose TEE as the fitting type before defining the configuration. The available choices also include other fitting families, so the component type must be clear before a size or material selection can describe the intended tee.

Choose the tee configuration first

An elbow, cap, coupling, cross, flange or nipple is a different component from a tee. For a branch connection request, identify TEE explicitly and provide a drawing of the required arrangement. Confirm whether the branch is equal or reduced, then give the size at each run end and at the branch. A single size label does not describe the complete three-ended geometry.

Name one governing standard and wall requirement

State the exact standard number and edition required by the project. ASME, ANSI, DIN and JIS names should not be treated as interchangeable dimensional specifications. Select the required wall designation, whether a standard wall description or a particular schedule, and confirm its meaning under that specification. Provide the nominal size, actual outside diameter and wall at each end rather than assuming the ten-inch requirement is represented by every selectable dimension.

Complete the material and connection specification

Choose Carbon Steel, Stainless Steel or Alloy, then state the precise grade and material specification. Identify the connection form, mating pipe wall and any weld preparation for each end. Include design pressure, temperature and the service medium so that the selected tee can be assessed as a complete configuration. Ask for material, dimensional and construction confirmation before accepting standard compliance or a service rating. These details make the enquiry specific to the tee needed for the piping layout.
