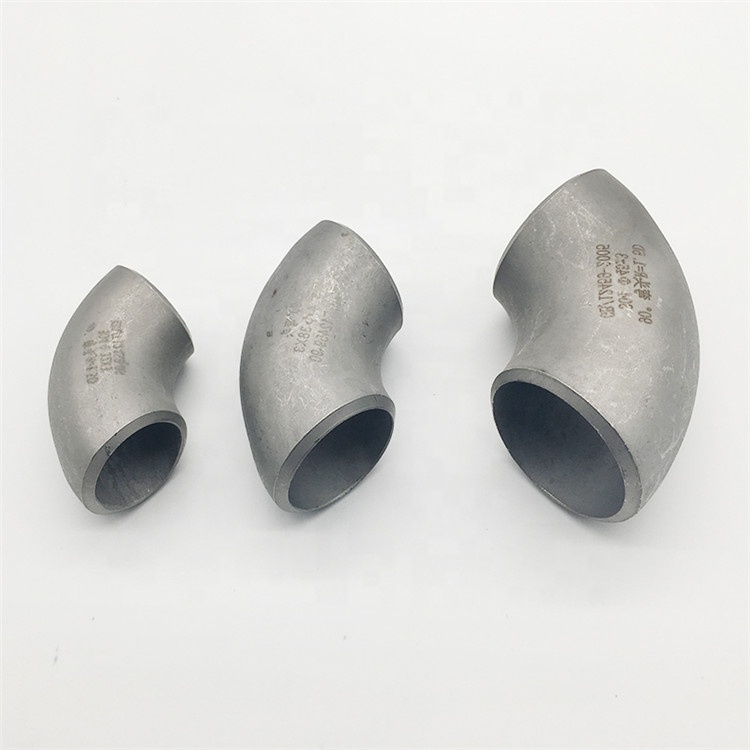

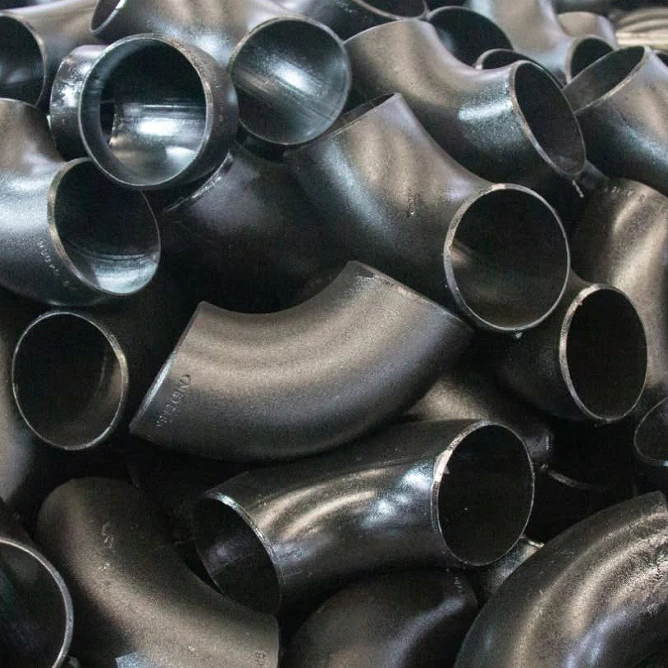

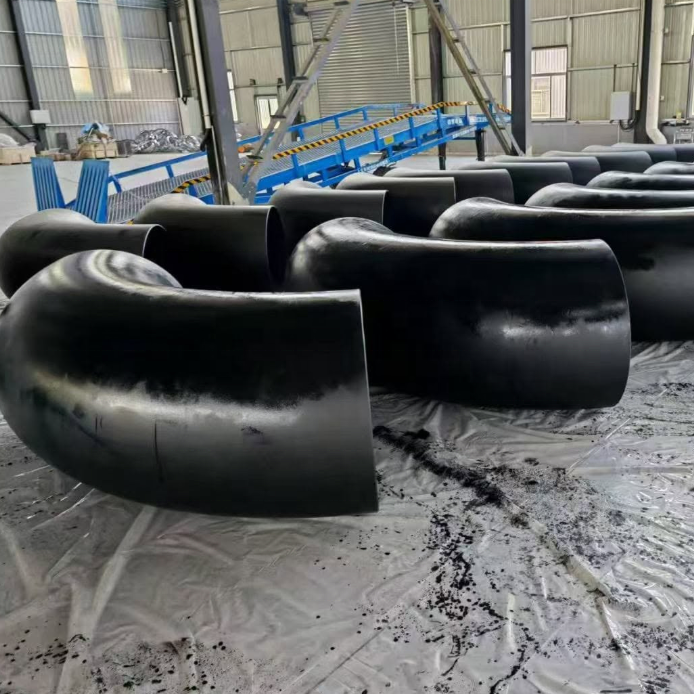

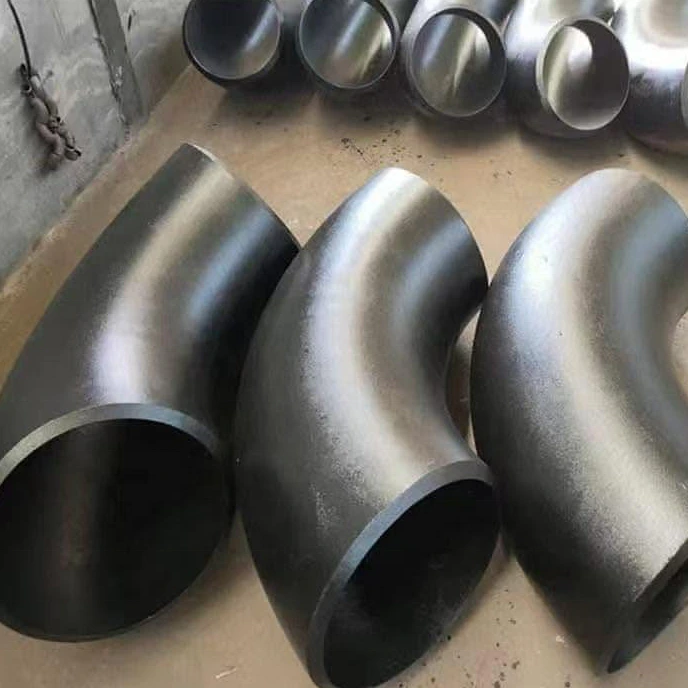

Coated Carbon Steel Elbow for Construction

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This construction engineering listing presents a carbon steel pipe elbow with anti-corrosion coating and forging references. The actual Carbon Steel elbow option covers a 1/2–12 inch size range. Confirm the proposed component, surface package and operating requirements before using the listing as a purchase specification.

Document the coating supplied with the elbow

Request the treatment chemistry, surface preparation, covered areas, thickness requirements and inspection criteria. Coated and Anti-Corrosion wording does not provide application records or demonstrated performance. Smooth and corrosion resistant entries in the table also leave the actual surface acceptance requirements to be agreed.

Define handling and preservation requirements for the selected coating package, including damage inspection and repair acceptance where specified by the project. Connect those requirements with the supplied material and intended environment. A broad resistance description does not establish a corrosion guarantee or service life.

Approve the bend and end drawing

The title references a welded elbow, but NPT is also listed in the table. Resolve the actual end configuration with a drawing and mating-pipe requirements. No bend angle or radius is supplied here; specify them together with nominal size, outside diameter, wall and center-to-end dimensions.

Repeated size ranges under length, height and mounting-hole diameter are not actual measurements, and Hexagon does not define the bend geometry. Request the carbon steel grade, condition, traceability and manufacturing records supporting FORGED, plus dimensional and end inspections for the selected component.

Agree the numerical construction duty

Describe the medium, contaminants, external exposure, pressure, temperature, cycles, transients and loads. Low Pressure and Not Rated do not establish allowable numerical limits. Confirm material, coating and dimensional documentation, marking, preservation, availability and delivery, while agreeing OEM requests and warranty terms separately from the technical service assessment.
