ANSI B16.9 Industrial Carbon Steel Tee for Oil, Gas & Petrochemical Enquiry

• warranty

  6 months
  customized support

  OEM
• model number

  Tee Pipe Fitting
  Technic

  Welding
• Connectivity

  Butt weld
  shape

  Equal
• head code

  round
  Surface Treatment

  Painting, Customized
• Mounting hole diameter

  0.25 in
  Pipe Class

  Not Rated
• Product name

  Tee Pipe Fitting
  Material

  Customized
• Application

  Petroleum, Natrual Gas, Water Disposa etc.
  Packing

  Carton Box+plastic Bag
• Type

  carbon elbow
  Size

  Customized Size
• Sample

  Provide Samples
  Keyword

  Tee Pipe Fitting
• Brand

  JIEYUE

This ANSI B16.9 industrial carbon steel tee enquiry targets oil, gas and petrochemical branch connections. Start with the actual process conditions and accepted component identification before selecting the end dimensions or joining requirements.

Set the process basis before accepting the branch

Application names do not approve an actual fluid. Define medium composition, temperature, pressure, cycling and environmental exposure for the complete installed joint. Not Rated supplies no numerical pressure-temperature envelope, so the operating basis needs documented assessment.

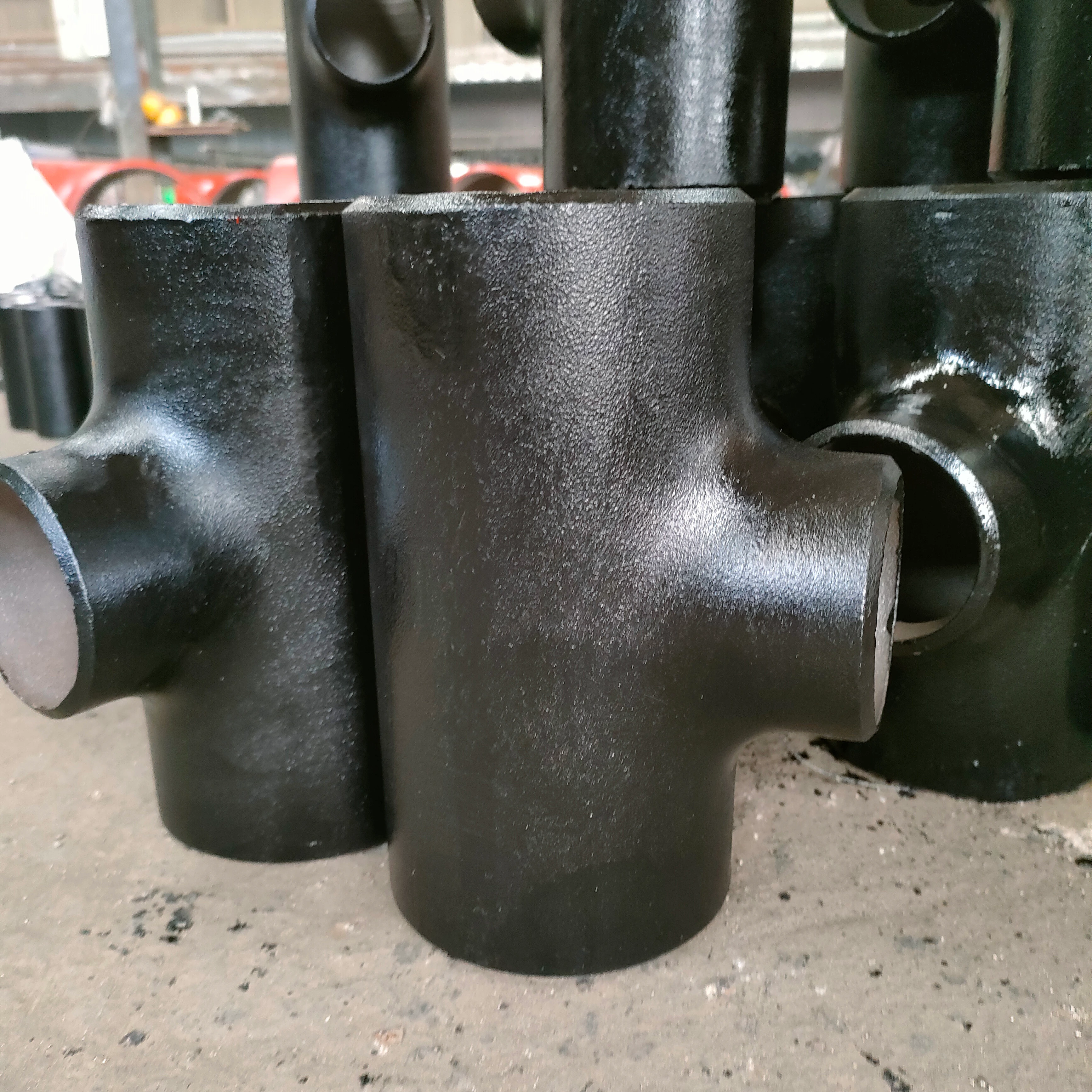

Confirm the actual supplied subtype. For tee supply, define run and branch diameters, bore and wall at all three openings, branch orientation, center-to-end measurements and tolerances. Equal needs measured confirmation. Dark three-opening photographs support comparison without proving delivered identity, equal geometry, grade or corrosion performance.

Resolve units and document the selected standard

The two actual TEE variants share the option 1/2' ~ 48'. Obtain explicit accepted units and exact ordered size rather than converting apostrophes or treating the range as separate available sizes. Customized Size and the 0.25-inch mounting-hole entry do not complete the pipe-end drawing.

Agree the required ANSI B16.9 document designation, edition and applicable scope with compliance evidence. The name alone does not establish standard equivalence or certification. Stainless Steel and Carbon Steel are actual alternatives; select an exact grade and product specification backed by heat-traceable material and inspection records.

Accept body manufacture, weld ends and paint separately

Obtain actual production evidence for the ordered body. Butt-weld joining separately needs selected end preparation, compatible pipe walls, welding procedure and inspection acceptance. Round wording does not define complete geometry or certify the manufacturing route.

Specify paint preparation, composition, coverage, thickness and weld-end treatment for the intended exposure. Brand wording does not establish manufacturer identity or origin. Submit process duty, accepted identity and units, complete end drawing, selected standard, material and production evidence and joining/coating criteria so dimensional fit and service suitability can be assessed together.
