304 / 316L Stainless Steel 90° / 45 Elbow Enquiry
Pour l’approvisionnement industriel
Préparez une RFQ plus claire
Indiquez les éléments ci-dessous afin que RELIA comprenne la pièce et discute avec vous de la prochaine étape.
- Plan, échantillon ou norme de référence
- Nuance du matériau et procédé préféré
- Dimensions, tolérances et finition de surface
- Application, quantité cible et destination
Délais de production, emballage et conditions d’expédition sont confirmés pour chaque projet après accord sur les spécifications et conditions commerciales.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow

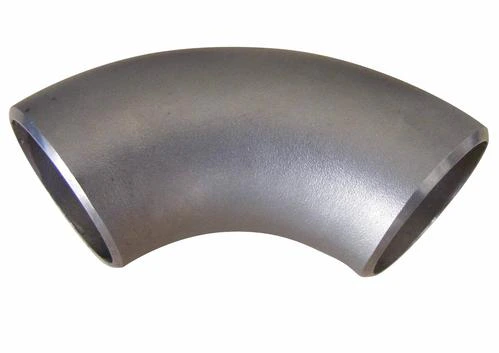

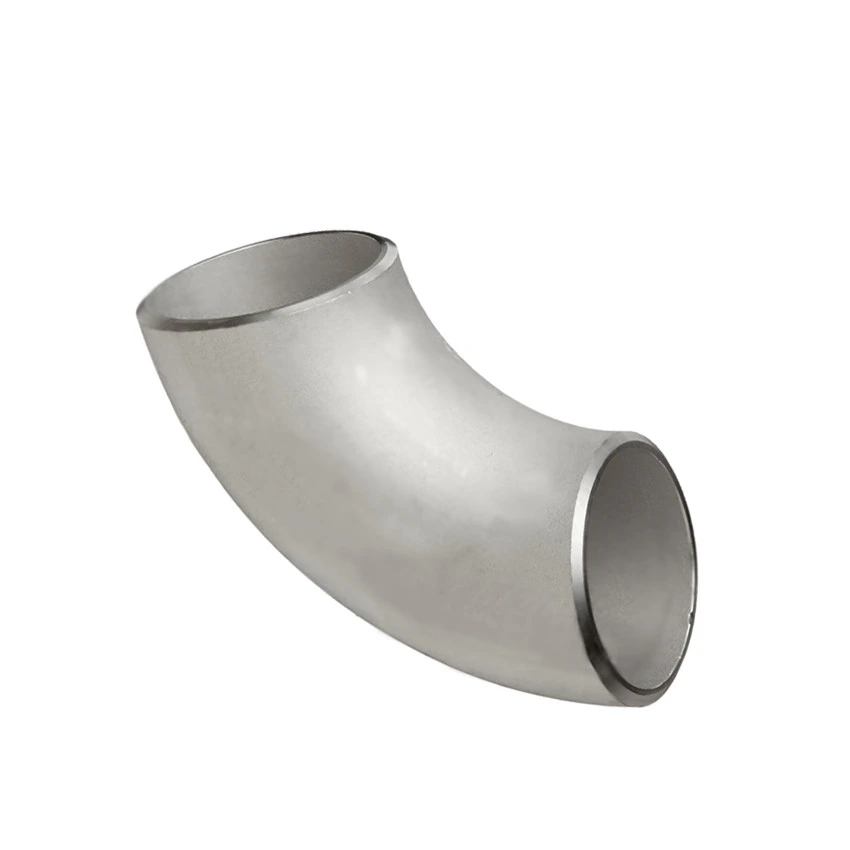

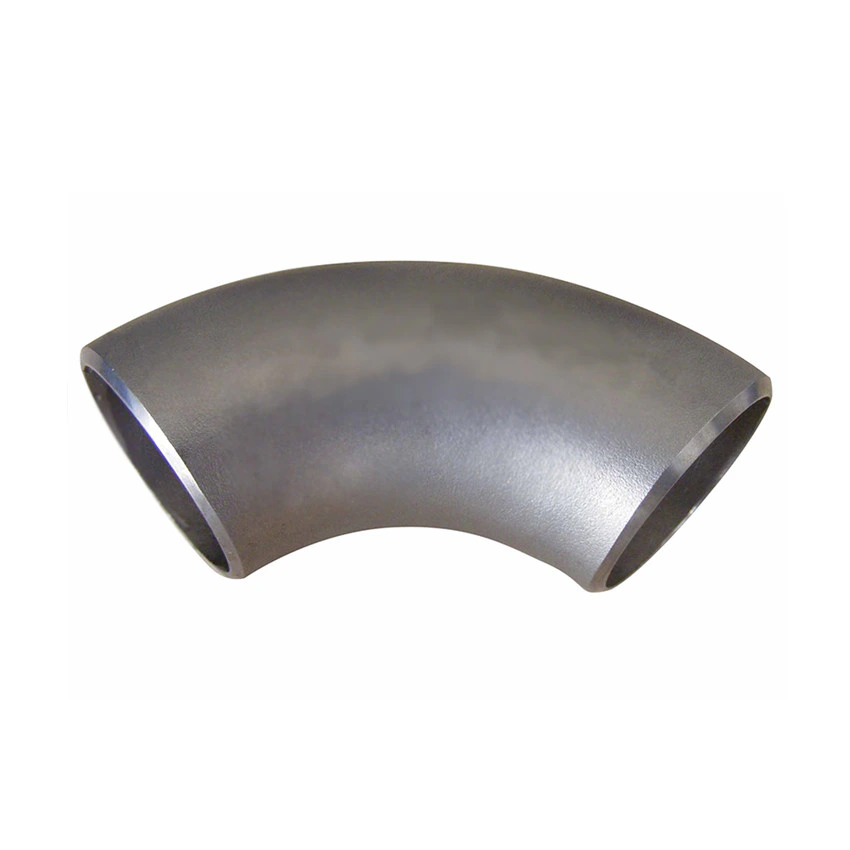

This stainless steel elbow enquiry references 304 and 316L alongside 90 Degree and 45 Elbow wording. Actual variants vary broad material and millimetre size without angle or exact-grade fields. Build one selected material-and-bend specification, and ask how it maps to the offered variant before accepting a directional pipe connection.
Link the variant to one bend drawing

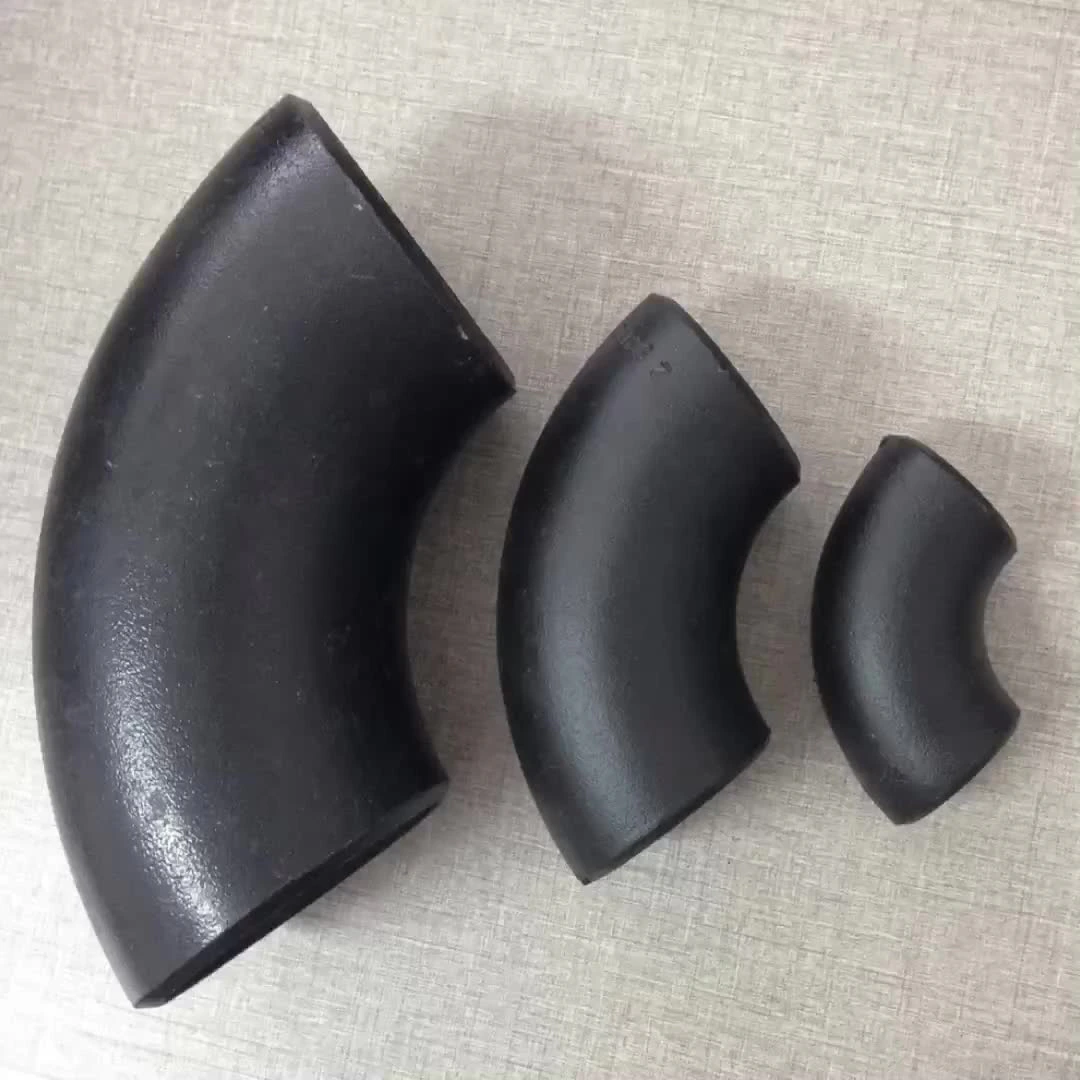

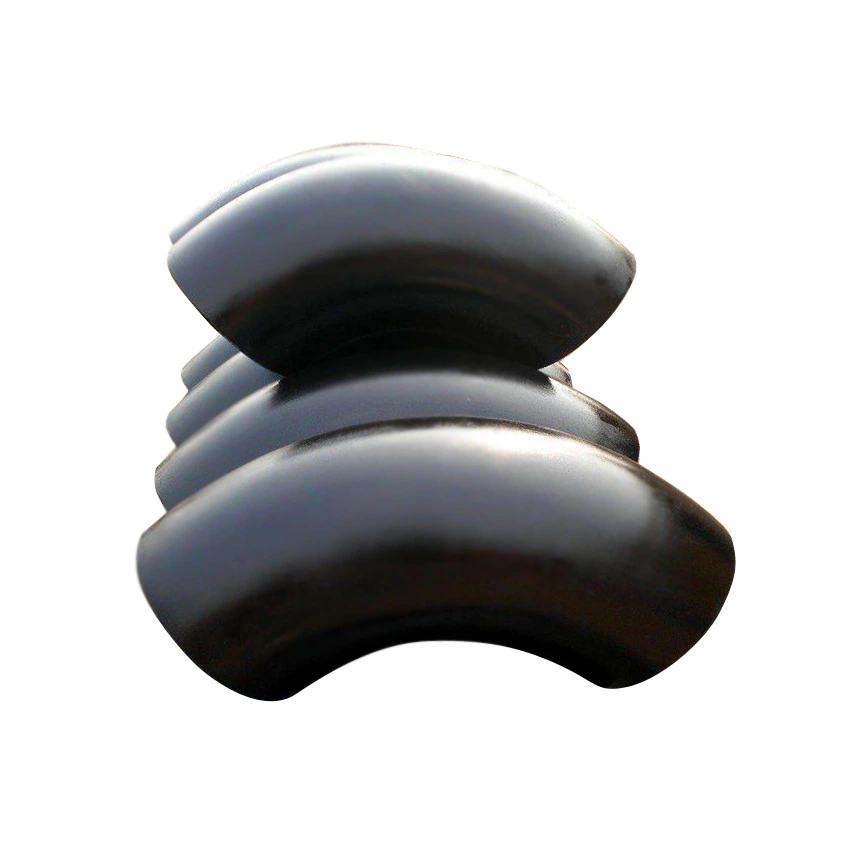

Confirm the requested ninety-degree configuration or clarify whether 45 means a forty-five-degree alternative. Obtain the angle offered for the selected variant with its tolerance, centreline radius, centre-to-end dimensions and orientation. The gallery's differently curved examples do not qualify that assignment. Explain each millimetre size convention and verify both outside diameters, actual walls and the Equal relationship. Generic Hexagon and mounting-hole entries are not measured bend dimensions.
Trace the chosen 304 or 316L material separately
Choose Stainless Steel for this enquiry and specify either 304 or 316L through a complete material document and traceable records. Do not assume dual qualification, universal grade coverage or identical suitability. Alloy and Carbon Steel alternatives need separate material specifications and joining assessment. State the required wall designation and applicable dimensional standard/edition; the source does not identify them. Appearance does not establish grade, wall or manufacture.
Check the documented end detail and complete pipe connection
Clarify Welding through the selected end preparation, alignment and joining procedure with both adjoining pipes. Verify Forged using production records and agree inspection access, coating and weld-zone condition beyond Painting. Establish the standard and unit basis of Pipe Class 150 for the selected material and temperature. Provide actual fluid, pressure, temperature, corrosion and bend loads for full assembly assessment. Customized Size does not prove supplied dimensions; accept against one traceable grade-angle pairing and documented joint evidence.
Informations techniques pour chaque demande produit
Préparez le besoin avant la confirmation finale du produit.
La page produit est un point de départ. Plans, échantillons, interfaces, matières, quantités et réception sont examinés avant confirmation du stock ou de la fabrication.
Discutez de ce produit dans le contexte de votre projet.
Partagez plan, échantillon, référence, quantité et application. Les points inconnus peuvent rester ouverts.
