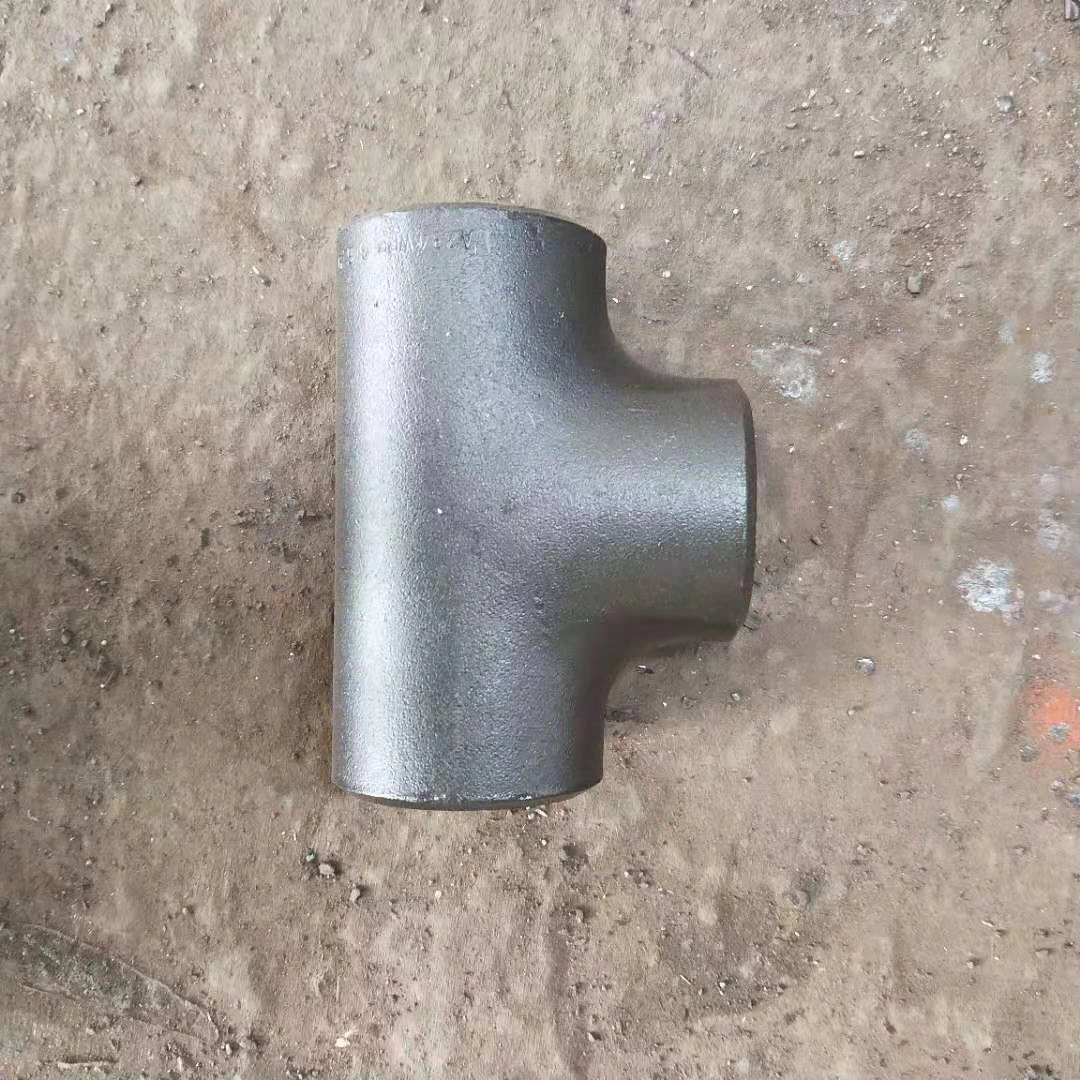

SCH5S A234 WPB Forged Equal Tee Pipe Fitting
Für industrielle Beschaffung
Eine klare RFQ vorbereiten
Mit den folgenden Angaben kann RELIA das Bauteil verstehen und den nächsten Schritt mit Ihnen besprechen.
- Zeichnung, Muster oder Referenznorm
- Werkstoffgüte und bevorzugtes Verfahren
- Abmessungen, Toleranzen und Oberfläche
- Anwendung, Zielmenge und Bestimmungsort
Fertigungszeit, Verpackung und Versandbedingungen werden nach Abstimmung von Spezifikationen und Handelskonditionen projektbezogen bestätigt.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
This SCH5S A234 WPB forged equal tee pipe fitting enquiry has conflicting family information. The title and table suggest an equal tee, while both actual variants are labelled Reducer. Confirm the supplied component before procurement; the source does not establish that those options represent the intended tee.
Identify the equal tee or actual reducer configuration
Request supplier confirmation and an accepted drawing. For a tee, specify all run/branch nominal sizes and equal or reducing geometry. If a reducer is actually supplied, obtain its correct two-end specification instead. Existing option labels remain unchanged pending reconciliation of the catalogue family.
The half-inch-to-110-inch range does not select actual end sizes or every possible combination. Obtain outside diameters, bores, wall thickness, center-to-end dimensions and joining preparation for the confirmed shape. Customized length, height and mounting-hole entries supply no measured values or proof of a hole feature.
Allocate SCH5S and the A234 WPB material records
Verify SCH5S against the selected size, material and accepted dimensional documents. Confirm the applicable B16.9 edition and configuration coverage rather than assuming the whole range is covered. A wall reference does not independently establish a numerical pressure rating or approved system performance.
Request the full selected material designation, condition, heat traceability and certificates supporting A234 WPB where intended. Carbon Steel and a234wpb are option labels. Obtain forging evidence, clarify Hexagon against the drawing and agree plain-surface inspection. Customized thread wording does not identify a thread standard.
Set operating conditions after the family is agreed
High Pressure and Other class leave accepted limits unspecified. Provide medium, pressure, temperature, corrosion exposure, cycling and loads for compatibility review. Agree matching pipe, joining, support, inspection, marking, material/process/dimensional records, warranty terms and quotation scope for the confirmed component.
Technische Angaben für jede Produktanfrage
Anforderung vor der endgültigen Produktbestätigung vorbereiten.
Die Produktseite ist der Ausgangspunkt. Zeichnungen, Muster, Schnittstellen, Werkstoffe, Mengen und Abnahme werden vor Lagerzuordnung oder Sonderfertigung geprüft.
Dieses Produkt im Projektkontext besprechen.
Teilen Sie Zeichnung, Muster, Referenz, Zielmenge und Anwendung mit. Offene Punkte können in der Prüfung bleiben.
