DN500 Carbon Steel Tee for Refineries
Für industrielle Beschaffung
Eine klare RFQ vorbereiten
Mit den folgenden Angaben kann RELIA das Bauteil verstehen und den nächsten Schritt mit Ihnen besprechen.
- Zeichnung, Muster oder Referenznorm
- Werkstoffgüte und bevorzugtes Verfahren
- Abmessungen, Toleranzen und Oberfläche
- Anwendung, Zielmenge und Bestimmungsort
Fertigungszeit, Verpackung und Versandbedingungen werden nach Abstimmung von Spezifikationen und Handelskonditionen projektbezogen bestätigt.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPaintingPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size

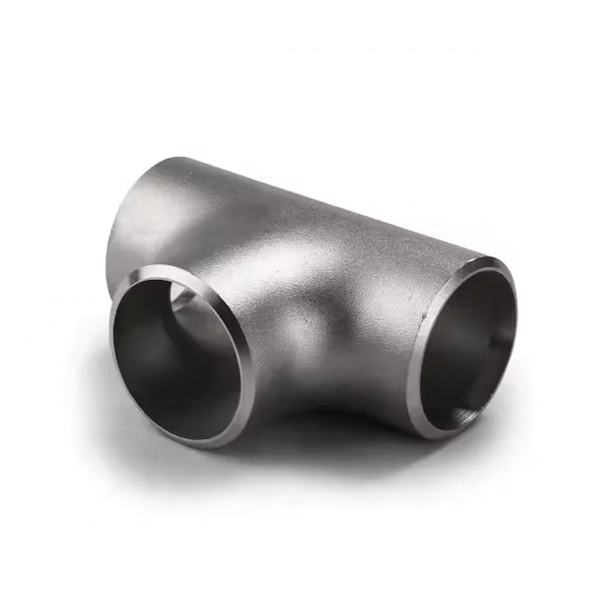

This petrochemical refinery listing describes a DN500 carbon steel tee with forging, equal-tee and painted references. Its original image supports a tee form, while the selectable types are labeled Reducer. Confirm the actual ordered tee and drawing before treating those title details as a complete component specification.
Confirm the DN500 configuration and branch sizes
DN500 is a nominal designation in the title, not a supplied outside-diameter measurement or confirmation of one available configuration. Define run and branch sizes, outside diameters, wall requirements and center-to-end dimensions on the selected drawing. Equal wording does not provide those actual dimensions.
Clarify the option labeled Reducer against the proposed tee and obtain the actual welding end details. The 1/2–110 inch range is broad listing information. Customized Size, Metric and Hexagon fields require an agreed drawing, units and tolerances rather than assumptions about the ordered component.
Review the steel and painting package
Request actual grade, condition and traceability records for the supplied material. Carbon Steel and a234wpb labels do not replace documentation. Identify the material and component specifications and editions required by the purchase, with production inspections supporting the recorded FORGED description.
Define paint chemistry, covered surfaces, thickness requirements and inspection criteria. Painting does not establish coating performance, and a product image cannot verify the actual supplied surface package. Agree material, dimensional, end and paint acceptance against the same approved drawing and documentation requirements.
Establish the refinery process acceptance
Provide fluid composition, contaminants, pressure, temperature, cycles, transients and loads. High Pressure and Other class leave numerical allowable limits unestablished. Assess the actual tee and joint under the refinery requirements without assuming general chemical compatibility. Confirm inspections, marking, preservation, availability and delivery, with OEM and warranty terms agreed separately.
Technische Angaben für jede Produktanfrage
Anforderung vor der endgültigen Produktbestätigung vorbereiten.
Die Produktseite ist der Ausgangspunkt. Zeichnungen, Muster, Schnittstellen, Werkstoffe, Mengen und Abnahme werden vor Lagerzuordnung oder Sonderfertigung geprüft.
Dieses Produkt im Projektkontext besprechen.
Teilen Sie Zeichnung, Muster, Referenz, Zielmenge und Anwendung mit. Offene Punkte können in der Prüfung bleiben.
