JIS B2312 Carbon Steel 90-Degree Elbow, Low-Pressure Fitting Enquiry

• warranty

  1 Year
  customized support

  OEM, odm
• Technic

  CASTING
  Connectivity

  Female
• shape

  Reducing
  head code

  Other
• Overall Length

  4 in
  Height

  4
• Surface Treatment

  Other
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  0.25 in
• Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features
  Pipe Class

  150
• Application

  Other
  Thread Types

  NPT

This carbon steel elbow is presented for a 90-degree direction change with JIS B2312 and low-pressure enquiry wording. The available selection is Elbow / 10 mm / Carbon Steel. Define the complete reducing connection before accepting the fitting for your pipe layout.

Specify the reduction and the bend envelope together

For reducing construction, identify both end diameters and their nominal or outside-diameter basis, bore and wall thickness. Include bend radius, center-to-end dimensions, orientation and tolerances. The single 10 mm selection does not establish a complete large-by-small pair.

Confirm how the 4 in overall length applies to the ordered elbow. Request an explicit unit for the height value of 4, and establish whether the 0.25 in mounting-hole entry applies to its construction. General INCH wording does not complete the dimensional drawing.

Accept the actual female NPT and material requirements

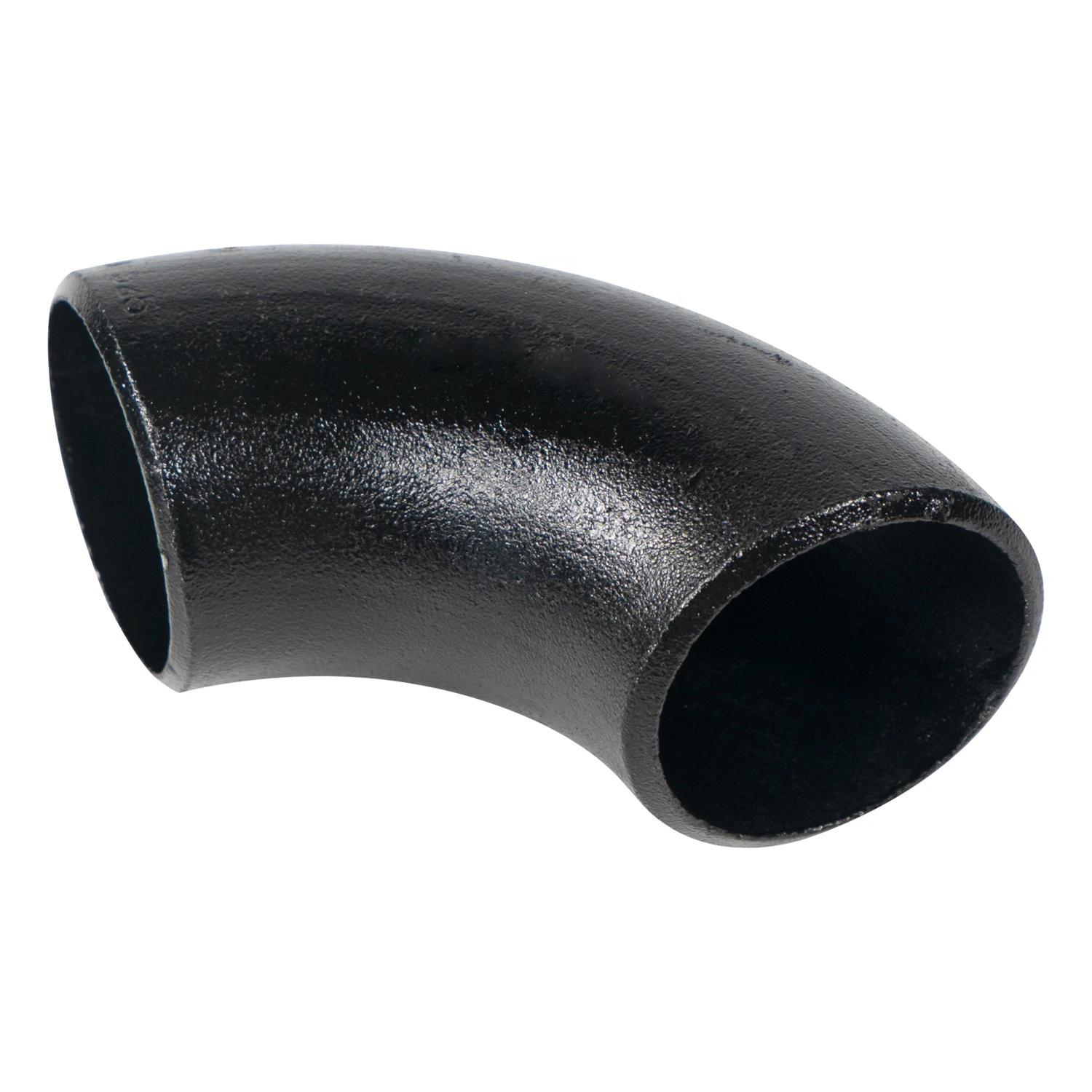

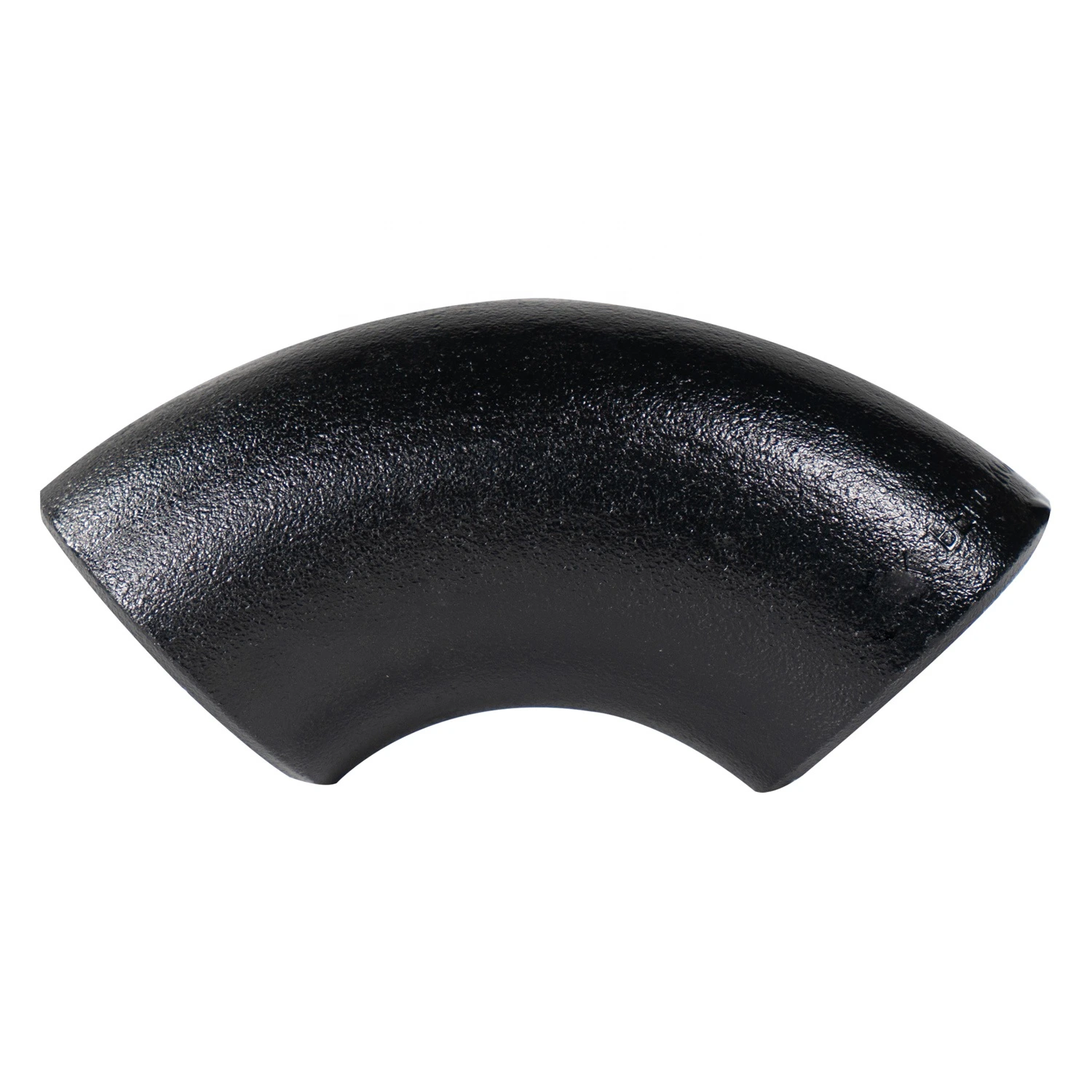

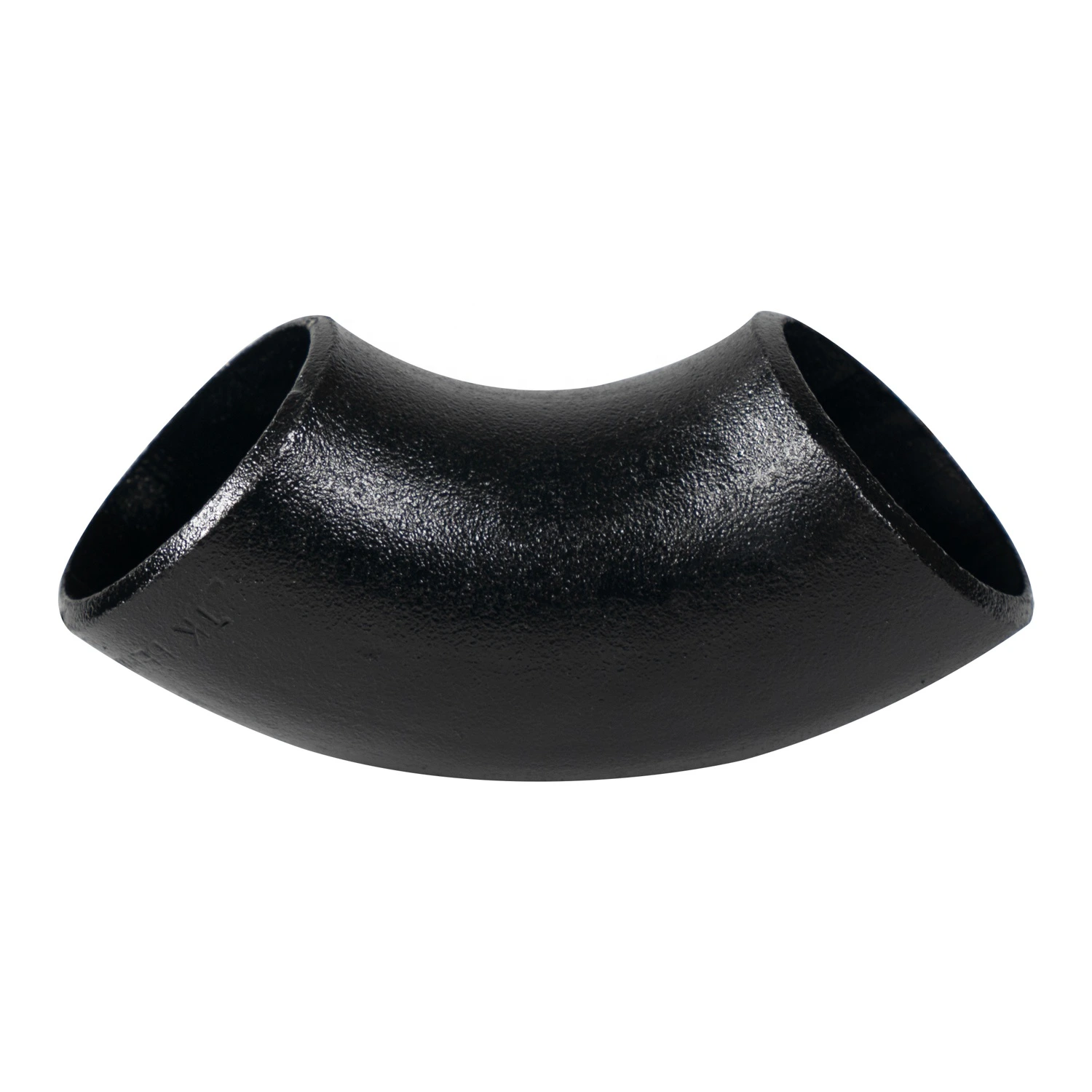

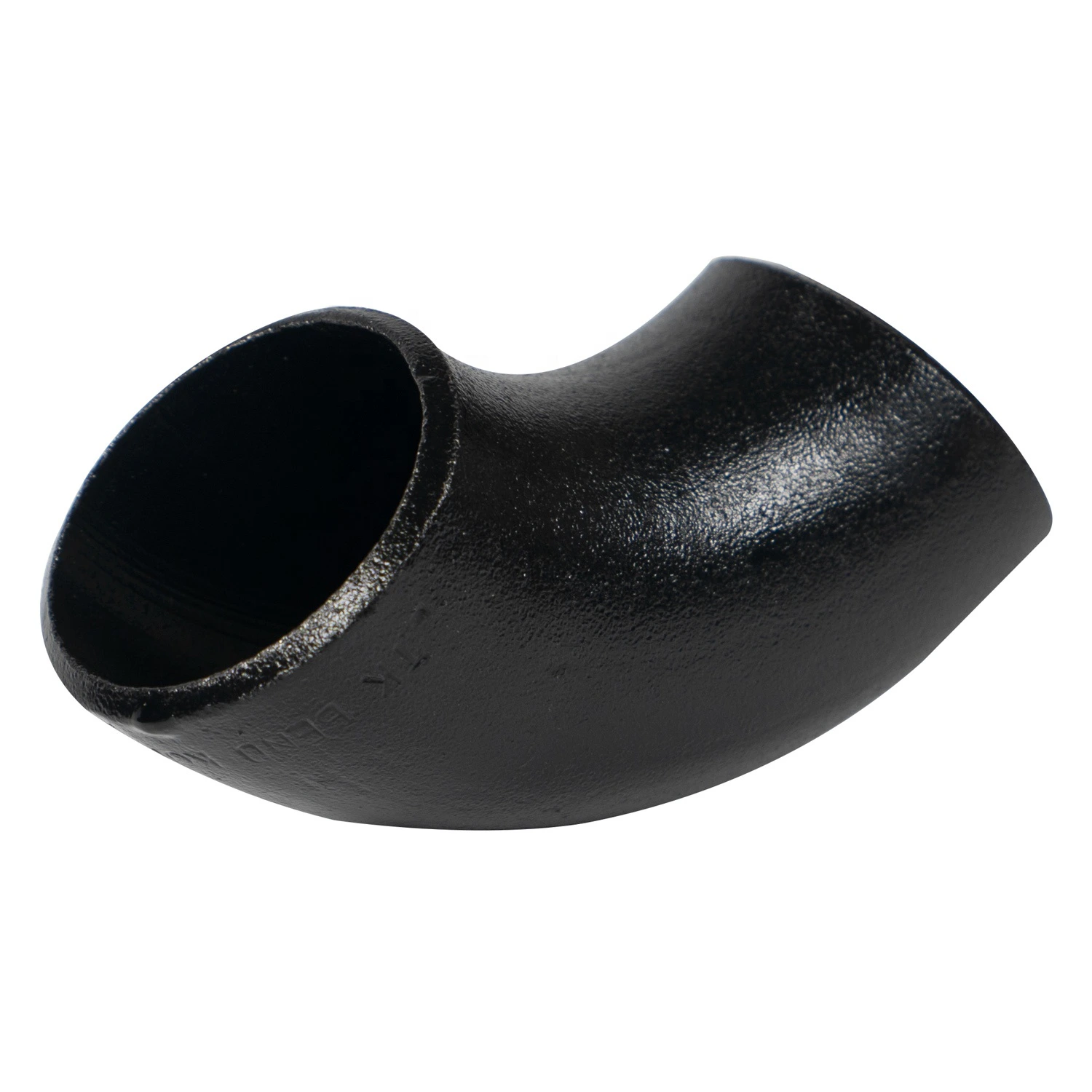

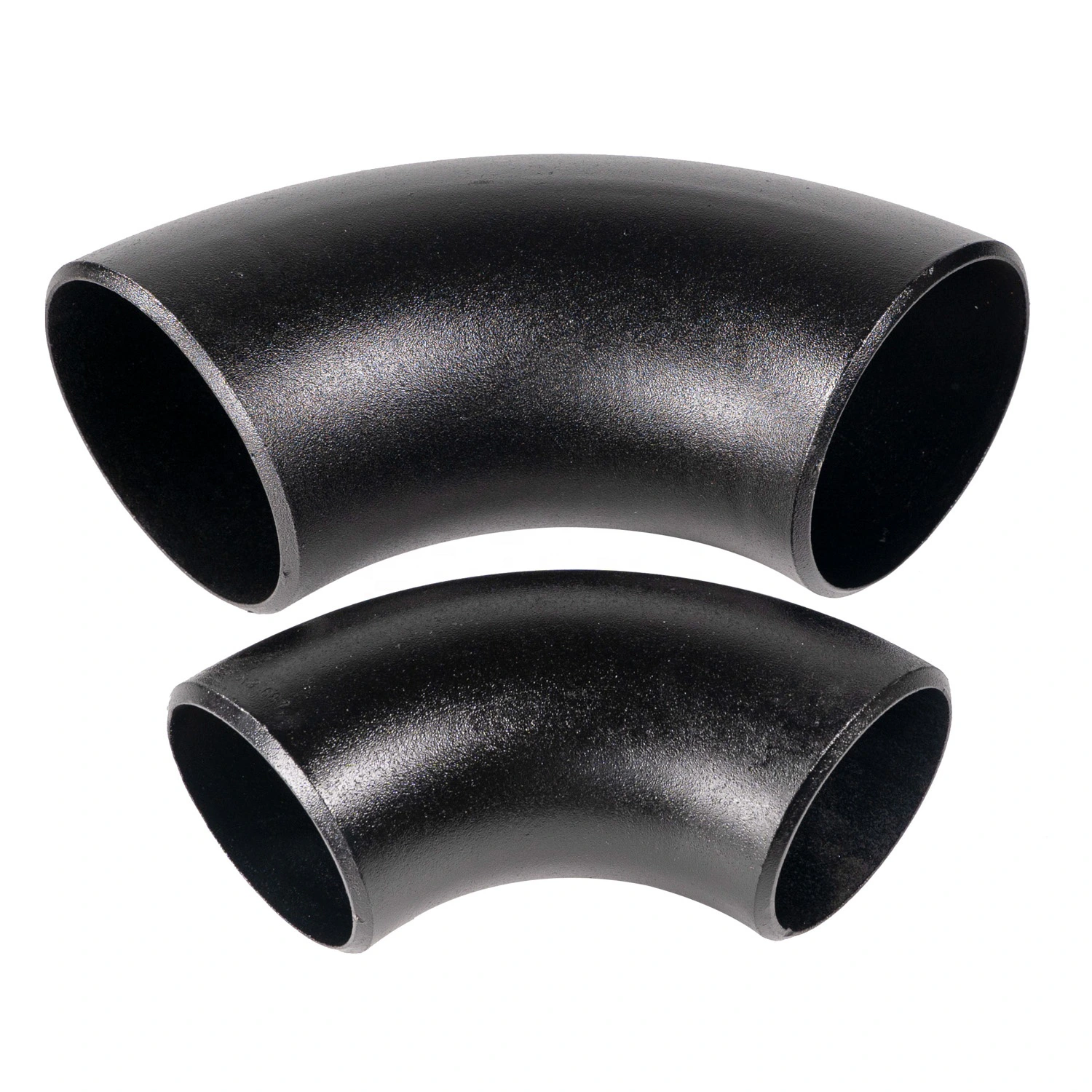

For a female NPT request, agree thread size at each end, mating compatibility, engagement and gauging requirements. The photographs help compare elbow form; they cannot verify internal thread construction or the ordered dimensions.

Request the exact carbon steel specification, grade and traceable material certificate. Agree the casting route and inspection requirements. A JIS B2312 enquiry needs an accepted standard edition, applicability to the selected construction and documentary compliance evidence.

Qualify low-pressure duty and every required resistance

Low Pressure and class 150 wording do not define a numerical working envelope or mean 150 psi. Supply the medium, operating temperature, pressure and cycling for assessment of the complete connection.

Any required flexibility, corrosion, chemical or UV resistance needs relevant conditions and supporting tests. Confirm the surface treatment rather than assuming a coating from appearance. Send the complete reducing-end drawing, thread inspection, material and casting requirements, standard acceptance and operating duty with your enquiry.
