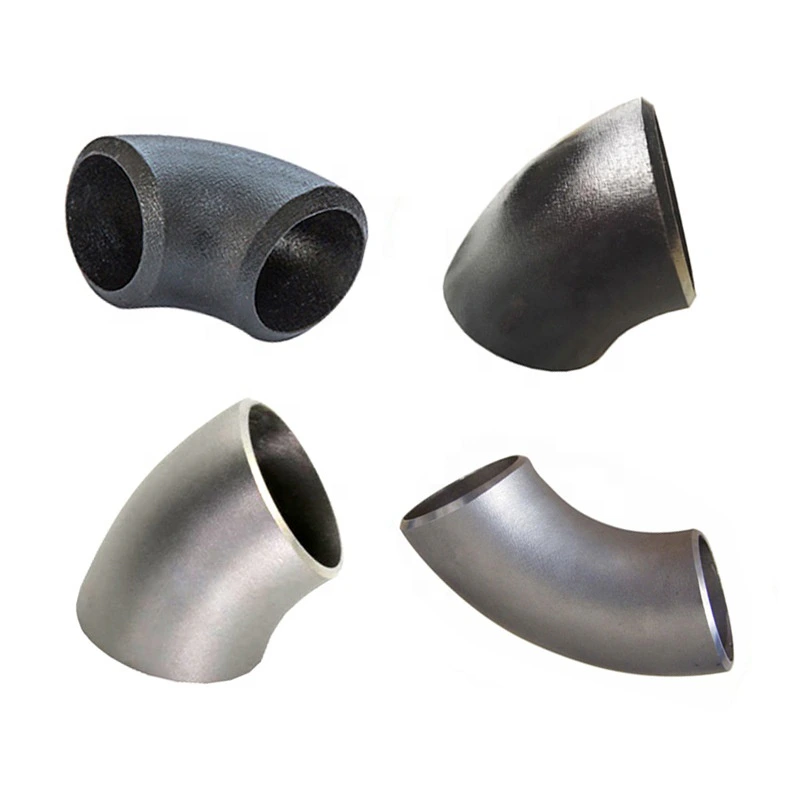

B16.9 Carbon Steel 45°/90° Weld Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This B16.9 carbon steel weld elbow listing offers a45-degree or90-degree enquiry context. The single catalogue variant specifies Elbow/Carbon Steel and a half-inch-to12-inch range, without separate angle selections. Identify the required angle and individual nominal size in the order.

Select one angle and its matching geometry

Request a drawing showing the chosen angle, radius, center-to-end dimensions, outside diameter, bore, wall thickness and tolerances. The title does not establish long-radius construction or a numerical schedule. Confirm actual availability for the chosen configuration rather than extending the range to every possible combination.

Welding connectivity appears beside an NPT table entry. Obtain the actual end construction, preparation and mating pipe interface before installation. Do not assume a threaded/welded hybrid. The Hexagon head code likewise needs clarification against the drawing for the selected elbow.

Allocate standards and manufacturing evidence

B16.9 and GB/T12459 are source references. Agree the governing document, edition and selected size/material provisions instead of presuming dimensional interchangeability. Request the full carbon steel grade, condition, traceability and certificates; no WPB designation is established by this record.

Obtain manufacturing records supporting seamless and forged wording. Define the smooth surface and inspection criteria. Overall Length, Height and Mounting hole diameter repeat the size range, so they cannot supply measured geometry or prove a hole feature. Use approved individual dimensions for procurement.

Set project conditions and enquiry scope

Low Pressure and Not Rated leave numerical duty unconfirmed. Specify medium, pressure, temperature, cycling, loads and corrosion compatibility, then obtain system approval. Agree joining procedure, alignment, inspection, marking, records and quotation scope. OEM support should be discussed for the actual requirement; it does not establish factory ownership.
