3PE-Coated Carbon Steel Tee for Oil and Gas
Für industrielle Beschaffung
Eine klare RFQ vorbereiten
Mit den folgenden Angaben kann RELIA das Bauteil verstehen und den nächsten Schritt mit Ihnen besprechen.
- Zeichnung, Muster oder Referenznorm
- Werkstoffgüte und bevorzugtes Verfahren
- Abmessungen, Toleranzen und Oberfläche
- Anwendung, Zielmenge und Bestimmungsort
Fertigungszeit, Verpackung und Versandbedingungen werden nach Abstimmung von Spezifikationen und Handelskonditionen projektbezogen bestätigt.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPaintingPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size

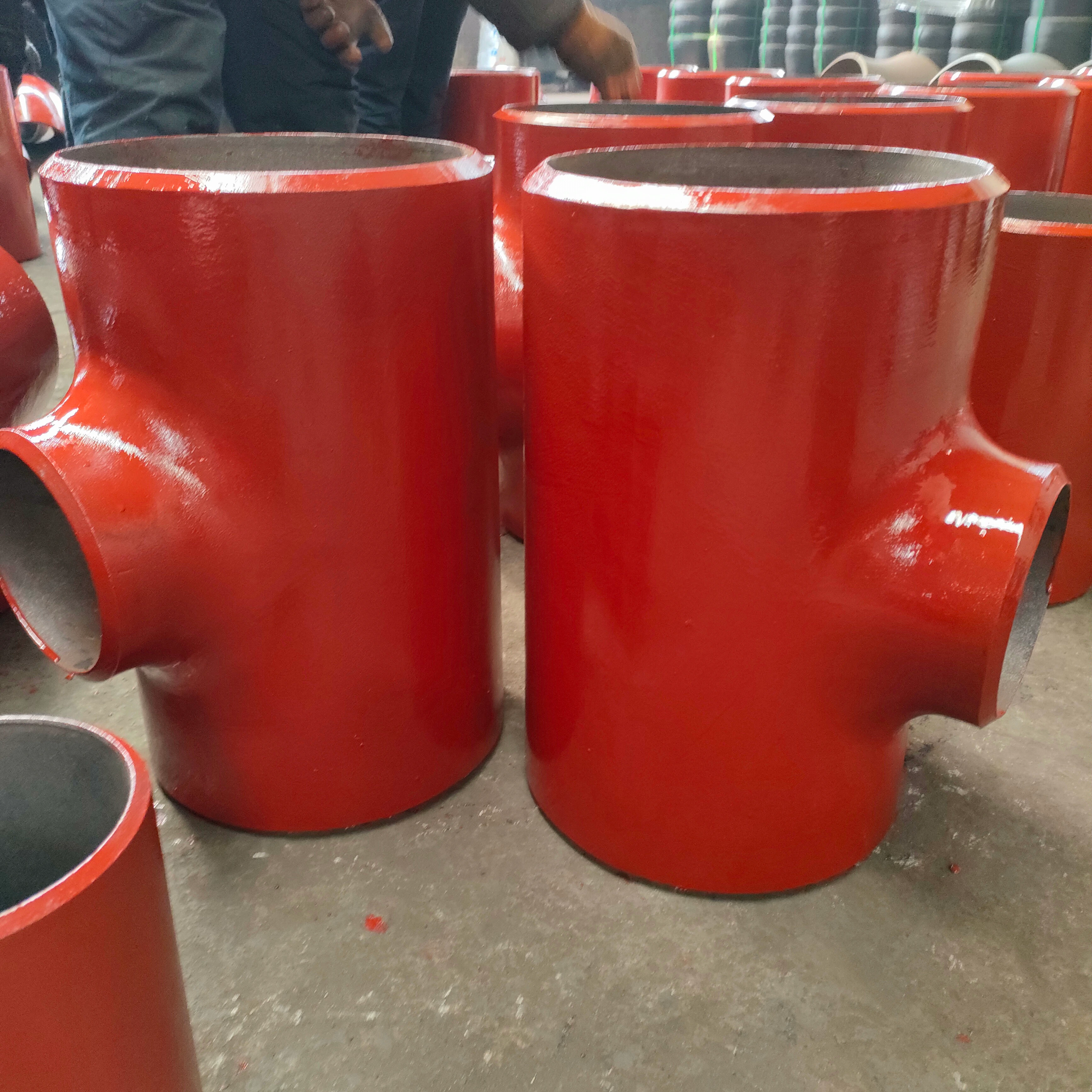

This oil and gas listing describes a carbon steel tee with 3PE coating and API 5L X70 references. The table records Painting, while the selectable types are labeled Reducer. The original image supports a tee form; confirm the actual ordered component, coating and material package before approval.
Specify the actual 3PE surface package
Obtain the coating specification, required layers and materials, covered surfaces, thickness and inspection criteria. Clarify how the 3PE title relates to the Painting entry. The image cannot identify the coating layers or demonstrate the supplied treatment, so use the actual application and inspection records.
Define the surface acceptance, preservation and handling requirements for the selected package. Confirm the areas covered by coating and those subject to the mating-joint requirements. A coating name or visible color does not establish corrosion performance or approval for every oil and gas environment.
Confirm tee material and pipeline drawing
Clarify the API 5L X70 reference against the actual fitting specification and adjoining pipe requirements. Request supplied grade, condition and traceability records; Carbon Steel and a234wpb labels do not provide a certificate. Agree production evidence supporting the Forged and Seamless references.
Provide run and branch sizes, outside diameters, wall requirements, center-to-end dimensions and actual welding ends. Confirm how the tee maps to the selected option. Equal, Customized Size, Metric and Hexagon fields do not supply measurements, and the broad 1/2–110 inch range does not establish an ordered configuration.
Set oil and gas acceptance requirements
Describe the actual medium, composition, contaminants, pressure, temperature, cycles, transients and loads. High Pressure and Other class leave numerical allowable limits unspecified. Assess the selected material, joint and coating under the pipeline requirements, then confirm dimensional, end and coating inspections, documentation, marking, preservation and delivery for the approved component.
Technische Angaben für jede Produktanfrage
Anforderung vor der endgültigen Produktbestätigung vorbereiten.
Die Produktseite ist der Ausgangspunkt. Zeichnungen, Muster, Schnittstellen, Werkstoffe, Mengen und Abnahme werden vor Lagerzuordnung oder Sonderfertigung geprüft.
Dieses Produkt im Projektkontext besprechen.
Teilen Sie Zeichnung, Muster, Referenz, Zielmenge und Anwendung mit. Offene Punkte können in der Prüfung bleiben.
