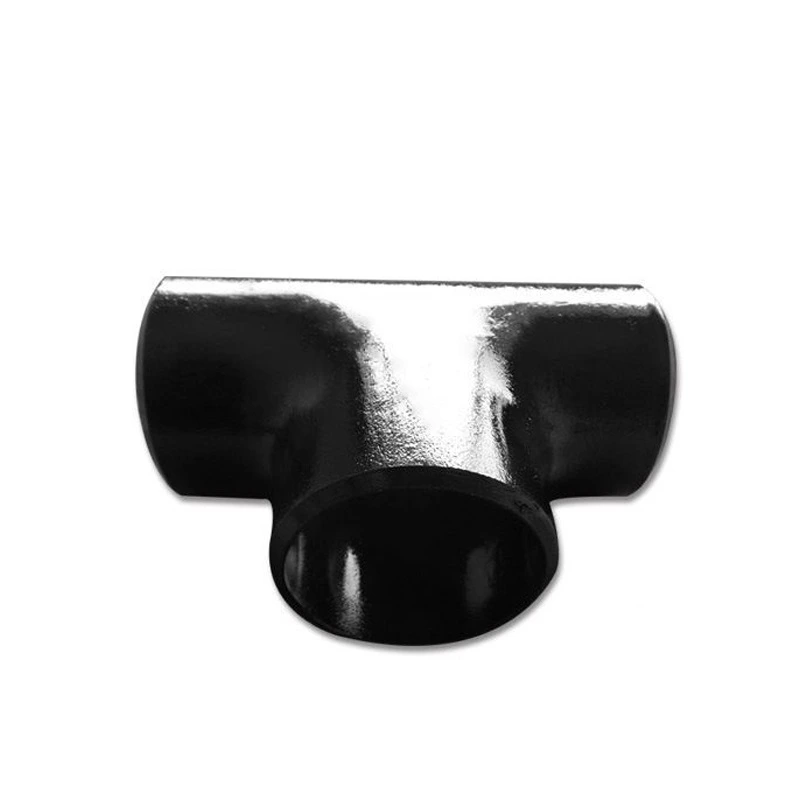

ANSI Carbon Steel Seamless Butt-Weld Equal Tee Enquiry | 1/2 Size Confirmation
Für industrielle Beschaffung
Eine klare RFQ vorbereiten
Mit den folgenden Angaben kann RELIA das Bauteil verstehen und den nächsten Schritt mit Ihnen besprechen.
- Zeichnung, Muster oder Referenznorm
- Werkstoffgüte und bevorzugtes Verfahren
- Abmessungen, Toleranzen und Oberfläche
- Anwendung, Zielmenge und Bestimmungsort
Fertigungszeit, Verpackung und Versandbedingungen werden nach Abstimmung von Spezifikationen und Handelskonditionen projektbezogen bestätigt.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesCustomized SizePipe ClassCarbon Steel
-
ApplicationShipbuilding, Oil Field, Offshore, Water System, Natural GasThread TypesCustomized Size
Confirm the size notation for this ANSI-referenced carbon-steel seamless butt-weld equal-tee enquiry. The title ends in 1/2 without a stated unit. Record the intended nominal size and governing document before arranging connected pipe; the wording alone does not establish a complete component specification.
Confirm the branch relationship and supplied identity

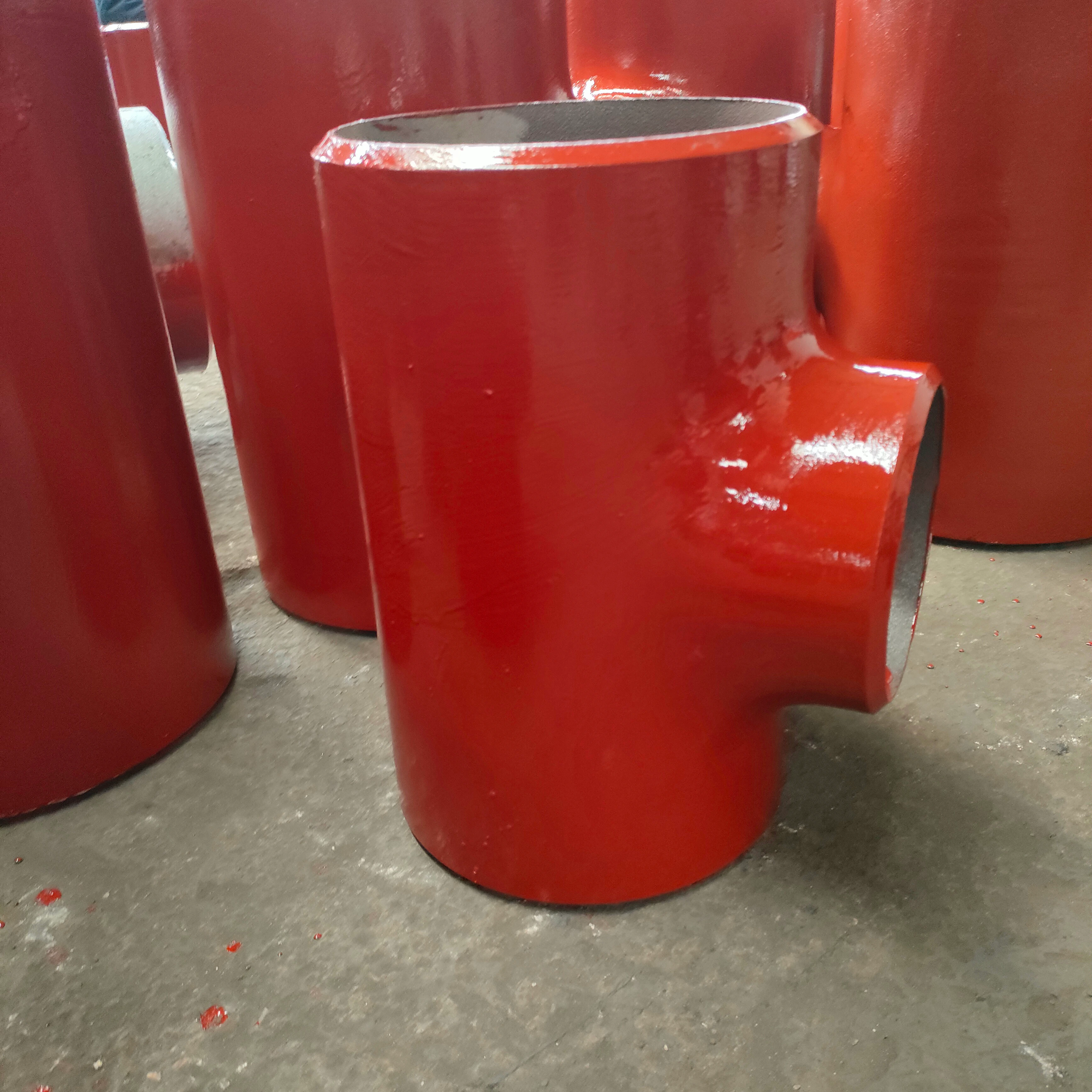

The actual type option reads Reducer while the title describes an Equal Tee. Reference images show branched forms with different apparent proportions. Obtain the actual supplied drawing rather than inferring equal-end geometry from photographs. Define each run and branch diameter, branch angle, center-to-end distances, wall/end thickness, butt-weld preparation and tolerances.
Two recorded choices share one 1/2-to-110-inch label with Carbon Steel or a234wpb wording. Clarify the relationship to the title's unit-free notation and Metric table entry. Confirm individual size availability; a range-like label is not a continuous supply commitment. Resolve Hexagon and customized length, height, hole, feature and thread entries through relevant drawing requirements.
Approve seamless manufacture and the delivered surface
Specify the exact governing standard, part and edition rather than expanding ANSI into an unstated document. Establish full material designation, grade, condition and traceability; generic material choices are not conformity certificates. Request evidence for the intended seamless body and actual production route.
Interpret FORGED technique separately from Welding installation attachment. Seamless construction and butt-weld joining concern different requirements. Agree Plain supplied surface condition against the red/dark references without assuming coating chemistry, corrosion resistance or protective performance from color.
Document the numerical operating and inspection basis
High Pressure lacks a numerical rating; Carbon Steel under Pipe Class is material wording. Supply medium, pressure, temperature, cycling, loads and connected joint conditions. Listed industrial applications require relevant acceptance. Agree material/manufacturing/dimensional and joint inspection, installation, marking/traceability, confirmed size supply, OEM deliverables and stated one-year warranty terms.
Technische Angaben für jede Produktanfrage
Anforderung vor der endgültigen Produktbestätigung vorbereiten.
Die Produktseite ist der Ausgangspunkt. Zeichnungen, Muster, Schnittstellen, Werkstoffe, Mengen und Abnahme werden vor Lagerzuordnung oder Sonderfertigung geprüft.
Dieses Produkt im Projektkontext besprechen.
Teilen Sie Zeichnung, Muster, Referenz, Zielmenge und Anwendung mit. Offene Punkte können in der Prüfung bleiben.
