ANSI / ASME B16.5 A182 F304 RF Forged Stainless Threaded Flange

• warranty

  1 year
  customized support

  OEM, ODM, OBM
• model number

  flange 6589
  Technic

  Forged
• Connectivity

  Welding
  shape

  Equal
• head code

  Hexagon
  Overall Length

  4 in
• Height

  2
  Surface Treatment

  Smooth
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant
• Pipe Class

  125
  Application

  petrochemical industry, Shipbuilding, Construction Engineering
• Thread Types

  NPT

This ANSI/ASME B16.5 A182 F304 RF forged stainless threaded flange enquiry addresses a selected pipe joint and mating face. Carbon steel alternatives are also selectable. Confirm the actual joining design, facing dimensions and material specification before accepting a variant.

Thread designation and raised-face drawing

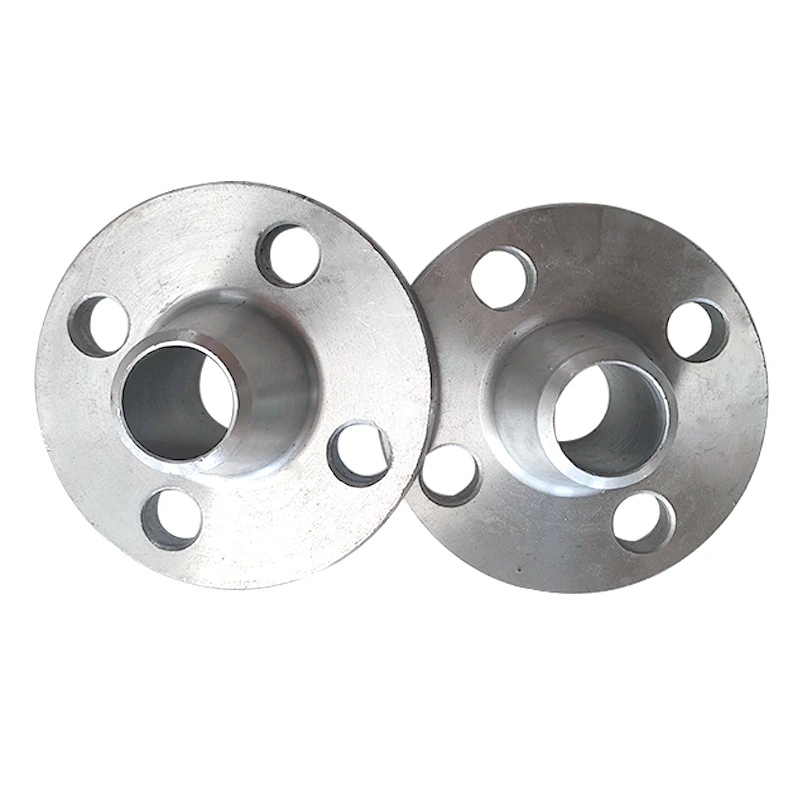

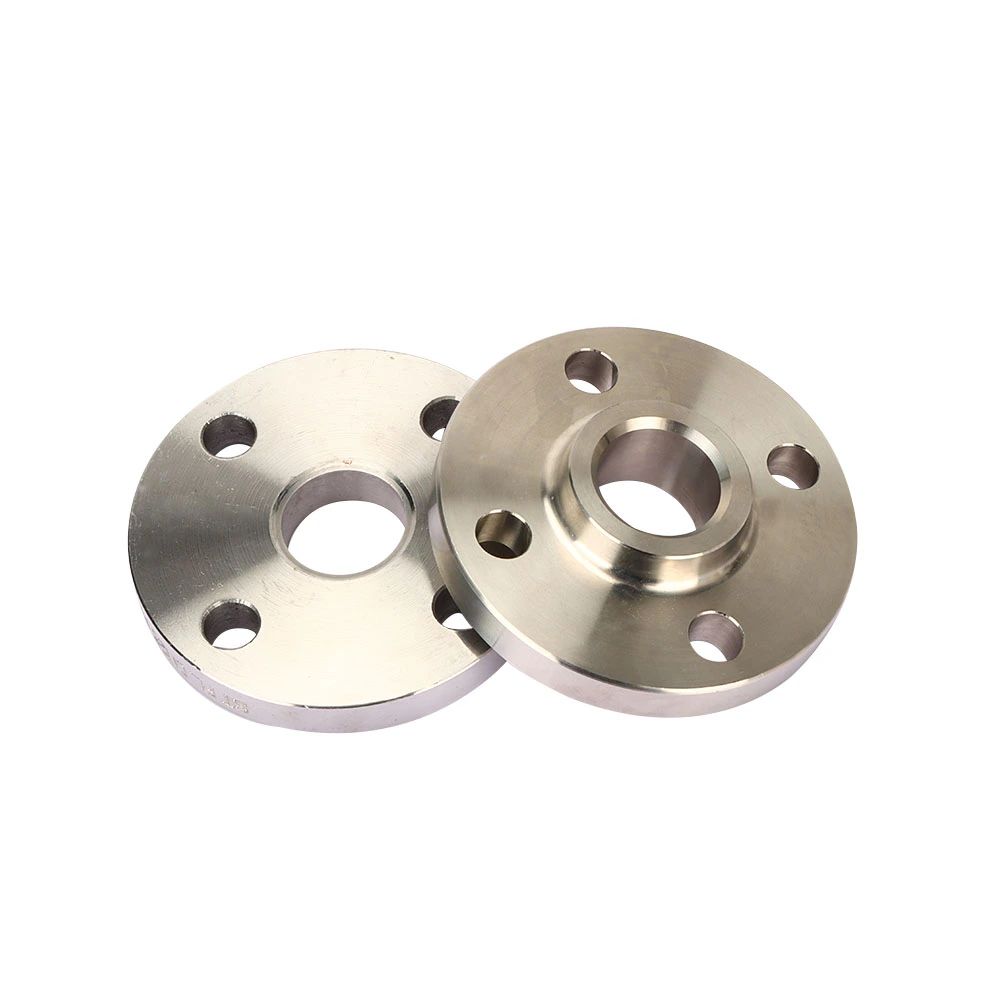

Establish whether the selected interface is threaded or welded. For a threaded requirement, provide the complete NPT designation, gender, engagement and inspection criteria. A welded requirement needs its actual flange subtype, end preparation and pipe-wall match. Gallery examples show open-centre and hubbed forms without certifying the supplied connection.

RF is the raised-face enquiry reference. Request measured face height and diameter, contact finish, thickness and gasket interface. Smooth does not define sealing-face roughness. Confirm outside diameter, bolt circle, hole count, hole diameter and compatible bolting against the mating joint.

F304 traceability and one governing pressure class

Obtain the exact selected material specification, grade and traceability. The A182 F304 stainless enquiry does not assign that grade to carbon steel alternatives or certify every stainless variant. Forged requires actual manufacturing records. The B16.5 references need the complete applicable specification edition and relevant conformity evidence.

Confirm the intended pressure class and its governing basis. The listed Class 125 and Low Pressure wording do not establish a fixed working pressure or justify substituting another class. Assess actual material, temperature, gasket, bolting and connected equipment together. Flexibility, corrosion and chemical-resistance requirements need component and exposure evidence.

Selected dimensions for the flange enquiry
