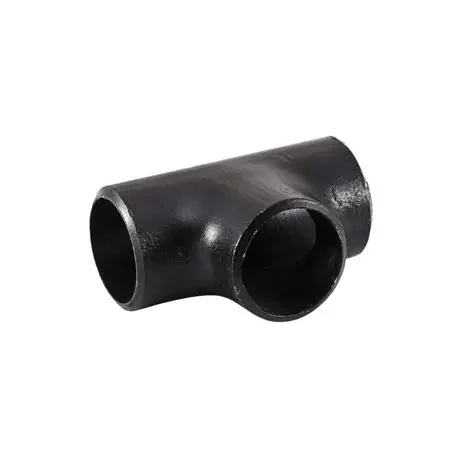

A234 WPB Carbon Steel Seamless Butt Weld Tee
Für industrielle Beschaffung
Eine klare RFQ vorbereiten
Mit den folgenden Angaben kann RELIA das Bauteil verstehen und den nächsten Schritt mit Ihnen besprechen.
- Zeichnung, Muster oder Referenznorm
- Werkstoffgüte und bevorzugtes Verfahren
- Abmessungen, Toleranzen und Oberfläche
- Anwendung, Zielmenge und Bestimmungsort
Fertigungszeit, Verpackung und Versandbedingungen werden nach Abstimmung von Spezifikationen und Handelskonditionen projektbezogen bestätigt.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
This A234 WPB carbon steel seamless butt-weld tee enquiry has inconsistent catalogue type information. The title names Tee and the inspected photos show three-opening branch forms, but both actual variants are labelled Reducer. Confirm the ordered product family before relying on the selection.
Reconcile the tee identity and three-end geometry
Ask for supplier confirmation and a drawing matching the selected item to the tee or reducer actually offered. Existing variant labels remain unchanged. The table’s Equal entry does not independently certify all run and branch diameters; define whether equal or reducing geometry is required.
Specify nominal run/branch sizes, outside diameters, bores, wall thickness, center-to-end dimensions and tolerances. Agree actual butt-weld preparation and mating pipe compatibility. The half-inch-to110-inch range is not an individual selection or proof that every run/branch combination is available.
Replace generic fields with accepted technical records
Length, height, mounting-hole diameter and thread fields state Customized Size. Obtain actual drawing dimensions; those labels do not establish a thread standard or hole feature. Clarify Hexagon against the component. No dimensional standard or numerical schedule is given, so agree the governing specification explicitly.
Request full material designation, WPB allocation, condition, traceability and certificates. Carbon Steel and a234wpb option labels need reconciliation to the selected grade record. Obtain manufacturing evidence for seamless and forged wording, and define inspection for the plain surface without assuming a coating.
Approve duty after the product is confirmed
High Pressure and Other class do not supply numerical operating limits. State medium, pressure, temperature, cycling, loads and compatibility. Obtain system acceptance after family/geometry confirmation. Agree joining, alignment, inspection, marking, material/process/dimensional records, individual availability and quotation scope.
Technische Angaben für jede Produktanfrage
Anforderung vor der endgültigen Produktbestätigung vorbereiten.
Die Produktseite ist der Ausgangspunkt. Zeichnungen, Muster, Schnittstellen, Werkstoffe, Mengen und Abnahme werden vor Lagerzuordnung oder Sonderfertigung geprüft.
Dieses Produkt im Projektkontext besprechen.
Teilen Sie Zeichnung, Muster, Referenz, Zielmenge und Anwendung mit. Offene Punkte können in der Prüfung bleiben.
