SCH160 Heavy-Wall Carbon Steel Tee for Gas Piping
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPaintingPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size

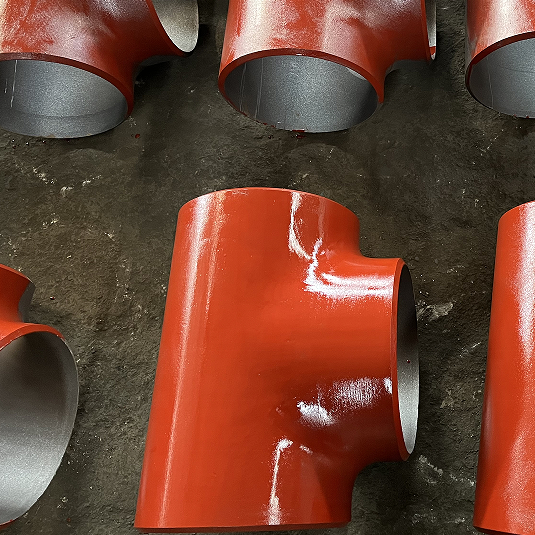

This SCH160 carbon steel tee listing includes extra-thick-wall, gas, construction and JIS references. The selectable type is labeled Reducer, while the title and image support tee forms. Confirm the actual ordered component, application and wall requirements before accepting a configuration for the intended high-pressure system.
Translate wall labels into actual dimensions
SCH160 and Extra Thick Wall do not provide one fixed thickness or guarantee an operating pressure. Specify the nominal sizes, dimensional specification and accepted wall values with tolerances. Define run and branch bores, diameters and center-to-end dimensions on the approved drawing, confirming Equal geometry and selected option mapping.
Clarify Welded Head wording against the actual connection and component construction. Request the welding end drawing and mating-pipe requirements rather than inventing a head design from an unclear title phrase. Hexagon, Customized Size and Metric entries do not supply measured values; agree explicit units and dimensional inspection criteria.
Identify JIS scope and actual supplied records
Specify the JIS number, edition and fitting or project coverage required for the installation. JIS wording alone is not a complete standard or evidence of conformity. Obtain supplied grade, condition, traceability and material inspection documentation; Carbon Steel and a234wpb options are not certificates for the order.
Request production evidence supporting Forged and the actual construction route. Define Painting treatment, covered surfaces, surface acceptance and inspection requirements. Red appearance cannot identify coating chemistry or protective performance. Agree preservation and handling records with the material, wall and end documentation needed for the selected component.
Clarify the gas system and numerical acceptance
State the actual gas or construction-system medium, composition, contaminants, pressure, temperature, cycles, transients and loads. Extreme High Pressure and the table labels do not quantify permitted conditions. Evaluate the confirmed material, wall and joints, then agree required leak acceptance, project inspections, documentation, marking, protection and delivery before approval.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
