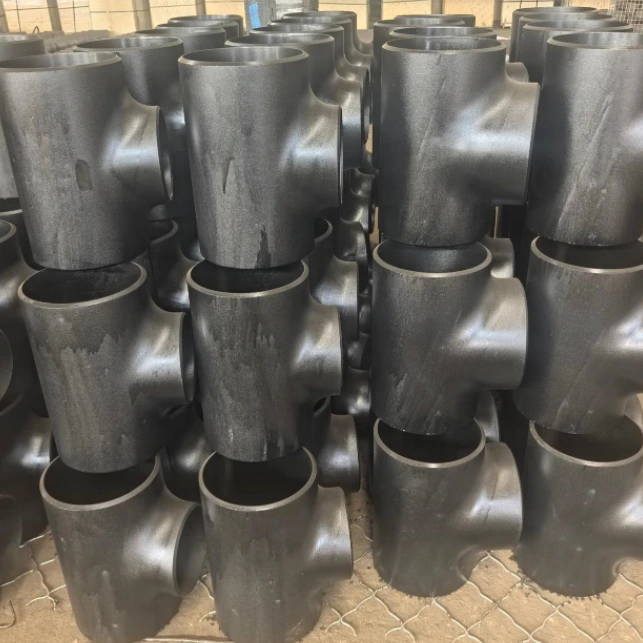

SCH20 ASME B16.9 Carbon Steel Welded Tee | Oil/Gas Enquiry
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
Specify the actual oil or gas duty for this SCH20 ASME B16.9 carbon steel welded tee enquiry. The title’s application context does not approve every fluid composition or installation. Provide the medium, numerical pressure, temperature, cycling, external loads and compatibility requirements for project acceptance.
Reconcile straight, reducing and equal geometry
The title mentions straight/reducing, the table says Equal, and both actual variants use Reducer. Confirm the delivered shape on a run/branch drawing before selecting pipework. Include both nominal sizes, bores, outside diameters, center-to-end lengths, orientation and tolerances; catalogue wording alone leaves geometry unresolved.
Agree the individual size pair and supply rather than assuming every size in the half-inch-to110-inch label is available. Allocate customized length/height values and clarify Hexagon. Generic mounting-hole and thread entries should apply only if the selected welding-connection drawing requires those features.
Allocate SCH20 and the material specification precisely
Identify the governing ASME B16.9 edition and applicable dimensional requirements. Confirm actual wall thickness and tolerance at each end behind SCH20, together with mating pipe dimensions. The title’s ASTM reference lacks a complete material designation; Carbon Steel and a234wpb options still need full grade, condition and traceable certificates.
Determine the actual body manufacturing route and obtain evidence for the table’s FORGED claim. Distinguish welding attachment from welded-body construction, and agree end preparation, alignment, welding and weld inspection. Define the Plain finish scope without assuming a verified protective coating.
Approve the fitting and completed oil/gas joint
High Pressure is qualitative, while Pipe Class and Application are Other. Obtain accepted numerical duty for the actual component and joint, with relevant installation/leak inspection criteria. Agree material/manufacturing/dimensional records, marking, confirmed size availability, quotation scope and warranty/OEM terms before ordering.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
