ASTM A234 WPB Low-Pressure Carbon Steel Reducer Enquiry

• warranty

  3 Years
  customized support

  OEM
• Technic

  Other
  Connectivity

  Other
• shape

  Other
  head code

  Other
• Overall Length

  1/2" x 1" - 20" x 24"
  Height

  1/2" x 1" - 20" x 24"
• Surface Treatment

  Other
  Pressure

  Low Pressure
• System of Measurement

  inch
  Mounting hole diameter

  1/2" x 1" - 20" x 24"
• Pipe Features

  No additional Features
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  Other

This pipe fitting enquiry presents ASTM A234 Wpb and low-pressure reducer wording. The sole actual variant uses Flange with Carbon Steel and one broad paired-size range. Confirm the actual supplied construction and its complete drawing before accepting a component for the requested reduction or mating arrangement.

Accept the component identity before choosing dimensions

Obtain selected-product identification and a construction drawing. For reducer supply, establish exact large and small ends, diameter basis, wall, overall length, transition profile, offset if any and tolerances. Flange supply requires its actual bore, outside diameter, thickness, facing, drilling and mating arrangement.

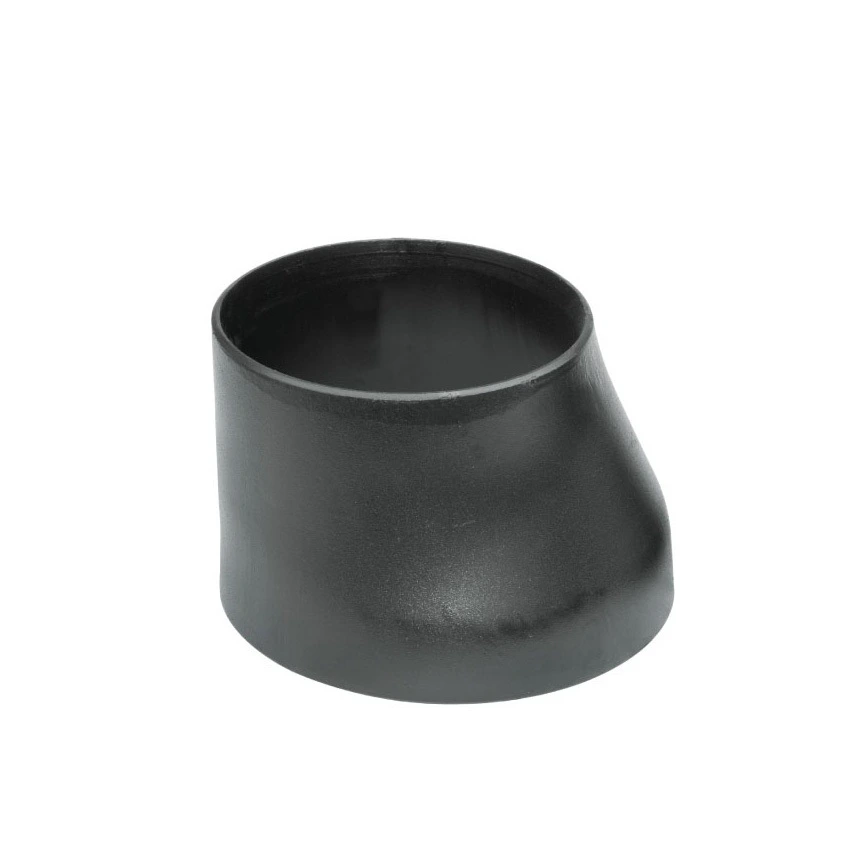

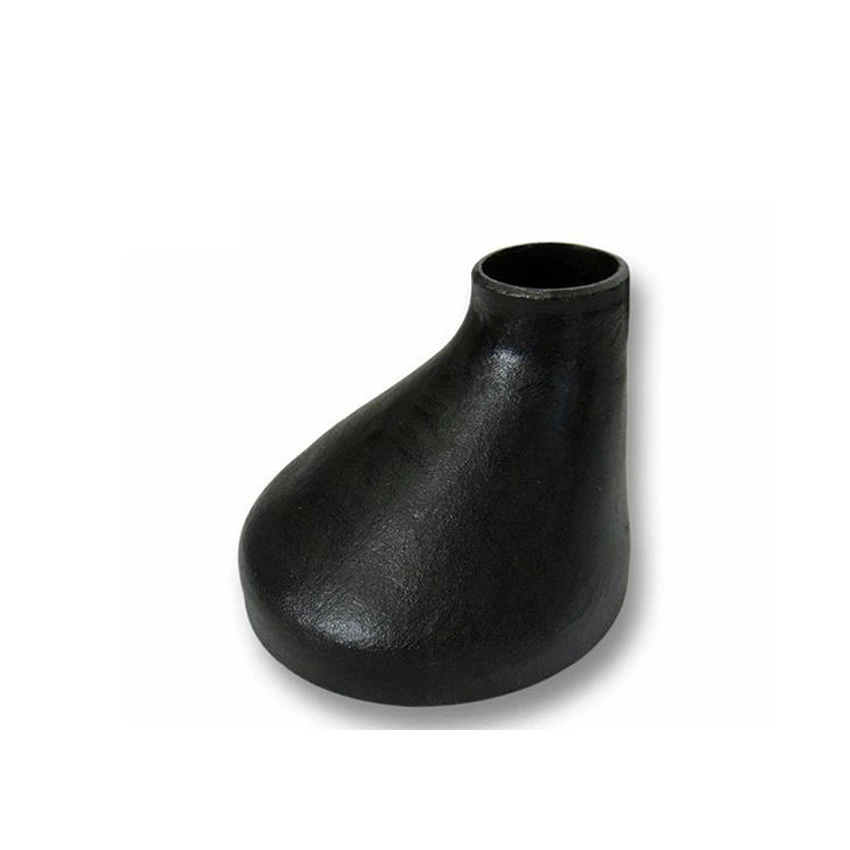

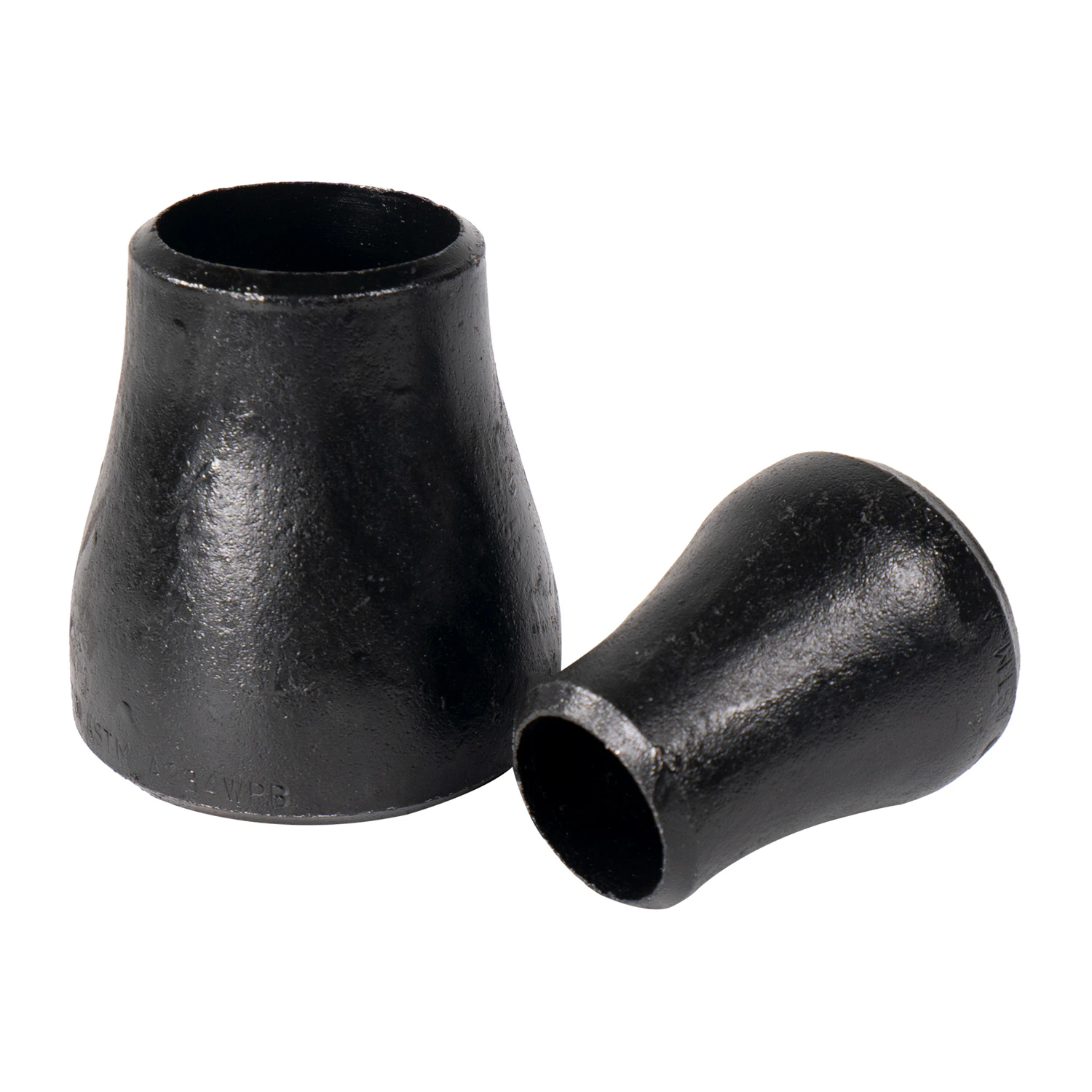

The paired inch range is one option rather than a selected reduction or proof of every intermediate combination. Its repetition in length, height and mounting-hole entries does not define either complete component. Dark reducing-body photographs cannot certify actual delivered subtype, exact dimensions, material or manufacturing route.

Specify the actual connection and selected material evidence

Other labels for connectivity, thread type, shape, manufacture and surface treatment leave those properties unconfirmed. Accept one end specification with actual mating dimensions and inspection. Welding, threading or bolted supply requires the selected preparation or interface rather than a connection inferred from an example shape.

Carbon Steel is the actual material option. Request the exact product material specification, selected grade, heat-traceable certificate and governing edition supporting any ASTM A234 Wpb requirement. Do not infer a stainless alloy, equivalent grade or another numbered fitting standard. Obtain actual manufacturing, surface and inspection records with matching identification.

Document full duty for the accepted fitting

Low Pressure and Not Rated supply no certified pressure-temperature envelope. Construction Engineering is a broad application context without approval for a particular fluid. Assess actual medium composition, temperature, pressure cycles and the complete supplied joint under a documented governing basis. Enquire with confirmed construction, exact dimensions and ends, material evidence, route and finish requirements, operating duty and inspection acceptance.
