Name: ASME B16.9 WPB Reducing Tee | Carbon Steel Enquiry
SKU: 191284229208836247191284014
Price: 5.00 USD
Availability: InStock

warranty

1 year

customized support

OEM
model number

Tee 1/2"--24"

Technic

Forged Casting
Connectivity

Welding

shape

Equal
head code

Round

Overall Length

4 in
Height

4

Surface Treatment

Painting
Pressure

Low Pressure

System of Measurement

inch
Mounting hole diameter

0.25 in

Pipe Features

Flexible
Pipe Class

125

Application

Agricultural Irrigation, Automotive Repair, Heating Systems
Thread Types

NPT

Name

Pipe Fitting Equal Tee
Material

Carbon Steel Stainless Steel Alloy Steel

Standard

ANSI JIS DIN ASME
Size

1/2' ~ 48'

Color

Customized Color
Packing

Wooden Case

Payment

TT LC
Thickness

STD XS SCH40 SCH80

Brand

SHENGTIAN
Delivery Time

7--20 days

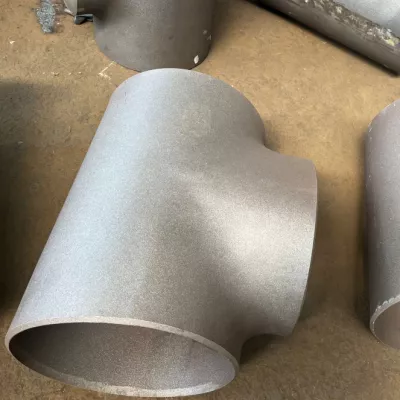

This ASME B16.9 WPB carbon steel reducing-tee enquiry includes seamless, forged and butt-welding requirements. Confirm the actual component before applying those requirements: available variants also include elbows, caps, couplings, crosses, flanges and nipples alongside tees.

Establish the tee branch arrangement first

Obtain a selected three-port drawing identifying equal or reducing construction. For reduction, specify run-by-run-by-branch nominal designations, outside diameters and wall transitions. For an equal tee, verify matching nominal ends. Gallery examples can guide the enquiry but cannot qualify supplied branch dimensions or wall thickness.

The model range, separate apostrophe-based size notation and five millimetre labels need unit-confirmed mapping. Do not treat them as interchangeable dimensions. Overall Length 4 in, a unitless height and the mounting-hole entry cannot define all seven fitting types.

WPB specification, actual ends and production route

Choose the exact material specification and grade with traceable certification. WPB is an enquiry reference; no numbered material document is supplied here. Stainless steel, alloy and carbon steel are separate actual alternatives. Black appearance does not establish alloy, coating system or corrosion performance.

Confirm whether actual ends are welded or threaded. Butt-welding supply needs bevel, preparation and wall matching, while NPT supply needs the full designation, gender and engagement requirements. Obtain manufacturing records before accepting seamless, forged or cast production. Select STD, XS, SCH40 or SCH80 only with the chosen nominal size and measured wall.

B16.9 dimensions and Class 125 duty

Verify the selected B16.9 edition and dimensional acceptance; unnumbered ANSI, JIS, DIN and ASME references do not add equivalence. Class 125 and Low Pressure provide no fixed working limit. Assess actual material, wall, temperature, medium and design requirements. Painting needs coating details and Flexible does not qualify movement capacity. Send selected type, grade, port/end drawing, actual route and operating duty with the material and dimensional inspection requirements.
