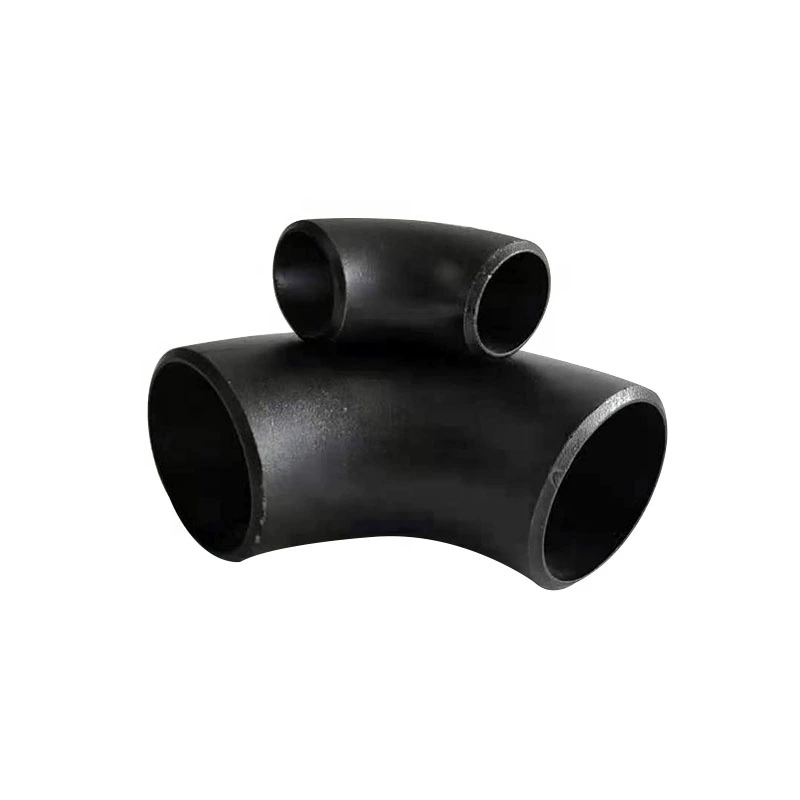

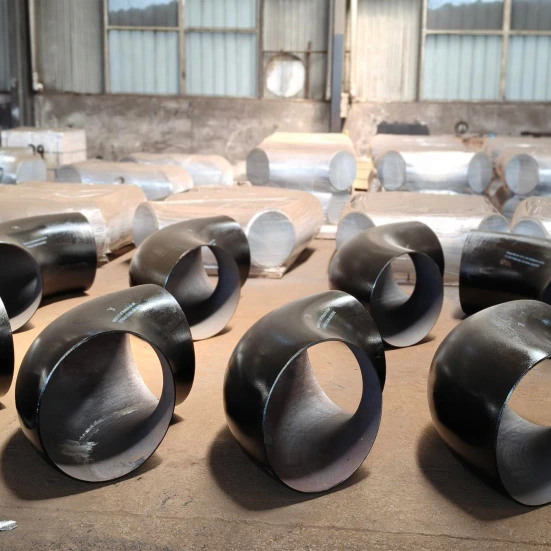

Carbon Steel SCH40 90-Degree Long-Radius Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This carbon steel SCH40 90-degree long-radius elbow is listed with seamless, forged and welding-connection wording. The title references B16.9, while the only size option is a half-inch to 12-inch range. Select the individual size and verify its full dimensional and connection package.

Approve actual SCH40 wall and long-radius dimensions

State the nominal sizing convention, actual bend radius, wall thickness and tolerances for the required 90-degree elbow. Confirm matching pipe dimensions and the applicable dimensional basis for SCH40. A schedule label does not establish numerical pressure acceptance or completed inspection of the chosen size.

Obtain finished length, height and hole measurements because those table entries repeat the range. Clarify the Hexagon head code on the drawing and its role in the supplied component. The title does not select a complete material grade or explicitly name a butt-weld preparation.

Verify seamless forged supply and end-specific requirements

Request the full carbon steel designation and condition, governing material document and edition, certificates and traceability. Define the B16.9 document and actual component conformity scope. Obtain manufacturing evidence for both forged and seamless wording rather than treating the title as a completed supply record.

Resolve Welding and NPT through an end schedule covering preparation, any applicable full thread designation, mating parts, sealing and examination. Specify the actual joint arrangement and measurable smooth-surface acceptance. Include handling and protection through delivery in the inspection requirements.

Confirm construction operating and corrosion evidence

Identify the medium composition, pressure and temperature envelope, cyclic duty, external exposure and mechanical loads. Low Pressure and Not Rated leave numerical suitability open for this selected material and wall. Evaluate corrosion resistance against the intended environment and obtain the relevant material, joint and rating basis. Agree dimensional verification and testing before accepting the supply package.
