ASME B16.9 Carbon Steel SCH40 Equal Tee Enquiry
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
warranty1 yearcustomized supportOEM, ODM
-
model numbertee 5103TechnicCasting
-
ConnectivityMale/FemaleshapeEqual/Reducing
-
head codeHexagon/RoundSurface TreatmentPainting
-
Mounting hole diameter0.17 inPipe Class125

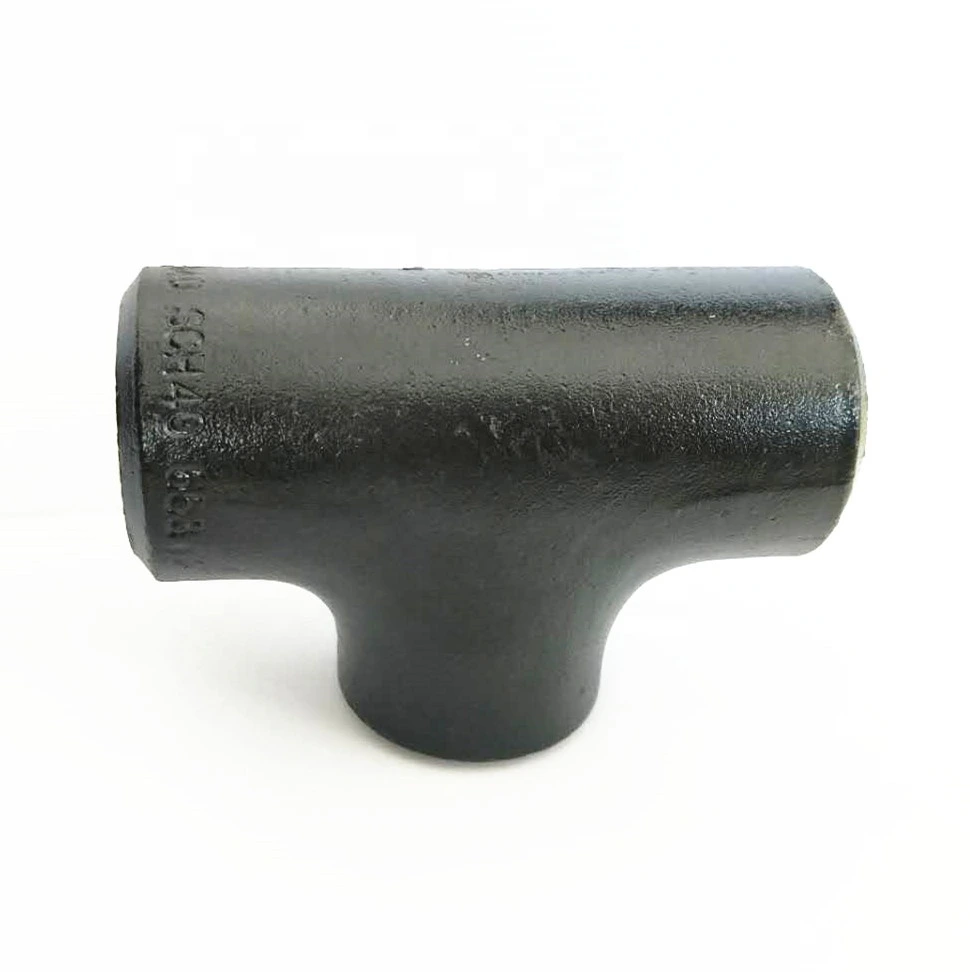

This pipe tee enquiry focuses on an equal carbon-steel branch connection with ASME B16.9 and SCH40 requirements. Identify the selected run and branch geometry before comparing size and material options. The model needs a three-end drawing and supporting records, since general tee labels do not establish equal dimensions, wall thickness or manufacturing route for every configuration.
Map the run and branch dimensions
Give the run size and branch size separately, even when an equal arrangement is required. Confirm whether the item offered has equal or reducing geometry and explain what the millimetre option measures. Request nominal sizes, outside diameters, wall thickness or schedule and end preparation on the same drawing. Check the required SCH40 wall against the selected nominal size and applicable dimensions rather than treating schedule as a pressure rating.
Confirm grade and the seamless requirement
Choose the carbon-steel variant and specify its exact material grade and governing specification. Stainless-steel alternatives require a separate designation and records. If seamless construction is required, request traceable production and inspection evidence for that item, because the source process labels do not establish a consistent manufacturing route. Product appearance cannot resolve that question or demonstrate the supplied material grade.
Define branch-joint acceptance
State the B16.9 edition and dimensional acceptance requirements and define the actual pipe connection. A Male/Female label alone does not establish thread or weld geometry. Provide the fluid, operating pressure and temperature, branch layout and joining and inspection requirements so the selected material, wall and complete joint can be assessed together. Generic head-code, mounting-hole and Pipe Class fields do not qualify duty. A complete enquiry links one run-and-branch drawing to the exact grade, accepted manufacturing records and documented operating conditions.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
