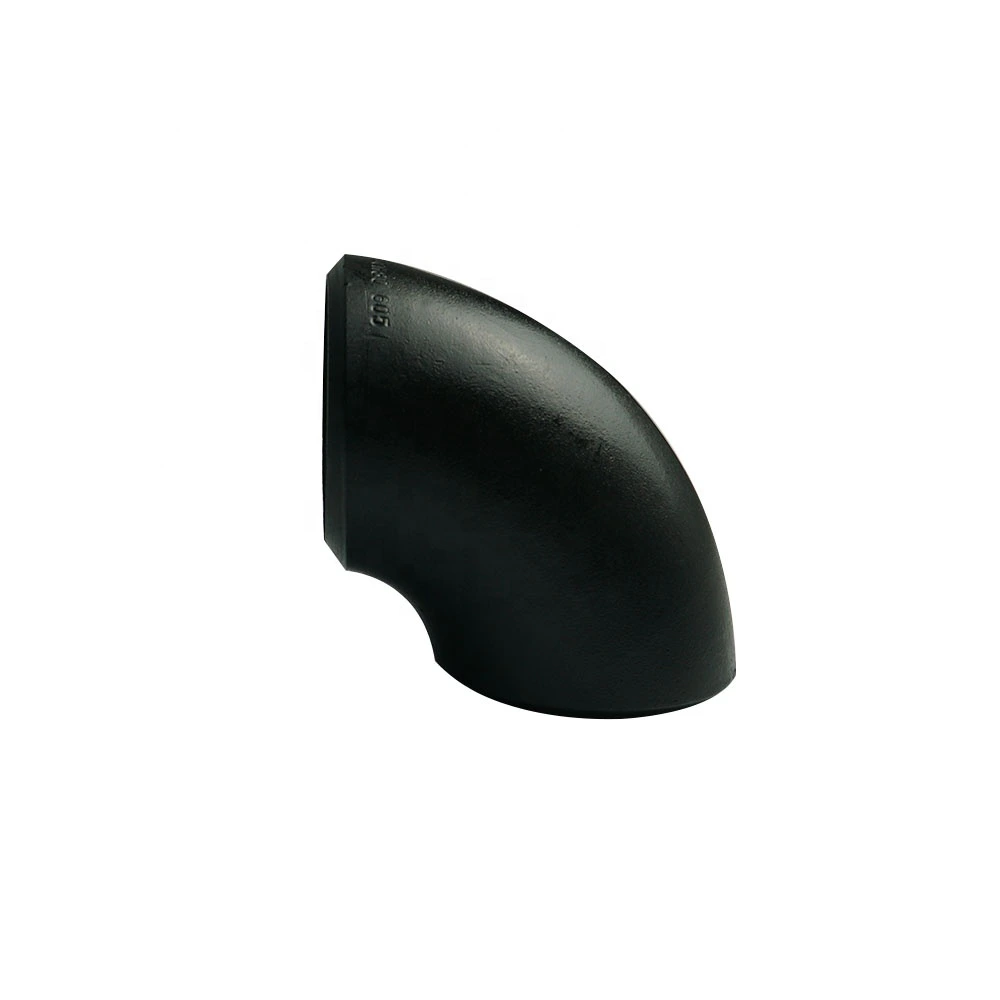

B16.9 Carbon Steel 90 Degree Butt Weld Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This B16.9 carbon steel 90-degree butt-weld elbow enquiry includes forged and seamless title references for construction. The actual option identifies a carbon steel elbow in a half-inch-to-12-inch range. Confirm the selected geometry, material and end details before treating the catalogue wording as certified supply.

Complete the 90-degree B16.9 elbow specification

Request nominal size, outside diameter, bore, actual wall, bend angle, radius and center-to-end dimensions through an accepted drawing. Neither long/short radius nor a wall schedule is recorded. The title word Low does not define radius; the table separately describes Low Pressure.

Agree the governing B16.9 edition and its applicability to the selected configuration. ASTM appears without a material document number or full grade, so request the complete designation, condition, traceability and certificates. Do not add an unrecorded grade or substitute a generic carbon steel label for those documents.

Reconcile butt-weld and NPT connection records

The title identifies butt welding, while the table includes Welding and NPT. Obtain the supplier end-detail confirmation, matching pipe and joining requirements. Length, height and mounting-hole fields repeat the size range; request individual measurements and clarify whether a hole feature exists. Resolve Hexagon against the drawing.

Ask for manufacturing records supporting forged and seamless wording. Black and smooth descriptions do not establish a coating chemistry or corrosion performance. Define the actual surface treatment and inspection requirements without using appearance as evidence of material identity or certified manufacture.

Approve the stated construction service conditions

Low Pressure and Not Rated leave numerical operating limits unconfirmed. Provide medium, pressure, temperature, exposure, cycling and loads, then obtain compatibility acceptance. Agree joining, alignment, support, inspection, marking, material/process/dimensional records, warranty terms and quotation scope for the actual elbow.
