Pre-Insulated Pipe for District Heating Projects
For district-heating pipe, define the carrier pipe, insulation, casing and joint arrangement as one coordinated purchase. RELIA manufactures industrial steel pipe; the insulation and casing work for the selected system should be identified in the supply scope. This guide explains the layer interfaces, pipe-end allowance and inspection information that help the sections fit together on site. Thermal performance and service-life claims need the actual system definition and evidence rather than a generic three-layer illustration.
Discuss this purchase with RELIA
RELIA Pipe Manufacturing and System-Scope Review
RELIA manufactures industrial steel pipe and reviews pre-insulated pipe as a coordinated supply. Our catalogue includes a district-heating pipe enquiry and a carbon-steel carrier with polyurethane foam and HDPE outer protection. The selected order needs a clear division of responsibility for the carrier, insulation, casing and field-joint materials. We connect those layers with a drawing and inspection plan rather than describe a general pipe label as proof of complete system performance.
- RELIA in ChinaIndustrial pipe manufacturing
- Selected routeConfirmed for the product and order
- Initial checksDimensions, material documents and pre-shipment condition
Carrier insulation casing and joints form one system

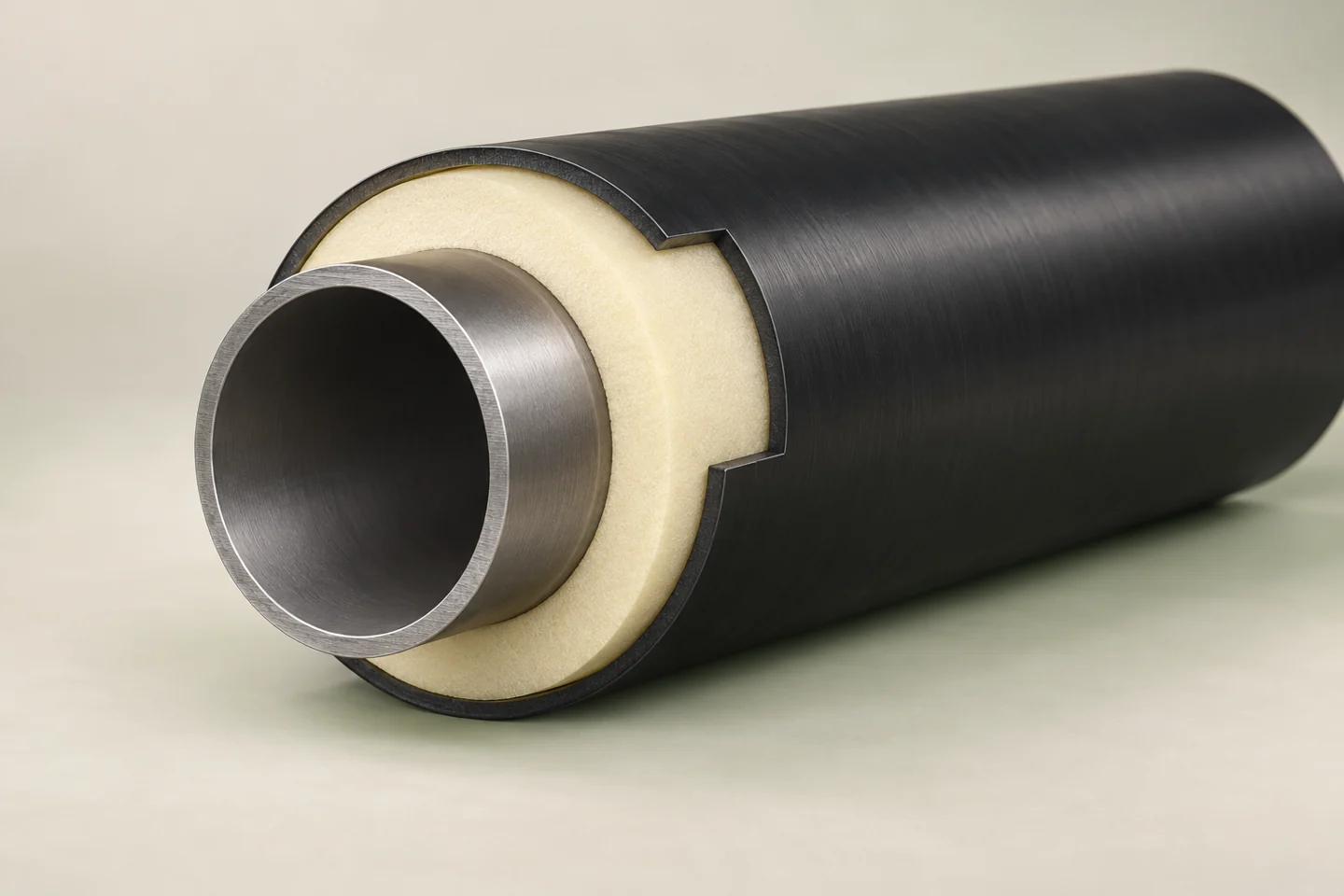

A pre-insulated pipe has a steel carrier for the fluid, insulation around the carrier and an outer protective casing. The field-joint arrangement continues those functions between pipe sections. Select the complete system from the heating-network design, including operating conditions and installation environment.
The polyurethane/HDPE catalogue reference provides a relevant layer combination. Define each layer’s actual material and dimensions separately; a single outside-diameter or thickness range cannot identify the whole assembly.
Catalogue references support the enquiry. The accepted drawing, material definition and quotation identify the supplied configuration.
The supply scope identifies each layer
Allocate every dimension to a named layer. Record carrier OD and wall, insulation thickness, casing OD and wall, overall length and carrier end projection on the selected assembly drawing.
The catalogue records 6 m and 12 m length options in this product family. The quotation should confirm the selected assembly length and the separate pipe-end allowances needed for site joining.
| Parameter | Purchase meaning |
|---|---|
| Carrier section | OD and wall with units |
| Insulation section | Thickness and centring requirement |
| Outer section | Casing OD and wall |
| Length definition | Overall length and exposed carrier at each end |
A defined sequence for pipe insulation and casing
A typical assembly route prepares the carrier surface, positions the carrier and casing, establishes the selected insulation layer and completes the ends. The insulation process needs its own material and quality controls; the casing must provide the specified protective boundary. The actual sequence depends on the chosen system.
RELIA’s confirmed scope includes pipe manufacture. Insulation, casing and joint-work responsibility are identified for the selected order, so the buyer knows which operations and records belong to the offered assembly.
- PrepareCarrier identity, surface and ends
- PositionCarrier and casing alignment
- InsulateSelected material and controlled layer formation
- CompleteEnd allowances, protection and system checks
End allowances support the site joint
The exposed carrier length allows site access to the pipe joint, while the field-joint kit restores the specified insulation and outer protection afterward. Define compatible end dimensions and an installation detail for both operations.
Review nearby fittings, branches and supports with the network layout. The selected system definition and relevant evidence establish the thermal, mechanical and protective requirements.
System and dimensional checks before dispatch
Inspect the carrier dimensions and material documents, then review assembly dimensions and the layer-specific checks required by the system. Name the casing condition, insulation verification and end features that form the acceptance basis.
RELIA can coordinate the initial dimensional, document and pre-shipment review with the agreed supply scope. Thermal or mechanical performance claims require the actual system definition and applicable evidence, including the test or calculation conditions.
| Parameter | Purchase meaning |
|---|---|
| Carrier | Material, dimensions and prepared ends |
| Assembly | Layer dimensions, alignment and end projections |
| System evidence | Specified insulation and casing verification |
| Dispatch | Protection and completeness of joint-related items |
Thermal claims need system-specific evidence
A credible thermal statement names the material system, geometry and conditions behind the result. Do not use another manufacturer’s conductivity, lifetime or quality certificate as evidence for the selected RELIA offer. Real assembly photographs and item-linked records can support the actual scope.
The line-pipe guide covers the bare pipe purchase, while the water-joint guide addresses a different interface. This page adds the layer and field-joint decisions specific to pre-insulated heating networks.
- DefinitionCarrier, insulation, casing and joints
- ResponsibilityActual manufacturing and assembly scope
- EvidenceLayer-specific measurements and agreed records
- PerformanceSystem-specific basis and stated conditions
Pipe sections and joint items travel together
Pack the pipe sections with the relevant joint and accessory references, preserving the casing and exposed ends. The receiving team should be able to associate each assembly with its field-joint requirement before installation begins. Storage and lifting arrangements need to suit the selected outer casing.
For phased work, RELIA can review the same accepted layer definition and end allowance. Changes to the carrier size or insulation thickness require a coordinated casing-and-joint review rather than an isolated pipe substitution.
Contact RELIA for Your Purchase Specification
Send the network specification, carrier grade and dimensions, insulation requirement, casing material and dimensions, section length, end projections, joint details and inspection scope. RELIA can identify the actual manufacturing and assembly responsibilities for the offered system.
- DefineDrawing, configuration and quantities
- ReviewManufacturing scope and inspection requirements
- QuoteA clear technical and commercial basis
