Branch Outlet Fittings for Piping Fabricators
Buy a branch outlet against both the run pipe and the branch connection. A familiar branch size alone does not define the saddle fit, end style or approved reinforcement arrangement. This guide explains the geometry and machining information to send RELIA, the relevant catalogue candidate and the records needed before order release. The actual branch-outlet manufacturing route remains a product-specific confirmation, while the piping design establishes whether this outlet is suitable for the proposed branch.
Discuss this purchase with RELIA
RELIA Product Review for Branch Outlet Enquiries
RELIA reviews branch outlets against the selected run pipe and branch connection. Our catalogue includes an A105 carbon-steel butt-weld outlet enquiry and a threaded carbon-steel outlet. Their connection forms need separate purchase definitions. We can connect the saddle, bore and branch-end requirements with a dimensional and material-document review. The actual blank-making and machining division for the selected outlet is confirmed with the quotation.
- Product definitionConnection type and material
- Manufacturing reviewSelected component and actual supply scope
- Acceptance basisDrawing, dimensions and relevant documents
The run pipe and branch define the outlet
Specify the run outside diameter and wall together with the branch size and end form. A butt-weld outlet and a threaded outlet can serve the same nominal branch size while requiring different branch-pipe preparation. The A105 enquiry is a material candidate for the butt-weld form; it does not identify the thread system of another item.

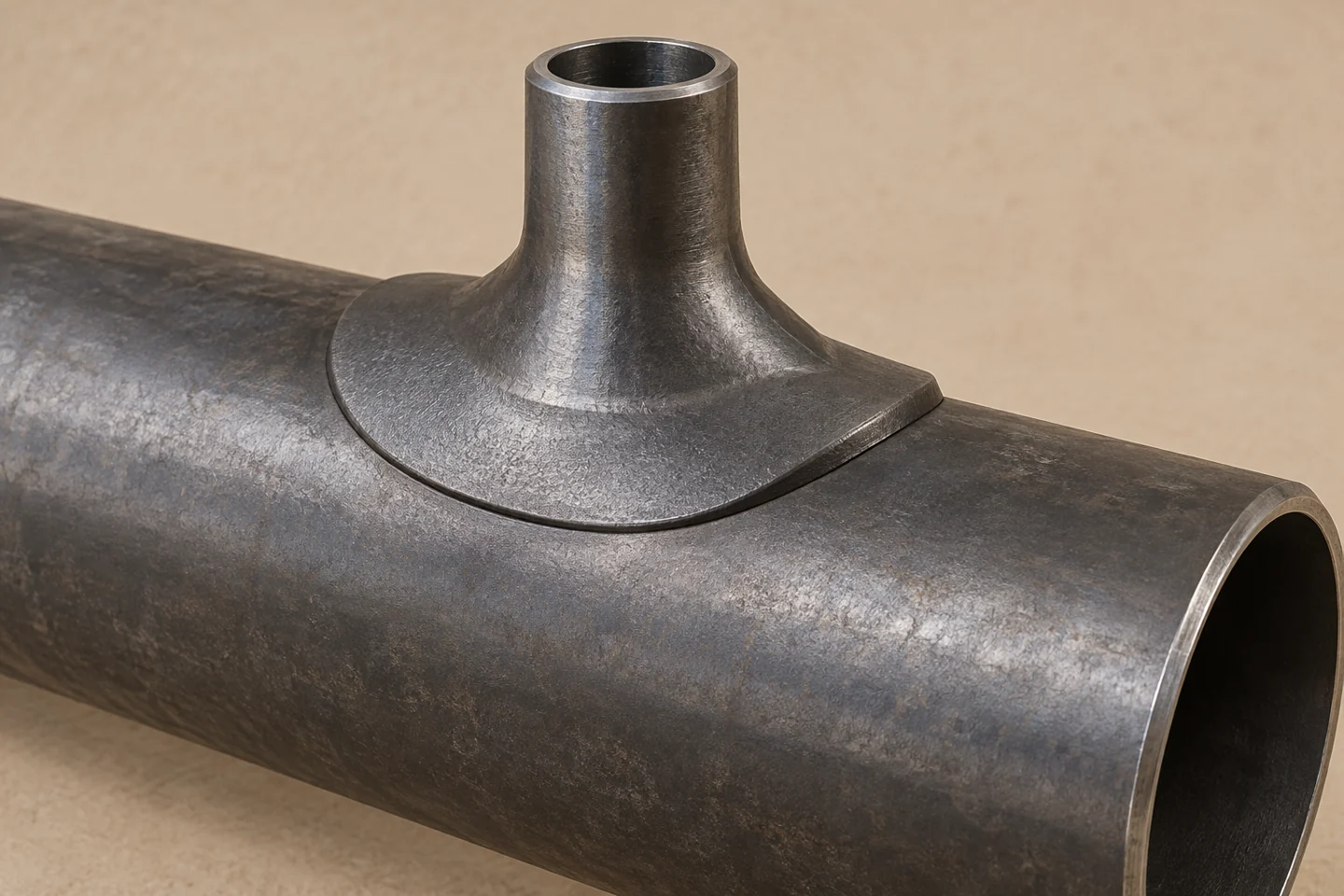

An outlet is a saddle-mounted component on a run pipe. It is not a three-ended tee body. The branch detail in the piping design should identify the selected construction before purchasing compares prices.
Catalogue references support the enquiry. The accepted drawing, material definition and quotation identify the supplied configuration.
The approved branch design sets the boundary

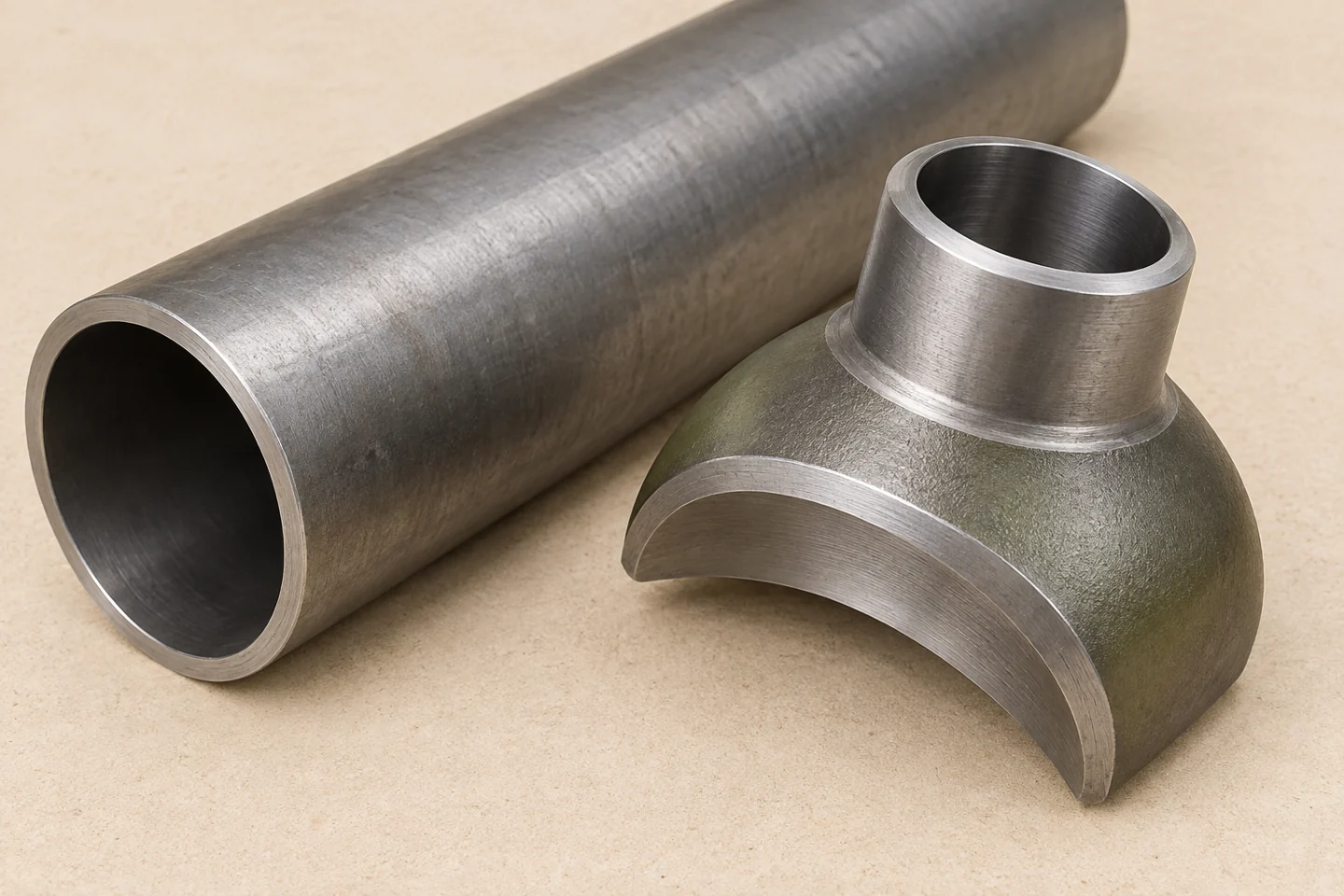

The outlet saddle must suit the specified run curvature and the branch orientation. Include the branch angle, position, permitted run/branch combination and installation detail. A branch diameter alone cannot define that fit or establish reinforcement adequacy.
Where MSS SP-97 is specified, use the selected outlet type and applicable requirements with the piping design. A class attached to one end form should not be transferred to another configuration, and a class designation is not a universal working pressure.
| Parameter | Purchase meaning |
|---|---|
| Design basis | Approved branch construction and orientation |
| Saddle | Run curvature and contact geometry |
| Connection | Selected end form and dimensions |
| Acceptance | Applicable standard and approved detail |
Machining the saddle and branch interface
A branch-outlet manufacturing route establishes the reinforced blank, machines the through bore and finishes the branch connection and saddle. A butt-weld end needs the specified wall and bevel; a threaded end needs the defined thread profile and gauging basis. These are different finishing operations.
RELIA’s order review identifies the actual manufacturing scope for the selected component. The process should connect each machined feature to its function rather than treat a generic forged label as a complete route description.
- BlankMaterial and reinforcement form
- BoreContinuous branch passage
- SaddleFit to the selected run curvature
- Branch endSpecified bevel, socket or thread
Saddle fit and transition geometry work together
The thick transition between saddle and branch neck is part of the outlet geometry. Machining must retain the selected profile while establishing the bore and connection. The run-pipe opening and installation weld belong to the approved branch detail, not to a guessed opening based on the exterior neck.

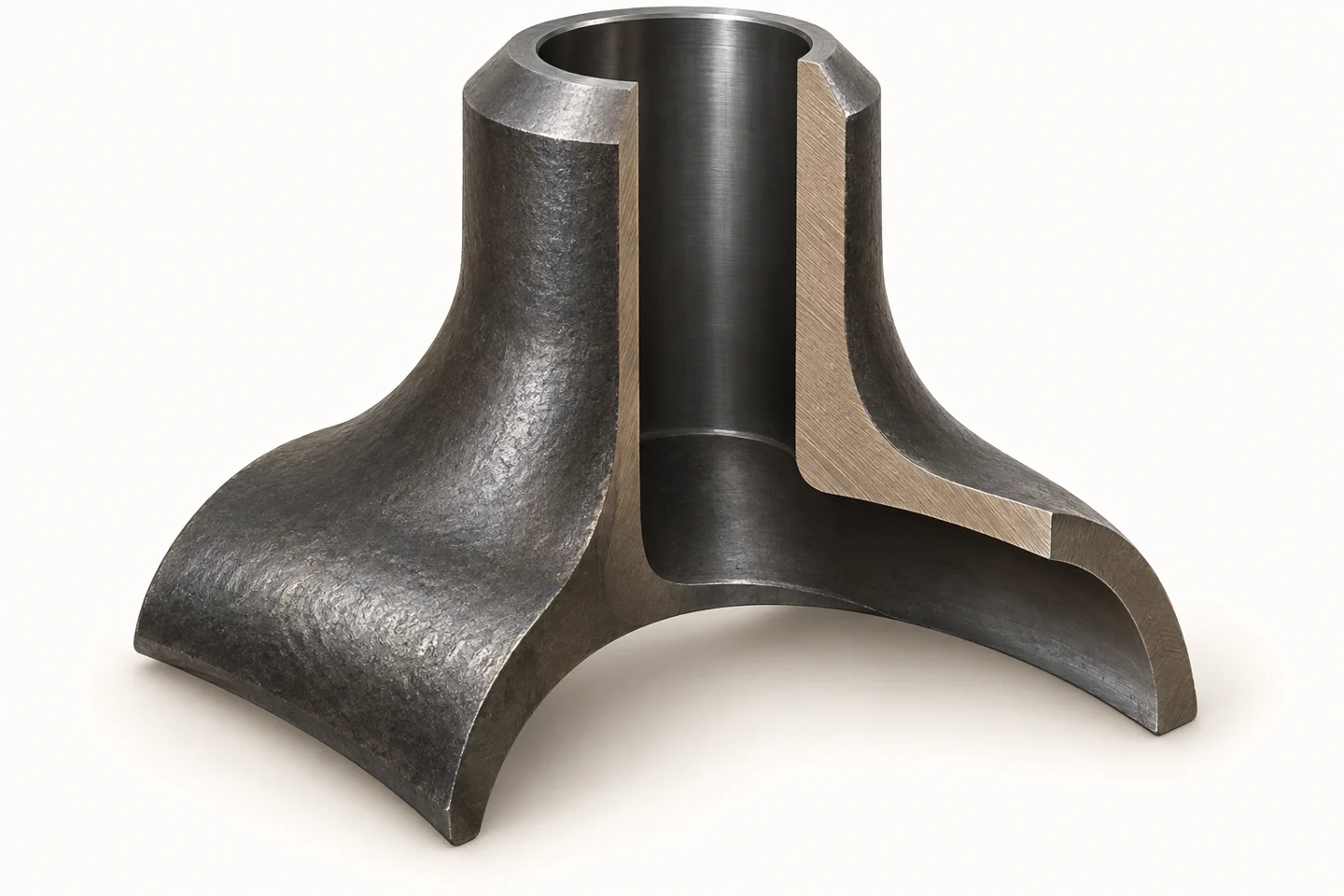

The section illustration shows one continuous outlet wall and a curved saddle base. It explains those features without presenting a complete piping stress calculation or an installation welding procedure.
Checks against the selected branch drawing
Inspect the outlet against the selected drawing, including branch-end dimensions, bore, height, saddle-related features and the specified material documents. For a threaded type, identify the thread system and agreed gauging method. For a butt-weld type, keep the end wall and preparation visible in the record.
RELIA’s initial scope includes dimensions, material-document review and pre-shipment condition. Additional examinations, weld qualifications or project witness points are established separately for the selected supply scope.
| Parameter | Purchase meaning |
|---|---|
| Identity | Material and selected outlet type |
| Geometry | Bore, height and saddle-related features |
| End checks | Thread gauging or weld-end dimensions |
| Additional scope | Project-specific examination and witness needs |
A branch-outlet record distinct from a tee
A useful evidence set joins the branch detail, the outlet configuration and the actual inspected features. Production photographs can show saddle or end machining; dimensional results provide the corresponding measurements. Neither a tee photograph nor a generic round washer explains this component.
Use the tee guide when the design selects a complete three-ended fitting. Use the coupling guide when the procurement question is a straight connection. Keeping these alternatives distinct helps the fabricator retain the intended branch construction.
- InputRun, branch and approved detail
- ManufactureActual outlet route and finished features
- EvidenceMaterial and dimensional references
- Installation boundaryApproved opening and weld detail
Run and branch references remain visible

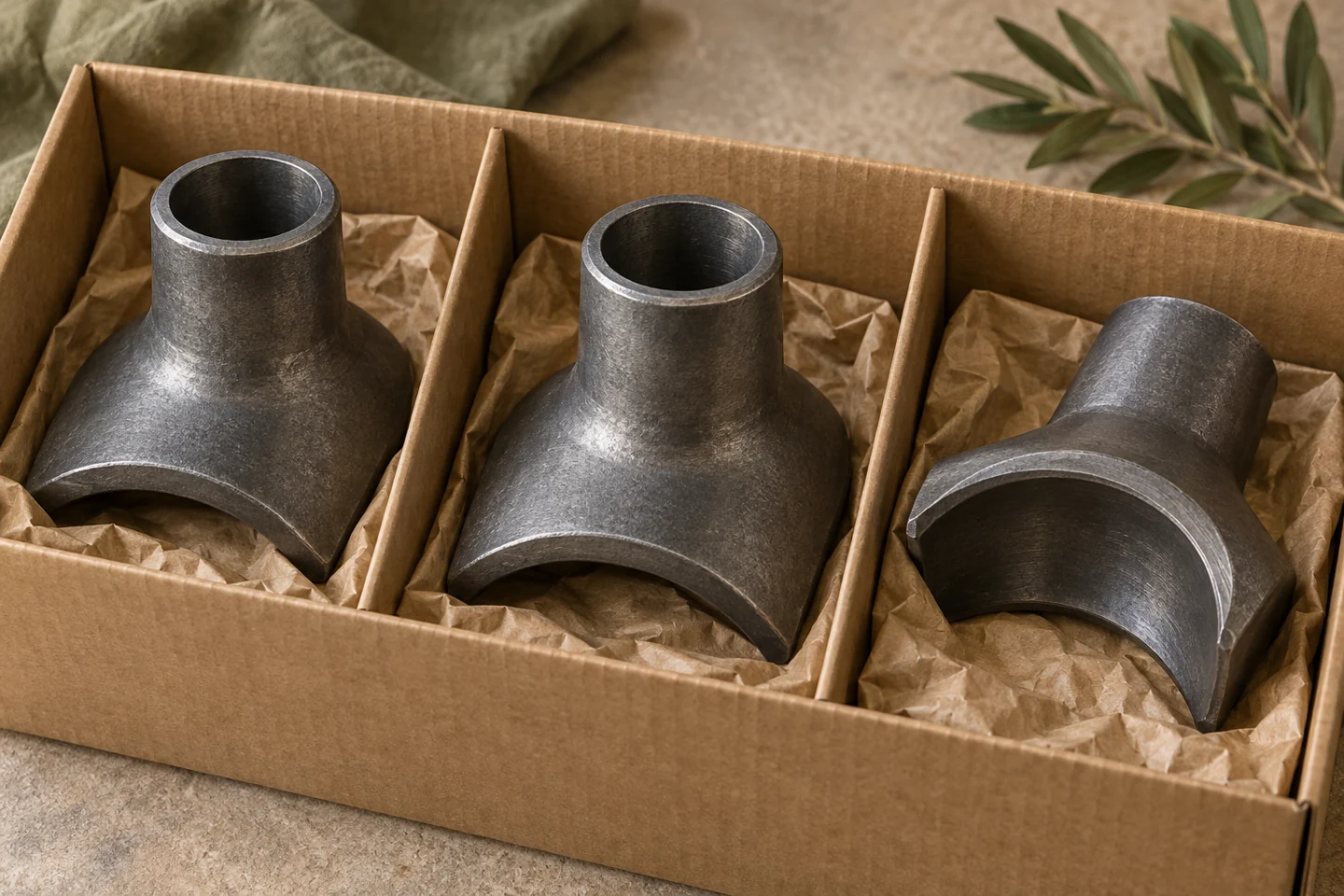

Identify run/branch combinations and outlet end forms separately in packing. Two outlets with similar branch necks can have different saddle curvature or threads. Protect the machined saddle and prepared connection, and keep the item reference tied to the fabrication list.
For repeat work, RELIA can review the accepted outlet definition rather than substitute a similar-looking branch item. Any change in run size, branch end or material needs an explicit line-item review.
Contact RELIA for Your Purchase Specification
Send the run outside diameter and wall, branch size and angle, selected end connection, exact material, approved branch detail, quantity and inspection requirements. RELIA can review the outlet geometry and actual manufacturing scope before quotation.
- DefineDrawing, configuration and quantities
- ReviewManufacturing scope and inspection requirements
- QuoteA clear technical and commercial basis
