ANSI B16.9 4-Inch Stainless Steel 45-Degree Elbow, Seamless Enquiry

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This ANSI B16.9 4-inch 45-degree elbow enquiry is presented with stainless steel and seamless wording. Establish the actual delivered material before selecting a grade, manufacturing requirement or service basis.

Accept material identification before specifying service

The sole actual selection is Elbow / 1/2-inch to 12-inch / Carbon Steel. Obtain accepted material identification and a heat-traceable certificate rather than deciding chemistry from dark photographs or creating a stainless variant. Specify the selected product standard, exact grade and inspection evidence.

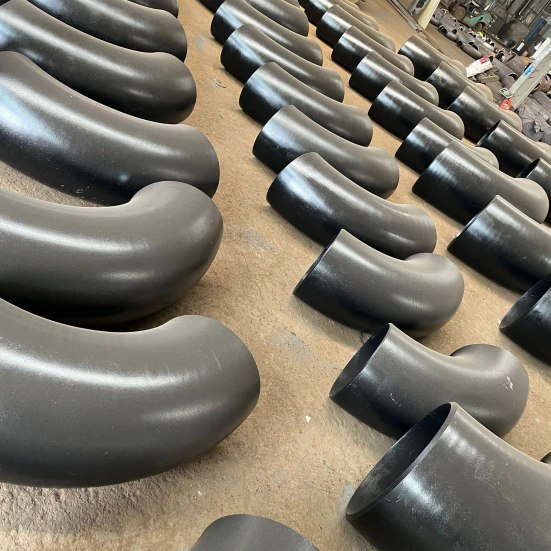

A seamless requirement and forged wording need production records for the ordered body. Reference elbow photographs cannot certify grade or manufacturing route. Agree the required ANSI B16.9 document designation, edition, applicable scope and compliance evidence without assuming standard equivalence.

Define the exact-size 45-degree bend and actual ends

The 4-inch wording identifies an enquiry size within the existing range, not a separate selectable variant or proof of inventory. Confirm nominal or outside-diameter basis, measured angle, radius, center-to-end dimensions, end diameters, bores, wall thickness and tolerances. Repeated ranges under length, height and mounting-hole diameter do not provide those measurements.

Accept the actual end arrangement on the drawing. A welded connection needs selected preparation, compatible pipe walls, procedure and inspection. Any threaded request needs its own size, form, engagement and mating acceptance. Bend and Hexagon labels do not complete geometry or certify a combined connection.

Qualify finish and duty for the accepted material

Smooth and corrosion-resistant wording does not identify coating chemistry or establish resistance to the selected fluid. Agree finish/coating and exposure requirements after material selection. Surface appearance supplies no service qualification.

Low Pressure and Not Rated define no numerical operating envelope. Provide actual medium composition, temperature, pressure and cycling with accepted material and ends, complete exact-size drawing, standard and production evidence and finish criteria. Construction naming alone does not approve duty; the assessment must cover the elbow, mating pipe and complete installed joint.
