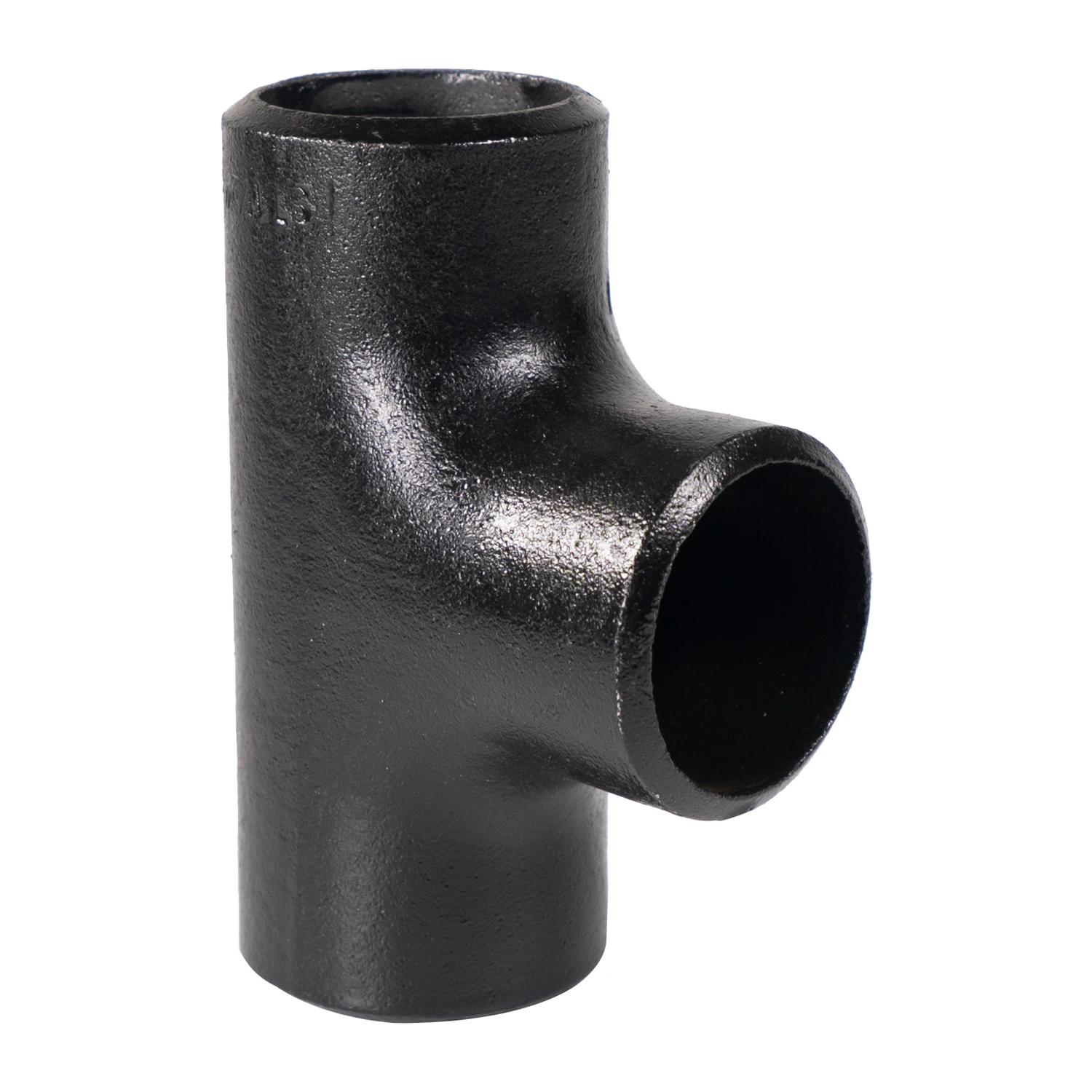

Carbon Steel Weld Connection Tee | Class 3000 Enquiry
Para compras industriales
Prepare una RFQ más clara
Incluya estos datos para que RELIA comprenda la pieza y pueda acordar el siguiente paso.
- Plano, muestra o norma de referencia
- Calidad del material y proceso preferido
- Dimensiones, tolerancias y acabado superficial
- Aplicación, cantidad objetivo y destino
Los plazos de producción, el embalaje y el envío se confirman para cada proyecto tras acordar especificaciones y condiciones comerciales.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.25 in
-
Pipe Class3000SizeCustomized Size
-
Product nameElbow
A welded tee enquiry should define the branch arrangement and identify the selected fitting before comparing class or wall references. For a project requiring Class 3000, state the governing standard and requested material scope. Keep the class requirement separate from wall-schedule requirements so the proposed tee can be assessed against a complete design specification.
Identify the Tee and Its Three Interfaces
Request a drawing showing both run ends and the branch connection, with the model linked to the quotation. Give the nominal size and mating pipe outside diameter at each interface. Define the required branch relationship and the dimensions needed for installation. Confirm that the selected model represents the requested tee before relying on a single size selection. Specify the actual weld connection and end preparation instead of assuming a particular joint style from a general welding label.
Separate Class Designation from Wall Schedule
Identify the applicable class standard and the material-dependent basis for the required designation. Define the wall-schedule convention independently and request the actual thickness mapping for each selected connection. Where STD or SCH80 is requested, establish the corresponding dimensional scope rather than treating either label as a direct pressure rating. Name the exact steel grade, and obtain manufacturing records if forged construction is a project requirement.
Complete the Joint and Service Design Review
Provide the fluid composition, operating pressure and temperature, together with fabrication requirements for the welded assembly. Request material, dimensional and design documentation supporting the selected tee and its joints. State any coating requirement separately from pressure or corrosion-service qualification. Finalize the enquiry with the approved three-interface drawing, grade, production evidence, standard-defined class basis, wall mapping and documented operating limits so each design requirement can be checked against the same proposed configuration.
Información técnica para cada consulta
Prepare los requisitos antes de confirmar el producto.
La página es el punto de partida. Planos, muestras, interfaces, materiales, cantidades y criterios de aceptación se revisan antes de confirmar stock o fabricación.
Comente este producto en el contexto de su proyecto.
Comparta plano, muestra, referencia, cantidad y aplicación. Los puntos desconocidos pueden quedar abiertos para revisión.
