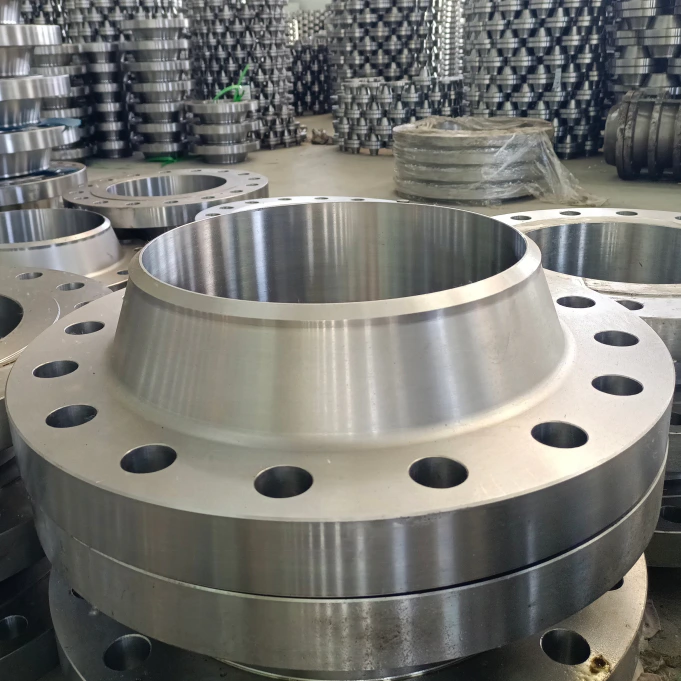

ASTM A182 F44 Flange for Industrial Equipment
Para compras industriales
Prepare una RFQ más clara
Incluya estos datos para que RELIA comprenda la pieza y pueda acordar el siguiente paso.
- Plano, muestra o norma de referencia
- Calidad del material y proceso preferido
- Dimensiones, tolerancias y acabado superficial
- Aplicación, cantidad objetivo y destino
Los plazos de producción, el embalaje y el envío se confirman para cada proyecto tras acordar especificaciones y condiciones comerciales.
-
Surface TreatmentPolishedApplicationIndustrial Equipment
-
Bolt Hole Diameter1/2"Bolt Hole Quantity4
This industrial flange listing uses ASTM A182 F44 and Super Duplex wording in its title. The selectable materials are broader generic categories, without a dedicated option for grade F44. Confirm the supplied grade and metallurgical classification from actual material records before relying on the title designation.
Verify the specific material and corrosion requirement
Request the applicable ASTM A182 edition, grade requirements, chemistry, material condition and traceability for the ordered flange. Ask the supplier to explain the F44 and Super Duplex descriptions against those documents. The listing alone does not establish a verified metallurgical classification or product conformity.
Define the process media, concentration and relevant chloride or other contaminant exposure, together with temperature and pressure. Extreme corrosion-resistant wording gives no universal compatibility guarantee. Assess the actual selected material against the intended environment and project acceptance criteria.
Select the flange configuration and drawing
The catalog combines Alloy Steel, Aluminum, Carbon Steel and Stainless Steel with nine flange type labels. Choose the required type explicitly, including its connection, facing, bore and pressure class. These alternatives do not establish equivalent material performance or coverage under a single title-level specification.
Confirm the exact size within the shared 1/2–120 inch range and obtain the selected drilling pattern. The table lists four bolt holes with a 1/2-inch diameter, which should not be applied to every size and flange type. Check thickness, bolt circle, hole count and mating geometry on the approved drawing.
Agree finish and supply acceptance
Polished surface wording needs an agreed finish criterion where relevant; it does not establish passivation or corrosion performance. Review the actual flange, gasket, bolting and operating cycles as a joint. Confirm material and dimensional inspections, marking, preservation, quantity and delivery timing against the final grade and configuration.
Información técnica para cada consulta
Prepare los requisitos antes de confirmar el producto.
La página es el punto de partida. Planos, muestras, interfaces, materiales, cantidades y criterios de aceptación se revisan antes de confirmar stock o fabricación.
Comente este producto en el contexto de su proyecto.
Comparta plano, muestra, referencia, cantidad y aplicación. Los puntos desconocidos pueden quedar abiertos para revisión.
