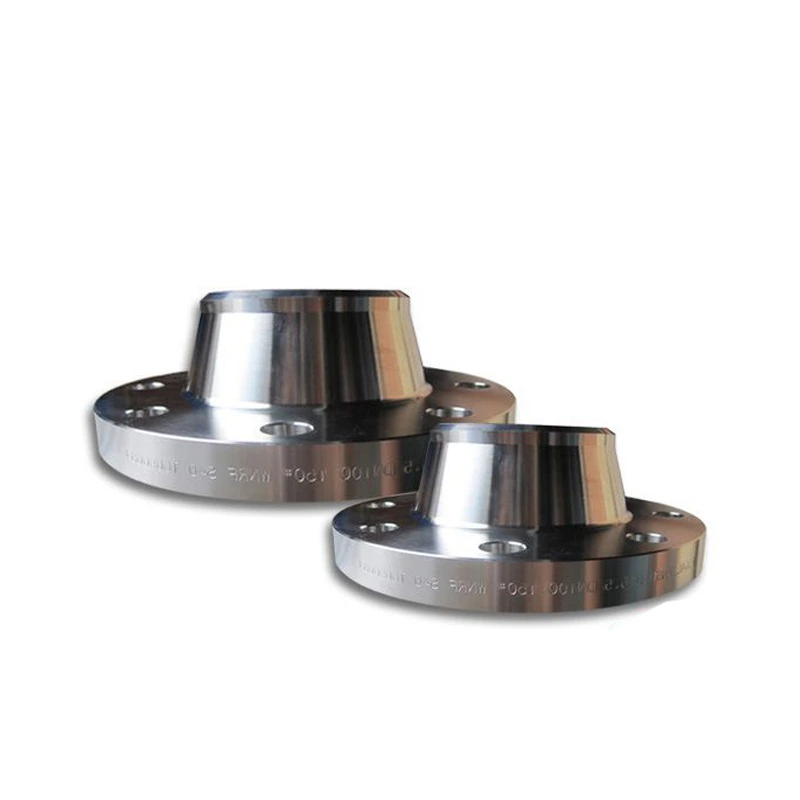

Industrial Flange with Multiple Type Options
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow
This stainless casting/forging flange enquiry includes weld-neck, threaded, slip-on, blind and flat-plate references. Select the delivered construction and its flow or closure function before ordering. Those names do not establish one interchangeable flange or a complete pressure-boundary design.
Choose the construction before dimensions
Fifteen actual Flange variants combine 10 mm, 12 mm, 14 mm, 50 mm and 30 mm labels with Stainless Steel, Alloy or Carbon Steel. Choose one combination and define its nominal or measured size meaning. A material label alone does not select the flange subtype.
Reference images show a linked solid-disk/open-ring piece and an internally threaded drilled component. They cannot certify the supplied construction. Define bore, pipe interface, relevant hub and end preparation for a flow connection; a blind or other closure needs its own accepted design and operating basis.
Coordinate the mating drawing and production
Specify outside diameter, thickness, face geometry and finish, bolt circle, hole count and diameter, and tolerances with the mating assembly. The separate 0.26-inch mounting-hole entry cannot establish the full drilling pattern or nominal size. Customized dimensions require drawing approval.
Confirm the material designation, edition, grade, product condition and inspection traceability. Agree the accepted casting or forging route and obtain its production records. Threaded or welded attachment requirements must match the selected construction. Define painting scope, preparation and functional-surface exclusions without assuming coating performance.
Accept the selected joint for service
Class 150 requires its governing standard and selected material-temperature basis. Provide the actual medium, pressure, temperature, cycling and imposed loads. Agree compatible mating flange, gasket and bolting where relevant, together with installation and inspection requirements. Confirm drawing approval, requested OEM, ODM or OBM scope, and the stated one-year warranty terms before accepting the supplied component.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
