316L Raised Face Flange for Chemical Plants
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
Surface TreatmentPolishedApplicationIndustrial Equipment
-
Bolt Hole Diameter1/2"Bolt Hole Quantity4

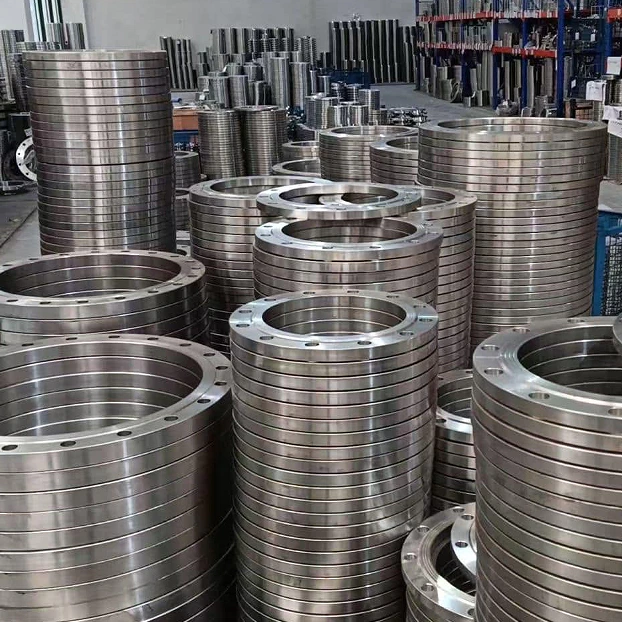

This customized stainless steel flange listing describes a 316L raised face design for chemical industry use. Forged, ANSI and Polished references also appear in the title. Confirm the actual flange type and facing drawing before specifying the material and inspection requirements for the intended chemical plant connection.
Define the raised face and selected flange type
Raised face describes a facing requirement rather than identifying one of the selectable flange types. Choose the intended component, then request its face height, diameter, finish and mating-joint requirements on the drawing. Do not assume every listed type uses the same facing arrangement.
Review nominal size, thickness, bore or closure geometry and the details specific to the connection. Check the complete drilling pattern against the mating equipment. Four half-inch holes appear in the table and title, but require confirmation for the selected component rather than automatic use across the shared 1/2–120 inch range.
Agree the material and customization evidence
Request actual material records supporting grade 316L, including condition and traceability. The generic Stainless Steel choices do not independently establish that designation. Confirm the required production and inspection package instead of treating Forged wording as supplied evidence of conformity.
Identify the numbered specification, edition and pressure designation behind the ANSI reference where applicable. Agree the customized drawing revision, dimensions and inspection criteria. Polished does not provide a measured face finish or establish mating-gasket acceptance, and the broad listing range does not confirm every customized combination as available.
Describe the chemical plant conditions
Provide the chemical, concentration, contaminants, temperature, pressure, cycles and loads for review. Assess the actual material, facing and joint under those requirements without assuming general chemical compatibility or corrosion immunity. Confirm material and dimensional inspections, required records, marking, preservation, quantity and delivery for the chosen configuration.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
