Painted Forged Steel Tee for Pipework
工业采购项目
准备更清晰的 RFQ
请提供以下信息，帮助 RELIA 理解零件要求并与您确认下一步。
- 图纸、样品或参考标准
- 材料牌号和首选工艺
- 尺寸、公差和表面处理
- 应用、目标数量和目的地
生产周期、包装和运输条款将在规格与贸易条件确认后按项目确定。
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPaintingPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size

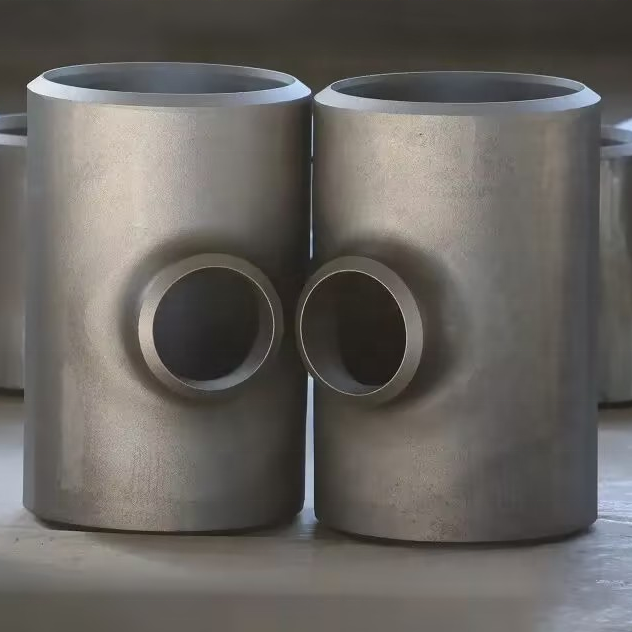

This painted steel tee listing includes socket weld, B16.5 and Class 1500 references in the title. Its original image supports a tee form, while the selectable options are labeled Reducer. Confirm the exact proposed component and the applicability of those standard and class references before ordering.
Verify the proposed component and class basis
Ask the supplier to demonstrate which component specification and edition apply to the actual tee. The B16.5 and Class 1500 wording should be checked against its drawing and required conformity records. It does not establish a verified tee design or numerical operating rating by itself.
Identify the selected order option and its relationship to the pictured tee. The 1/2–110 inch range is broad listing information rather than proof that every size or class combination is available. Confirm the actual configuration before using that range in the purchase specification.
Define branch dimensions and socket requirements
Provide run and branch sizes, outside diameters, wall requirements and center-to-end dimensions. Equal in the table does not supply those measurements. Confirm the actual socket construction, pipe fit and applicable welding inspections; the image cannot verify socket geometry or the acceptance of a particular connection.
Agree drawing units and tolerances beyond Customized Size and Metric entries, and clarify Hexagon wording. Request material grade, condition and traceability records for the Carbon Steel or a234wpb labels, with production evidence supporting FORGED. Specify paint coverage, chemistry, thickness and inspection criteria rather than assuming performance from Painting.
Approve actual piping duty and records
Describe the medium, contaminants, pressure, temperature, cycles, transients and loads. High Pressure and Other class provide no numerical allowable envelope. Confirm material, dimensional, end and paint inspections, documentation, marking, preservation and delivery for the approved tee. Agree OEM requests and warranty terms separately from technical service acceptance.
每个产品询价都需要的技术信息
在最终确认产品前先整理需求。
产品页只是起点。在确认库存匹配或定制生产前，我们会评审图纸、样品、接口、材料、数量及验收要求。
结合您的项目场景讨论该产品。
提供现有图纸、样品、参考件、目标数量及应用信息。尚不确定的项目可留待评审。
