Stainless and Carbon Steel Forged Weld Neck Flange Enquiry

• Surface Treatment

  black
  Application

  Other
• Bolt Hole Diameter

  1/2"-24"
  Bolt Hole Quantity

  6

This forged weld neck flange enquiry presents stainless and carbon steel wording with five actual construction choices. All variants share one combined alloy/carbon/stainless material label and one broad size range. Confirm a single supplied material, exact nominal size and accepted construction before assessing the mating joint.

Resolve the combined labels into one supplied selection

Integral Flange, Weld Neck Flange, Slip On Flange, Socket Weld Flange and Threaded Flange are five actual type variants. They do not create fifteen independently selectable material/type combinations. The shared range is one option without individually selected nominal diameters or evidence of availability at every size.

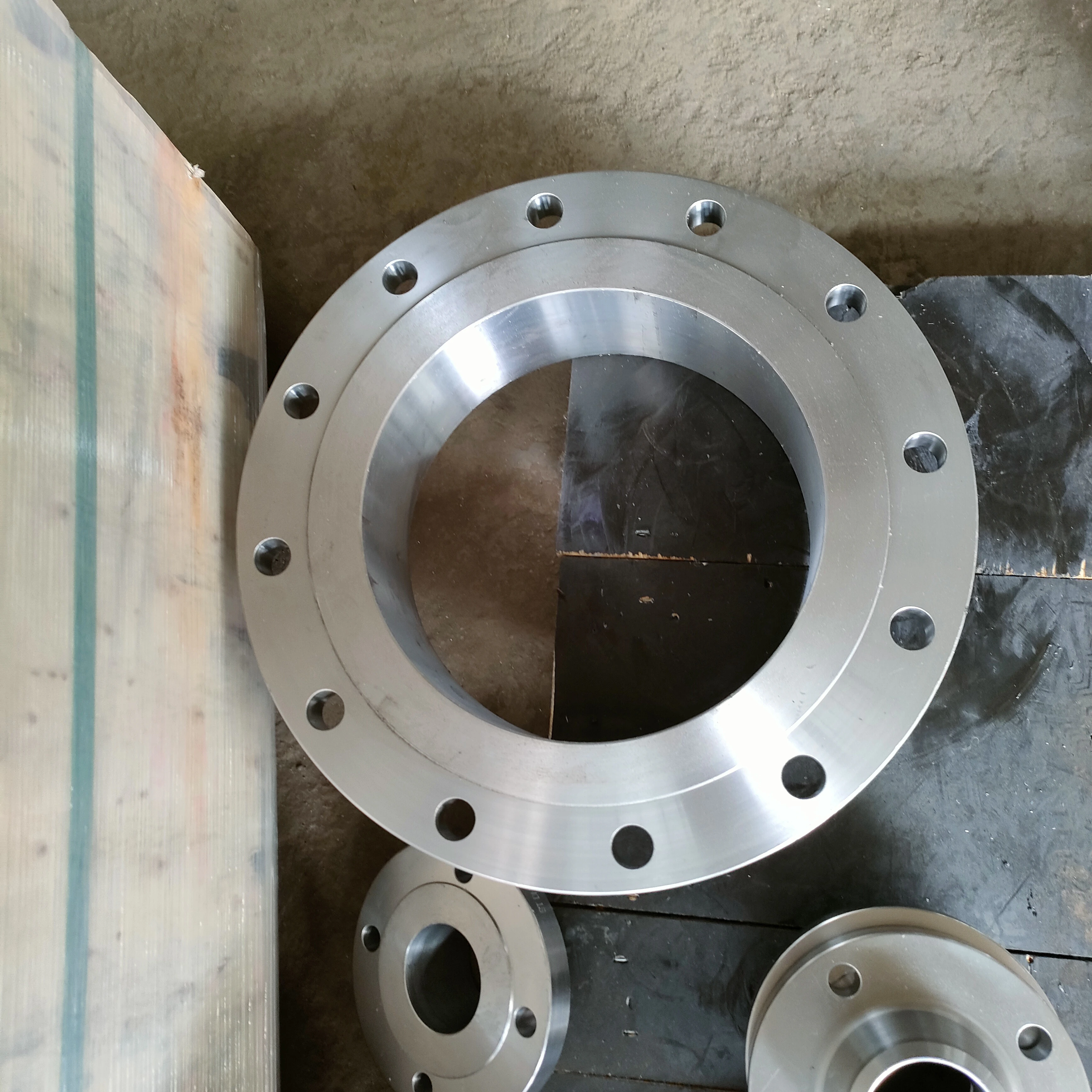

Obtain the actual product material specification, exact grade, matching heat traceability and manufacturing/inspection records for forged supply. No particular stainless alloy or carbon steel grade is established. Metallic open-flange photographs cannot certify selected material, manufacturing route or the retained black surface label.

Accept the complete drawing for the chosen construction

Define nominal size basis, bore, wall, outside diameter, thickness, facing, bolt circle, hole diameter/count/spacing and tolerances. The bolt-hole range and listed quantity do not establish a selected pattern and must not be treated as pipe size. Match the gasket, fasteners and actual mating flange.

Specify the actual joining arrangement. Neck or slip-on supply needs accepted weld and end details; socket supply needs accepted socket and pipe fit; threaded supply needs exact form, size, gender, gauging and sealing acceptance. Integral construction requires its actual body/interface definition. Obtain a selected drawing rather than using one example appearance for every type.

Document surface and pressure-temperature acceptance

Confirm the governing numbered standard, edition, pressure designation and material-temperature basis. Black identifies no coating chemistry or corrosion protection. Other application does not name an approved medium. Qualify actual medium composition, temperature, pressure cycles and the complete flange/joining assembly. Enquire with one type/material/size selection, full drawing, certificate, manufacturing and surface requirements, duty and inspection acceptance.
