3-Inch Bolted Flange for Water and Oil

• warranty

  3 Years
  customized support

  OBM, ODM, OEM
• model number

  PPF-PH
  Technic

  Mould
• Connectivity

  Bolted
  shape

  Equal
• head code

  Round
  Overall Length

  1/8"-6"
• Height

  1/8"-6"
  Surface Treatment

  Polishing
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  1/8"-6"
  Pipe Features

  No additional Features
• Pipe Class

  150
  Application

  building water supply and drainage, fire protection systems, natural gas pipeline installation, natural gas & petroleum industry, natural gas transportation, water supply and drainage systems
• Thread Types

  NPT OR BSPT

A three-inch Class 1500 bolted flange enquiry needs more than matching product wording. For this ANSI/ASME B16.5 and ASTM A350 LF2 enquiry, agree the supplied material and complete joint configuration before accepting dimensions or operating capability.

Specify one class for the three-inch joint

Identify the required flange type, nominal size, applicable B16.5 edition and class on the purchase drawing. Class 1500 and Class 150 must not be treated as interchangeable selections. Establish the accepted material and temperature basis for the requested rating; low-pressure terminology does not provide a numerical operating limit.

A size choice of None does not select the three-inch configuration. Request the bore, outside diameter, thickness, facing, bolt circle, hole count, hole diameters and tolerances. Repeated inch ranges cannot replace the approved drilling and mating-interface details.

Confirm material for every supplied component

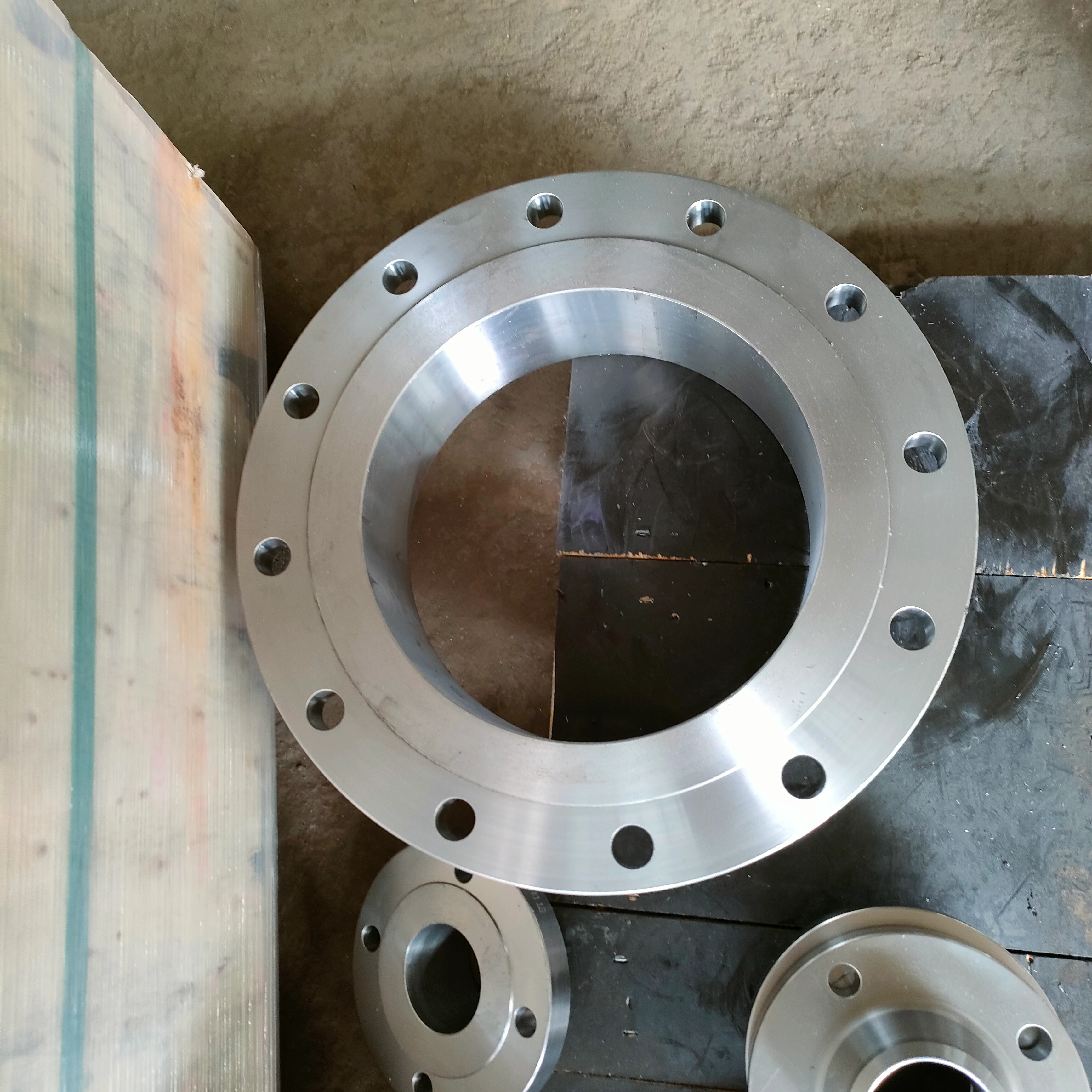

Resolve the intended supplied material before ordering against stainless-steel or A350 LF2 naming. Where Polypropylene or PP choices are considered, identify the polymer specification and any separate backing or support materials. Request traceable documentation for the accepted configuration rather than using a photograph as material evidence.

Define the production route and polished finish requirements for the relevant components. Neither finish appearance nor general manufacturing wording certifies corrosion resistance, sealing performance or standard compliance. Any NPT or BSPT requirement should identify the exact threaded part separately from the bolted flange interface.

Evaluate water and oil service as a complete assembly

State the fluid composition, pressure, temperature, cycling and imposed loads for the actual project. Agree compatible mating parts, gasket, fasteners, support and assembly requirements together. Fire-protection, drainage or gas enquiries need their own acceptance criteria. Use PPF-PH as a quotation reference and confirm the scope of any customization and three-year warranty terms.
