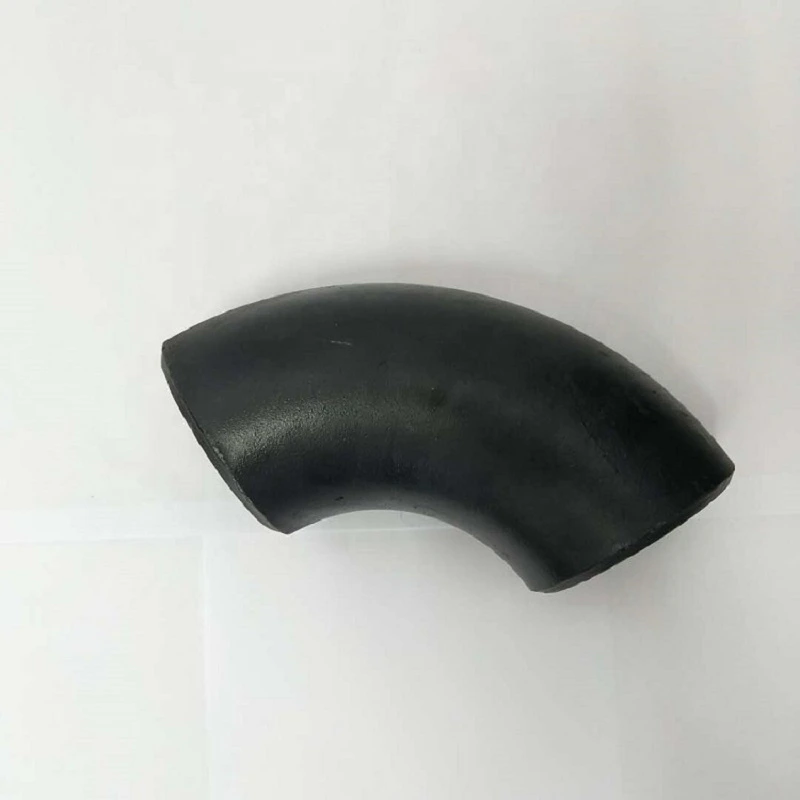

Forged Steel 90-Degree Elbow for Construction

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This construction engineering listing describes a forged steel 90-degree elbow with a smooth surface and a socket weld reference. Its selectable material is Carbon Steel. The actual end arrangement, grade and operating requirements need confirmation before the component is matched to the project piping.

Confirm what the socket weld reference describes

Socket Weld appears in the title, while the table includes Welding and NPT. Obtain the actual end drawing to resolve these descriptions rather than treating them as one connection design. Specify the socket and pipe-fit requirements or thread details that apply to the supplied component.

Define nominal size, outside diameter, wall thickness, bend radius, angle and center-to-end dimensions. The 1/2–12 inch pipe-size option is not a dimensional drawing. Its repetition under length, height and mounting-hole diameter should not be used to assign those measurements, and Hexagon wording needs clarification for the proposed elbow.

Request forging, material and finish evidence

Specify the required carbon steel grade, condition and traceability, with the manufacturing and inspection records needed for acceptance. FORGED is listed but provides no actual production certificate. Confirm the drawing and component specification rather than inferring material properties from the generic steel description.

Agree measurable surface criteria and any required treatment. Smooth and Corrosion Resistant wording does not identify coating chemistry, roughness or corrosion performance. Review the actual finish package and inspection requirements for the intended environment without assuming that a resistance phrase supplies a service guarantee.

Establish the construction piping envelope

Describe the medium, contaminants, pressure, temperature, transients, cycles and relevant loads. Low Pressure and Not Rated leave the numerical allowable envelope unestablished. Assess the selected elbow and joint under the project requirements, then agree dimensional, end and surface inspections, records, marking, preservation and delivery. Clarify OEM requirements and warranty terms separately.
